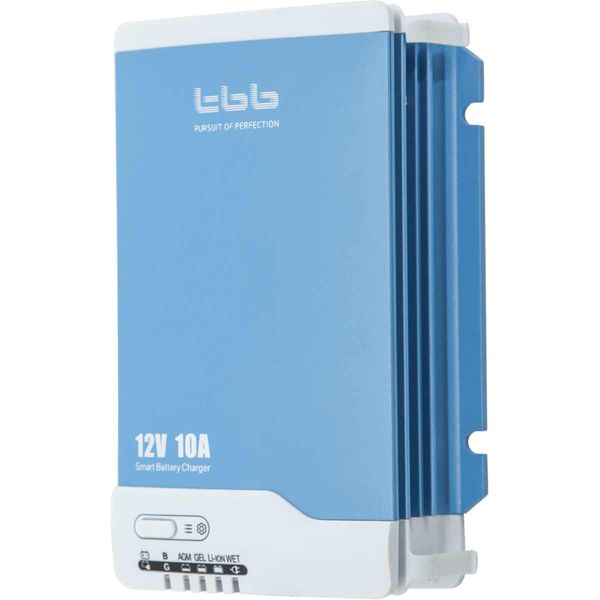

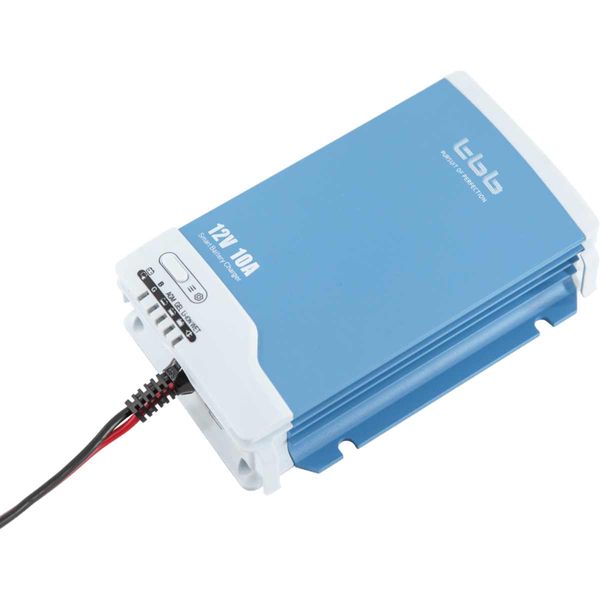

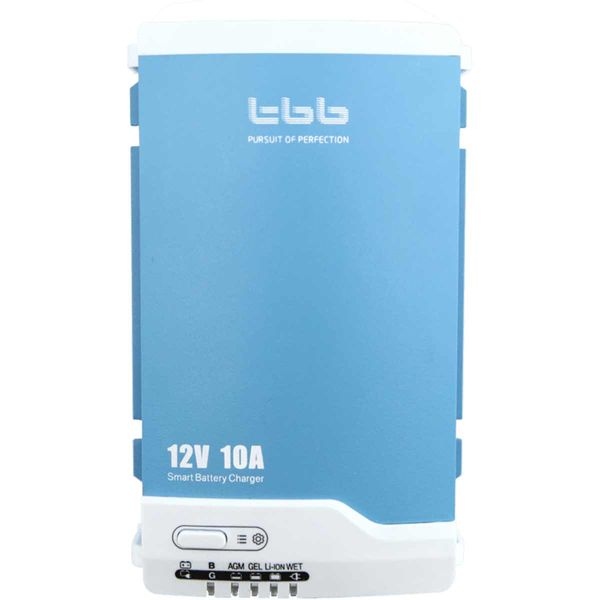

TBB Trident smart, compact and innovative battery charger looks after your on board batteries.
The range of Trident battery chargers from TBB Power is very stylish, compact and feature packed to ensure they meet all the demands for modern battery charging. The BS1210 is designed to be highly efficient (up to 88%) allowing it to be a fanless and therefore silent in use.
Multi functional smart buttons allows easy programming of the charger for battery type and mode (charging or power supply) Output battery cables of 1.2M are integrated into the charger with crocodile/ring connection option. The AC input cable is also integrated making set up quick and easy.
Built in voltage compensation and temperature compensation via the included temperature sensor ensure the most accurate and efficient charging of your battery no matter the chemistry type – The BS range provides 5 step charging profiles for AGM, GEL, wet lead acid and specific profile for Li-ION batteries.
Input Voltage: 85V AC – 265V AC
Output Voltage (Absorption): AGM: 14.4V, GEL: 14.1V, LFP: 14.4V, WET: 14.7V
Output Voltage (Floating): AGM: 13.5V, GEL: 13.5V, LFP: 13.5V, WET: 13.7V
Power Supply mode: 13.5V DC
Charging current: 10A
Efficiency: 88%
Minimum battery voltage: 1V
Cooling: Convection
Case: Aluminium & plastic
IP Rating: IP22
Operating Temperature: -20°C to +60°C
Dimensions: 175mm x 114mm x 53mm
Weight: 1kg
