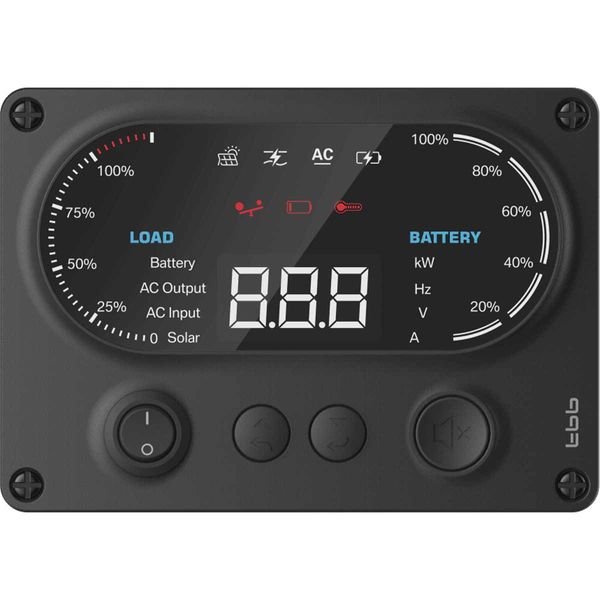

TBB Power MCK remote display to monitor, configure and control TBB Kinergier Pro bi-directional inverters.
The MCK remote display is designed to provide remote functions to the Kinergier range of inverter chargers. Easily connected to the Kinergier via the "CommMON" port and using the supplied cable, the MCK provides the user with basic information including:
- Battery voltage
- Battery current
- Battery State of charge (SOC)
- Inverter load percentage
- AC input/output voltage, current, frequency and power
The MCK can also be used to make the following basic configuration changes to the Kinergier without having to connect to PC via TBB link software Charging absorption voltage:
- Charging float voltage
- Max charging current
- Output voltage (inverter)
- Output frequency (inverter)
- AC input rating
Distance between fixing centres: 100mm x 68mm
Colour: Black
Connection cable to Kinergier: RJ45 5 metres
