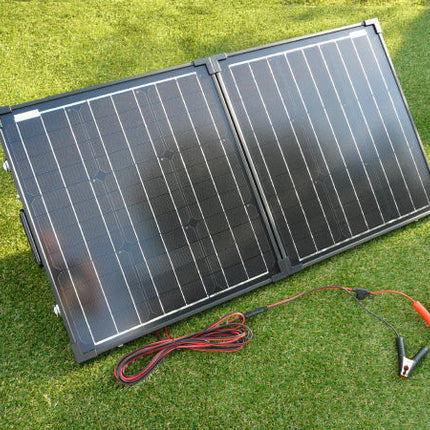

Sunshine Compact - Portable Solar Panel Kit 80W 12V
Sunshine Compact - Portable Solar Panel Kit 80W 12V
If you are looking for a portable solar power solution look no further than the Sunshine Compact range with unrivalled performance. Unlike other similar folding solar kits that have the solar regulator stuck on the back of the solar panel exposed to the elements and too far away from the battery to effectively monitor the state of charge, the Compact range's solar regulator is positioned in the dry close to the battery for maximum performance and reliability.
he Sunshine Compact 80W Solar Power Kit benefits from a foldable design. The kit comes complete with everything needed for quick easy setup and safe charging of 12 volt batteries of all types. Perfect for Caravans & Motorhomes when running on battery power only.
The Sunshine Folding Power Kit comprises of two robust 40W solar panels linked together by cables and hinges, attached to each panel is a foldable stand. The charge regulator supplied insures the battery is protected from overcharge and over-discharge at all times.
With a Sunshine Compact - Portable Solar Panel Kit 80W 12V you could expect to generate around 23 amps per day during the summer months.
Features
- 2 x Sunshine Solar Panel Monocrystalline 40 Watt 12 Volt
- 1 x Sunshine Charge Regulator 12V - 7AMP
- 1 x 5M Extension Cable - Croc Clips to SS Connector

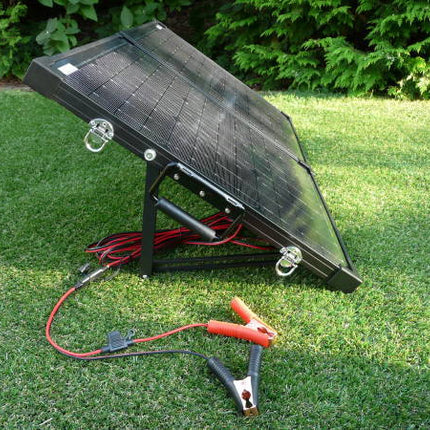

- Integrated stand
Solar Panel Specifications
- High Performance Bosch Monocrystalline Cells
- Peak power (Pmax): 80Wp
- Power tolerance range(%): ±3%
- Open circuit voltage / Voc(V): 21.6
- Max.power voltage / Vmp(V): 17.5
- Short circuit current / Isc(A): 4.94
- Max.power current / Imp(A): 4.58
- Max.system voltage(V): 600V DC
- Folded Dimensions (mm): 505 x 550 x 60
- Weight(kg): 9.0
Guaranteed Performance
- 5 Years Manufacturers Warranty
- 10 Years Warranty 90% Power Output
- 20 Years Warranty 80% Power Output
