Sargent AC-DC 3 Stage batter Charger PXC360

Description

The PXC360 is a 360W 3-stage intelligent battery charger and power supply with LCD display and CAN Bus connectivity.

The PX360 multi-stage battery charger is designed for leisure vehicle applications, providing power for both battery charging and 12 volt appliances.

The integrated LCD display shows battery charging status and provides setup for different battery chemistries.

A PSU mode allows the charger to be used without a battery fitted and the Silent mode avoids noise during overnight charging.

CAN Bus connectivity also enables the charger to integrate with Sargent power systems and display information on the control panel screen.

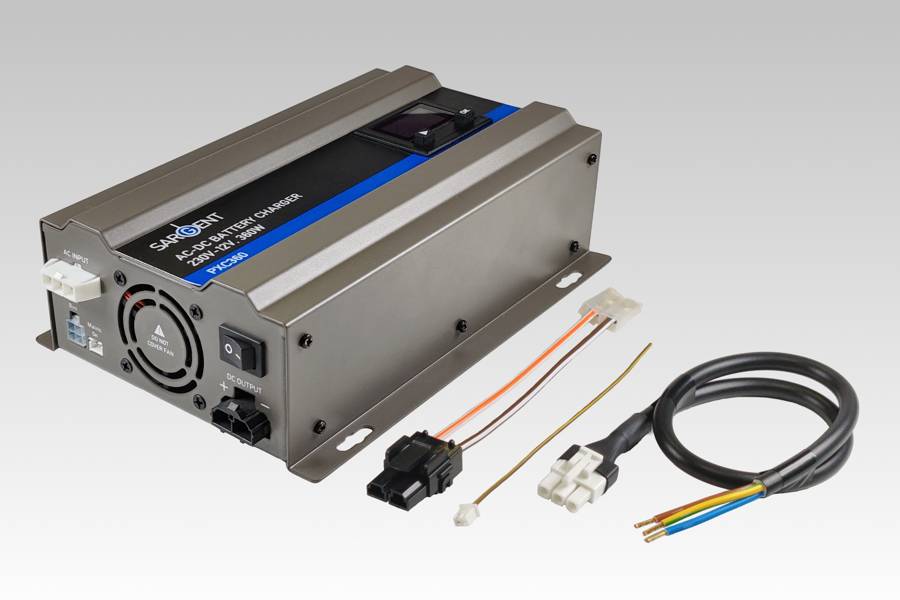

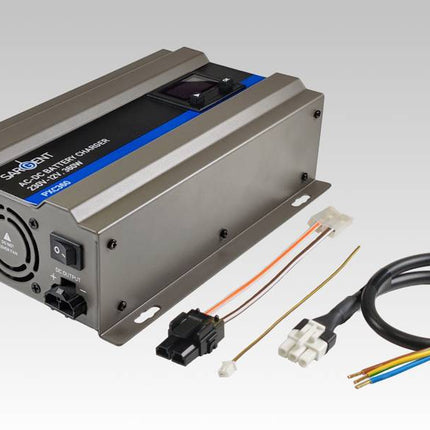

If replacing a manufacturer fitted PX300, please order the appropriate conversion harness, as connections on the PXC360 are different.







Specification

  • Power

    360W (max)

  • Input voltage range

    200 - 240VAC

  • Charging Current

    25A @14.5V (max)

  • Boost Voltage

    14.7V (max)

  • Float Voltage

    13.8V (max)

  • Compatible batteries

    Flooded, Gel, AGM, Lithium

  • Battery size

    90 - 300Ah

  • Cooling method

    Intelligent fan with Silent Mode

  • Communication

    CAN Bus

  • Dimensions (LxWxH)

    221 x 157 x 69mm

  • Weight

    1.59kg

Read more

Sargent AC-DC 3 Stage batter Charger PXC360

Product form

£219.99 Incl. VAT

The PXC360 is a 360W 3-stage intelligent battery charger and power supply with LCD display and CAN Bus connectivity. The... Read more

Free pickup in our shop(s)

SKU: PXC360-KIT

5 in stock

    • Brand SARGENT

      Description

      The PXC360 is a 360W 3-stage intelligent battery charger and power supply with LCD display and CAN Bus connectivity.

      The PX360 multi-stage battery charger is designed for leisure vehicle applications, providing power for both battery charging and 12 volt appliances.

      The integrated LCD display shows battery charging status and provides setup for different battery chemistries.

      A PSU mode allows the charger to be used without a battery fitted and the Silent mode avoids noise during overnight charging.

      CAN Bus connectivity also enables the charger to integrate with Sargent power systems and display information on the control panel screen.

      If replacing a manufacturer fitted PX300, please order the appropriate conversion harness, as connections on the PXC360 are different.







      Specification

      • Power

        360W (max)

      • Input voltage range

        200 - 240VAC

      • Charging Current

        25A @14.5V (max)

      • Boost Voltage

        14.7V (max)

      • Float Voltage

        13.8V (max)

      • Compatible batteries

        Flooded, Gel, AGM, Lithium

      • Battery size

        90 - 300Ah

      • Cooling method

        Intelligent fan with Silent Mode

      • Communication

        CAN Bus

      • Dimensions (LxWxH)

        221 x 157 x 69mm

      • Weight

        1.59kg

      Read more
