The PX310 (replacement for PX300) is a 300W 3-stage intelligent battery charger and power supply with LCD display.
DOWNLOAD USER GUIDE
DOWNLOAD DATASHEET
|
| The PX310 multi-stage battery charger is designed for leisure vehicle applications, providing power for both battery charging and 12 volt appliances. |

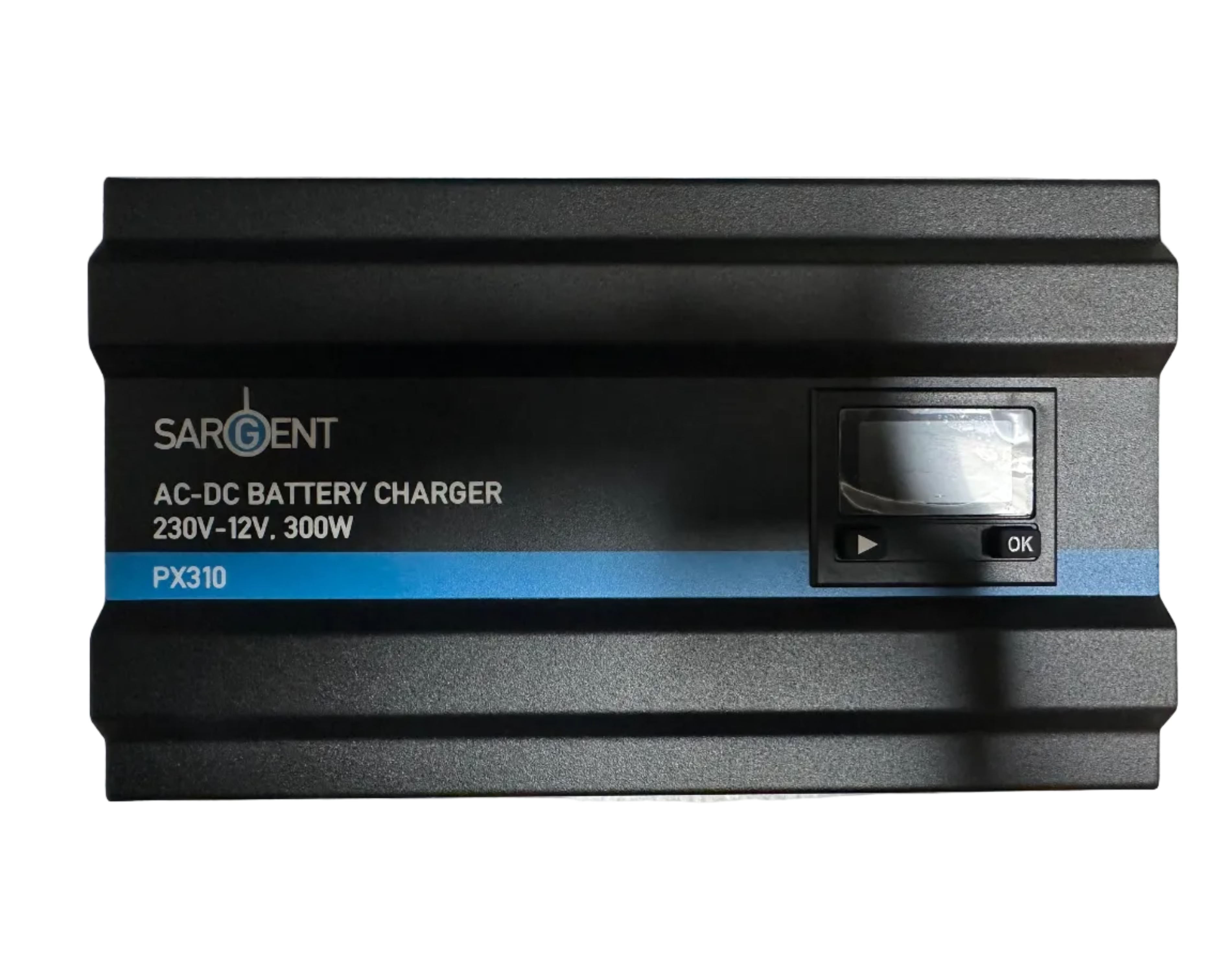

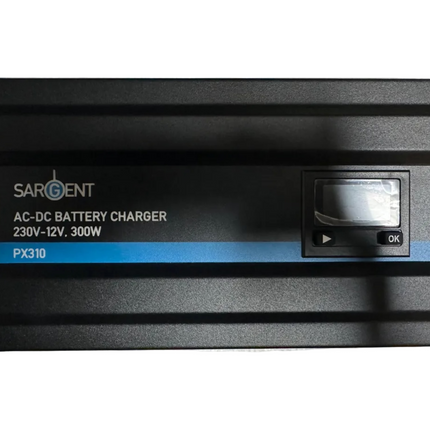

| The integrated LCD display shows battery charging status and allows setup for different battery chemistries. |
| A PSU mode allows the charger to be used without a battery fitted and the Silent mode avoids noise during overnight charging. |

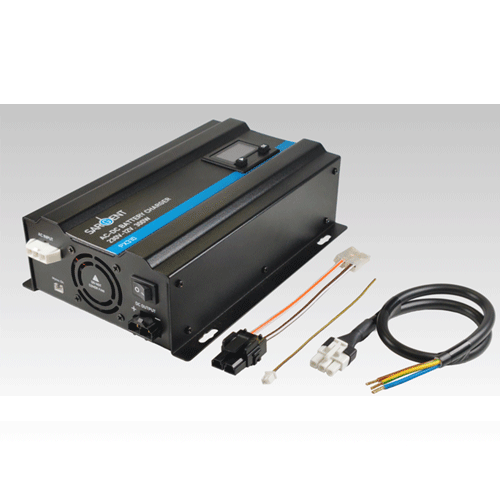

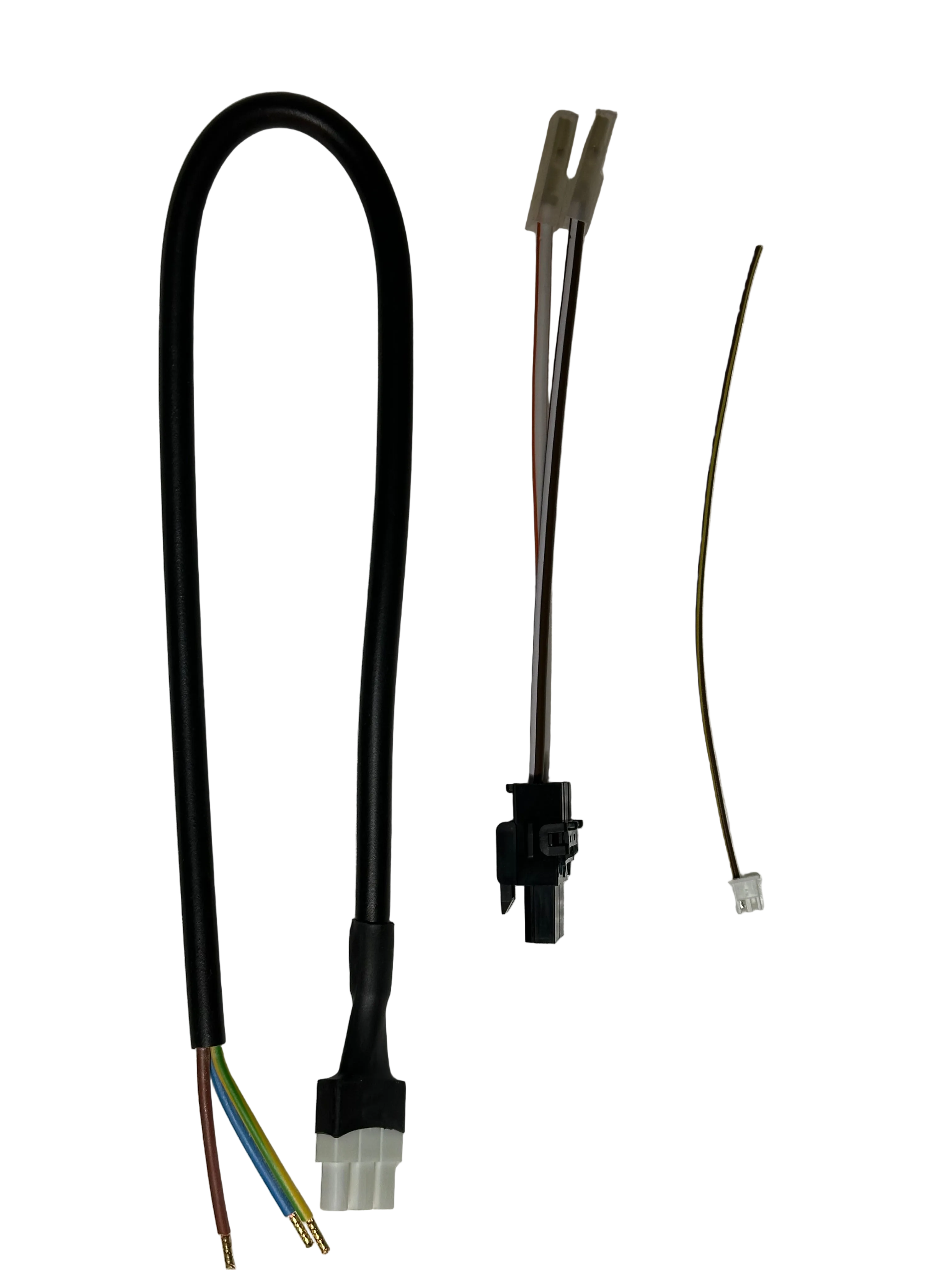

| Supplied with connecting cables |
|
| Power - 300W (max) |
| Input voltage range - 200 - 240VAC |
| Charging Current - 20A @14.5V (max) |
| Boost Voltage - 14.7V (max) |
| Float Voltage - 13.8V (max) |
| Compatible batteries - Flooded, Gel, AGM, Lithium |
| Battery size - 70 - 220Ah |
| Cooling method - Intelligent fan with Silent Mode |
| Dimensions (LxWxH) - 221 x 157 x 69mm |
| Weight - 1.55kg |
