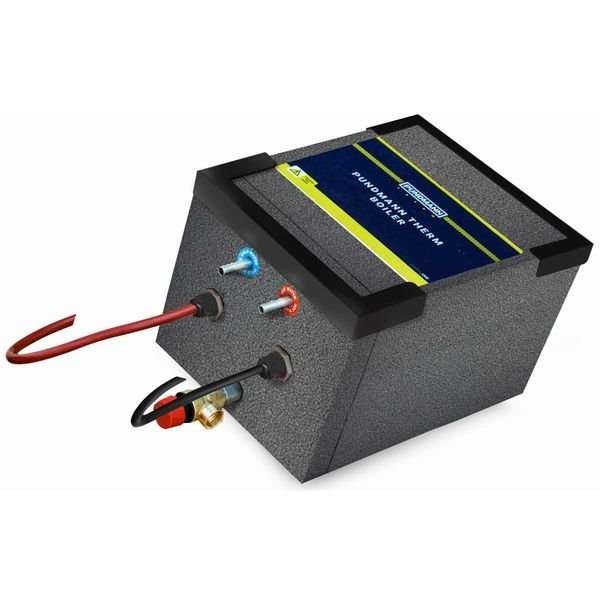

The Pundmann camper van 3L water heater is designed to bring creature comfort to camper adventures. Every unit is built to last and individually bench tested to ensure long term performance and safety.
The off-grid units are all compact and easy to install for efficient use of small spaces as well as safe and stable. Perfect for campervans, motorhomes, caravans, boats, off grid locations, service vehicles, mountain top cabins, sandy shored beach huts, long distance lorry drivers and even the shed at the end of your garden.
These electric water heaters are uniquely compact and narrow so they fit in the wardrobe of VW Campervans such as T4, T5 or T6.
Designed to heat up as you travel to your adventure, and fully compatible with solar power for the greenest hot water! Heats your water to 60°C in as little as 50 minutes.
Well supported by our team for customer support and technical advice. Underpinned by a 3 year warranty.
Key Features
Twin immersion heater rods, 12V 180W and 230V 250W fitted with 5A 3-pin plug
Insulated 316 stainless steel welded tank with high quality stainless heating rods
Designed for safe use up to 2.3bar
Supplied & fitted with a 3 bar hot water safety pressure release valve
Designed to be compact & straight forward to install
Engineered to provide excellent service
3 Year return to base Warranty
| Brand |
Pundmann |
| Voltage Description |
12V DC & 230V AC |

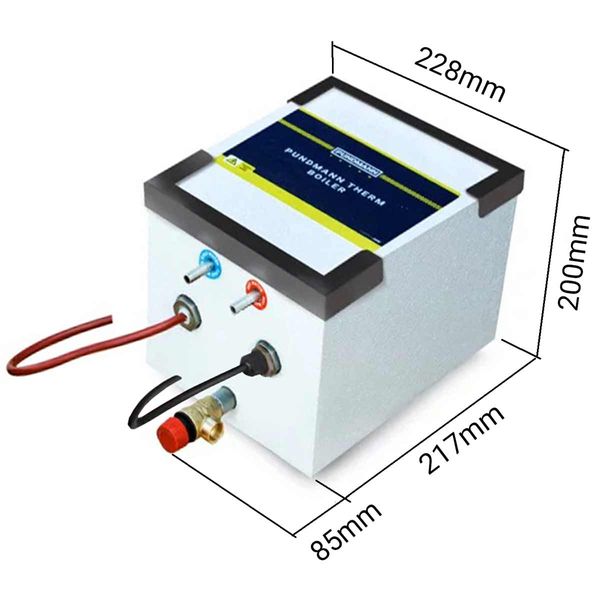

| Height Description |
200mm |
| Width |
228mm |
| Length |
Heater: 217mm, Connections: 85mm |
| Material |
Insulated 316 stainless steel welded tank with high quality stainless heating rods. |
| Wattage |
180W at 12V, 250W at 230V |
| Operating Pressure |
2.3 bar Maximum |
| Hose Tail Size |
10mm / 3/8" |
| Pressure Rating |
3 bar pressure relief valve |
| Amps Description |
15A at 12V, 1.04A at 230V |
| Capacity Description |
3 Litres |
| Warranty |
3 Years |
Downloads
pundmann decloration of conformity
pundmann diagrams
pundmann faqs
pundmann wiring plumbing guidelines
