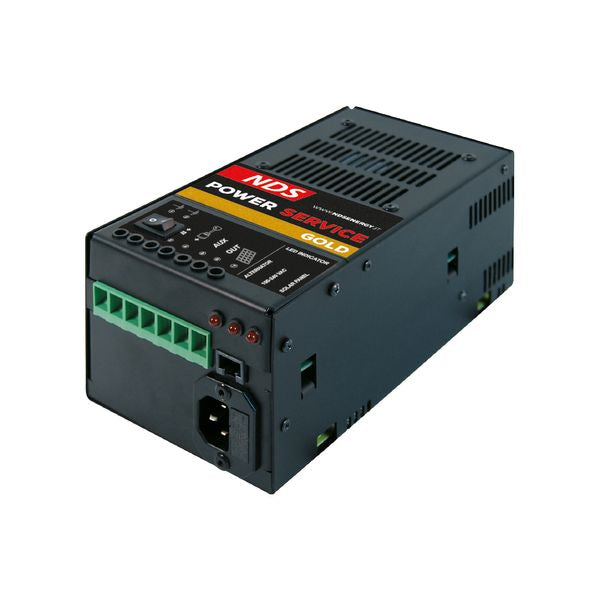

An intelligent charging management station that takes care of your batteries using inputs from your alternator, solar panels and 230V mains supply. Rather than fitting several charge regulating devices to deal with different power sources, the Power Service Gold is a priority switching device and so essentially a B-B charger, solar regulator and mains battery charger all in one. A simple solution that helps avoid conflicts caused by several sources trying to charge one battery at the same time.
• Alternator input: 12V 90A
• Nominal output voltage (V, DC): 12
| Nominal PV Power |
250W |
| Brand |
NDS |
| Voltage Description |
115/230V AC Input, 12V DC Output |
| Model |
GOLD30-M |
| Maximum Output Current [A] |
30A (Alt), 20A (solar, mains) |
| Optional Remote Panel |
Yes |
| Additonal Float Charge Output |
Yes |
| Charge Characteristic |
Automatic |
| Height Description |
99mm (3.9") |
| Width |
228mm |
| Depth |
135mm (5.3") |
| Weight |
1.4 kg |
| Output |
1 Output |
| Application |
FLA, SLA, AGM, GEL Batteries |
| Capacity Description |
Recommended Battery Capacity: 150 - 300 Ah |
| Input |
50-60 Hz |
| External Temperature Sensor |
No |
| Warranty |
2 Years |
