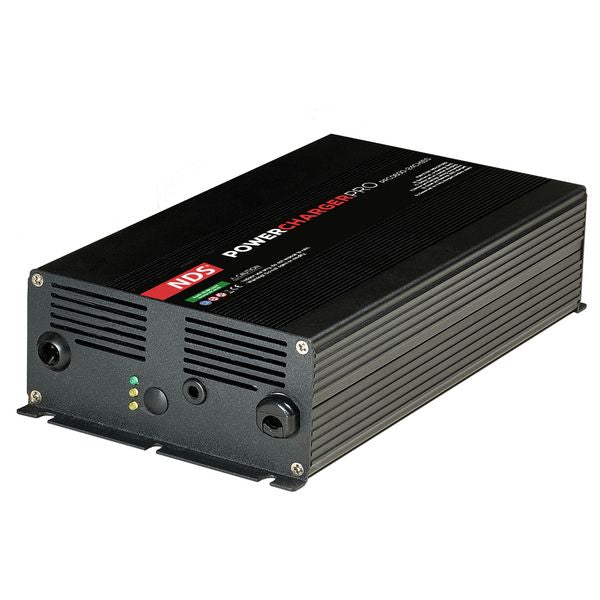

PowerChargerPro chargers from NDS are designed both for traditional and on-board use. The 91% efficiency rate and reliability result from a careful development of the PCBs with components of the highest quality. The microprocessor automatically manages up to 5 steps of charge, optimizing them to always have correct charges whilst preserving the battery life.
Features:
• Circuit with PFC
• 5 steps charge
• Protection over temperature, short circuit and anomalies
• State of charge indicator
• Relay for 'Mains Present' indicator: Yes
• Nominal output voltage (V, DC): 24
| Brand |
NDS |
| Voltage Description |
100-240V AC Input (+-10%), 24V DC Output |
| Model |
PFC600-24CH15S |
| Maximum Output Current [A] |
15 |
| Optional Remote Panel |
No |
| Additonal Float Charge Output |
No |
| Charge Characteristic |
Automatic, Adaptive |
| Height Description |
56mm (2.3") |
| Width |
128mm |
| Depth |
223mm |
| Weight |
1.4 kg |
| Output |
1 Output |
| Application |
FLA, SLA, AGM, GEL, LiFePO4 Batteries |
| Capacity Description |
Recommended Battery Capacity: 80 - 150 Ah |
| Supplied With |
Cables included, mains 1.5m, DC 1.3m |
| Input |
50-60 Hz |
| External Temperature Sensor |
No |
| Warranty |
2 Years |
