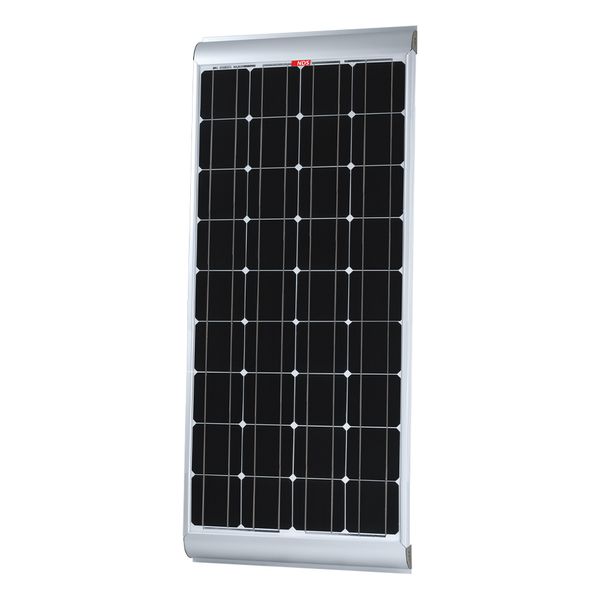

NDS SOLENERGY Solar Panel 100W (1320mm x 530mm)

Description

Key Features

Monocrystalline cells

Easy installation

Built-in brackets with aerodynamic plastic side covers

Aluminium frame

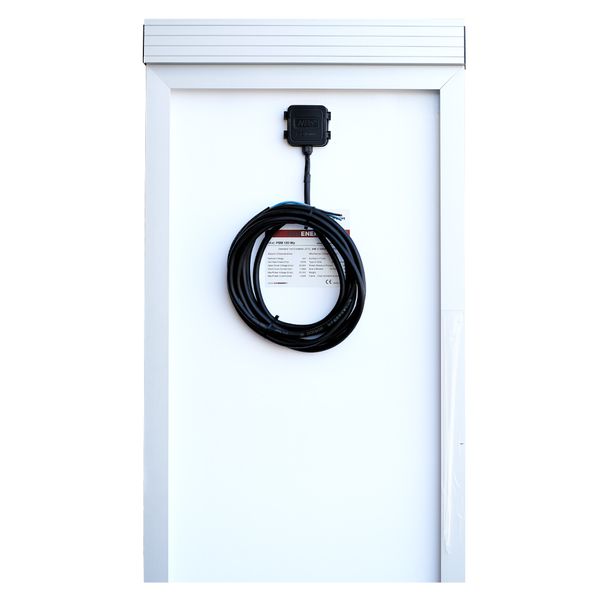

6-meter cable with bipolar connection and all-weather protective outer sheath

A 100W monocrystalline solar panel combining modern photovoltaic construction technology with a simple installation.

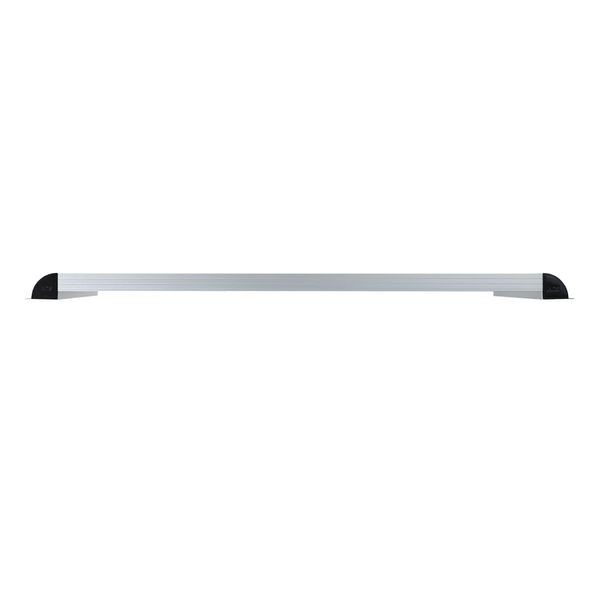

The 1320 x 530mm panel has integrated aluminium brackets with aerodynamic plastic side covers, ideal for safe and simple installation on a motorhome.

The integrated brackets ensure the panel is fixed at an adequate distance from the motorhome (or other mounted surface), which keeps the panel’s cells ventilated to help avoid any loss of performance, even at high operating temperatures.

This monocrystalline solar panel is made up of textured tempered glass and high purity silicon cells coated with a Tedlar foil, all enclosed in two sheets of EVA (Ethylene Vinyl Acetate).

The components used to coat the cells are designed to achieve maximum transmittance and transparency, plus the low iron content and anti-reflective coating increase efficiency to 18.05%.

Special by-pass diodes protect the cells from overvoltages and allow the solar panel to continue working even in the event of shading and accidental breakage of the photovoltaic cells.

From NDS’s SOLENERGY 12V range, this solar panel meets the most stringent quality and safety standards, IEC61215, IEC61730 and ISO9001/ISO14000 certification, and is built to withstand the harshest environmental and pollution conditions.

- Number of cells: 36

- Max power: 100WP±3%

- Open circuit voltage: 23.7V

- Short circuit current: 5.5A

- Max power voltage: 19.57V

- Max power current: 5.11A

- Length 6m cable: 2×2.5mm²

Please Note: NDS Solar Panels come with a 24 month warranty from the date of purchase. Proof of purchase will be required for all warranty claims.

nds rigid solar panel installation instructions

Brand NDS
Voltage Description 12V DC
Height Description 1320mm
Width 530mm
Depth 60mm
Weight 9.5kg
Wattage 100W ±3% maximum
Amps Description Max power current: 5.11A, Short circuit current: 5.5A



NDS SOLENERGY Solar Panel 100W (1320mm x 530mm)

Product form

£228.71 Incl. VAT

Key Features Monocrystalline cells Easy installation Built-in brackets with aerodynamic plastic side covers Aluminium frame 6-meter cable with bipolar connection... Read more

Free pickup in our shop(s)

SKU: PSM100WP.2

5 in stock

    • Brand NDS
    • Shipped today? Order within: Nov 17, 2026 14:00:00 +0000

    Description

    Key Features

    Monocrystalline cells

    Easy installation

    Built-in brackets with aerodynamic plastic side covers

    Aluminium frame

    6-meter cable with bipolar connection and all-weather protective outer sheath

    A 100W monocrystalline solar panel combining modern photovoltaic construction technology with a simple installation.

    The 1320 x 530mm panel has integrated aluminium brackets with aerodynamic plastic side covers, ideal for safe and simple installation on a motorhome.

    The integrated brackets ensure the panel is fixed at an adequate distance from the motorhome (or other mounted surface), which keeps the panel’s cells ventilated to help avoid any loss of performance, even at high operating temperatures.

    This monocrystalline solar panel is made up of textured tempered glass and high purity silicon cells coated with a Tedlar foil, all enclosed in two sheets of EVA (Ethylene Vinyl Acetate).

    The components used to coat the cells are designed to achieve maximum transmittance and transparency, plus the low iron content and anti-reflective coating increase efficiency to 18.05%.

    Special by-pass diodes protect the cells from overvoltages and allow the solar panel to continue working even in the event of shading and accidental breakage of the photovoltaic cells.

    From NDS’s SOLENERGY 12V range, this solar panel meets the most stringent quality and safety standards, IEC61215, IEC61730 and ISO9001/ISO14000 certification, and is built to withstand the harshest environmental and pollution conditions.

    - Number of cells: 36

    - Max power: 100WP±3%

    - Open circuit voltage: 23.7V

    - Short circuit current: 5.5A

    - Max power voltage: 19.57V

    - Max power current: 5.11A

    - Length 6m cable: 2×2.5mm²

    Please Note: NDS Solar Panels come with a 24 month warranty from the date of purchase. Proof of purchase will be required for all warranty claims.

    nds rigid solar panel installation instructions

    Brand NDS
    Voltage Description 12V DC
    Height Description 1320mm
    Width 530mm
    Depth 60mm
    Weight 9.5kg
    Wattage 100W ±3% maximum
    Amps Description Max power current: 5.11A, Short circuit current: 5.5A
