NDS PSM 150WP 360 Solenergy Panel Kit

Description

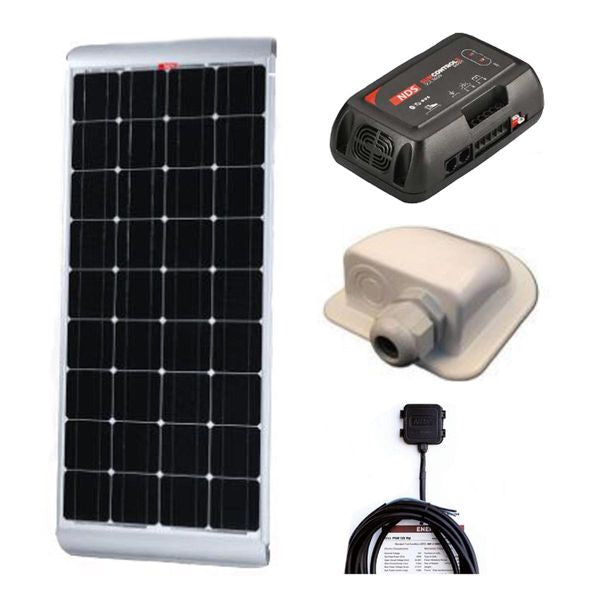

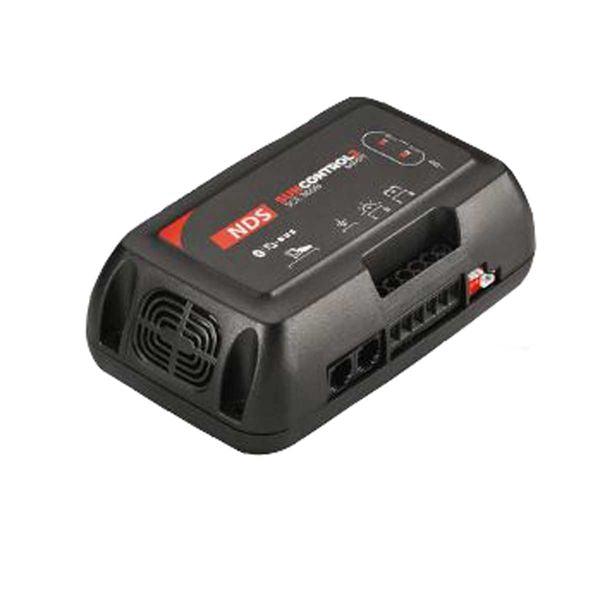

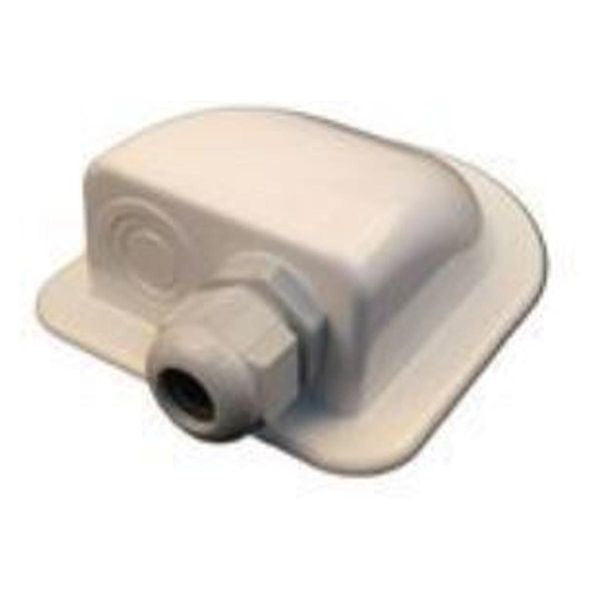

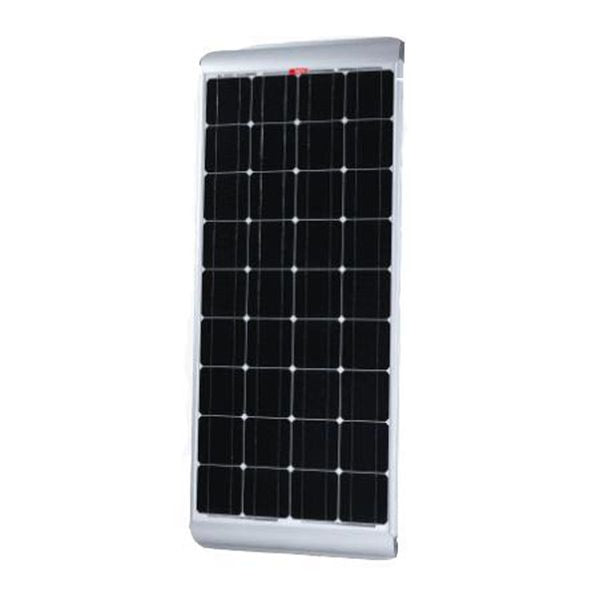

NDS PSM 150WP 360 Solenergy Panels + Sun Control Regulator + Gland + Cable Kit. Solenergy motorhome panels combine modern photovoltaic construction technology with a simple installation. The mounting brackets built into the frame of these ensures adequate distance from the anchoring surface, ensuring the necessary ventilation of the cells and adequate aerodynamics thanks to the rounded corners. Constant ventilation of the cells avoids any loss of performance even at high operating temperatures. This monocrystalline panel is made from high purity silicon cells coated with a Tedlar foil and textured tempered glass all enclosed in two sheets of EVA (Ethylene Vinyl Acetate). The components used to coat the cells are designed to achieve maximum transmittance and transparency, plus the low iron content and anti-reflective coating increase efficiency to 18.05%. Special by-pass diodes protect the cells from overvoltages and allow the solar panel to continue working even in the event of shading and accidental breakage of the photovoltaic cells. The Solenergy 12V solar panels meet the most stringent quality and safety standards which can withstand the harshest environmental and pollution conditions. This kit includes the solar panels, a regulator and a wiring kit with a free gland.

Number of cells: 32

Max Power: 150WP±3%

Features:

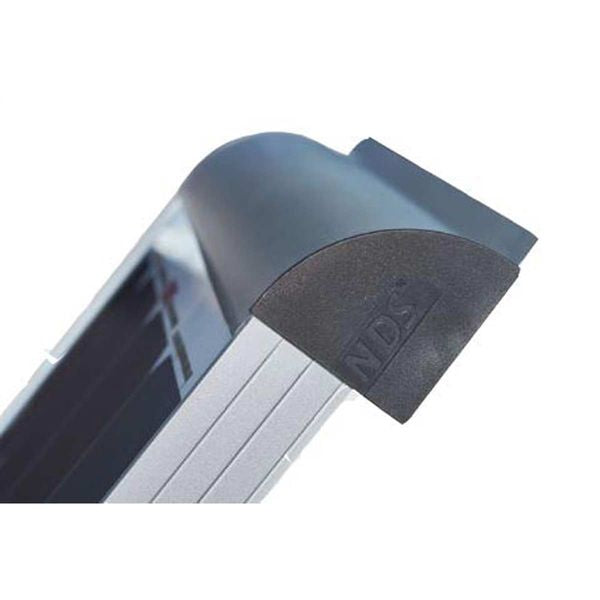

The special aluminium brackets integrated in the panel, with aerodynamic plastic side covers make the robust panel safe, easy and quick to install.

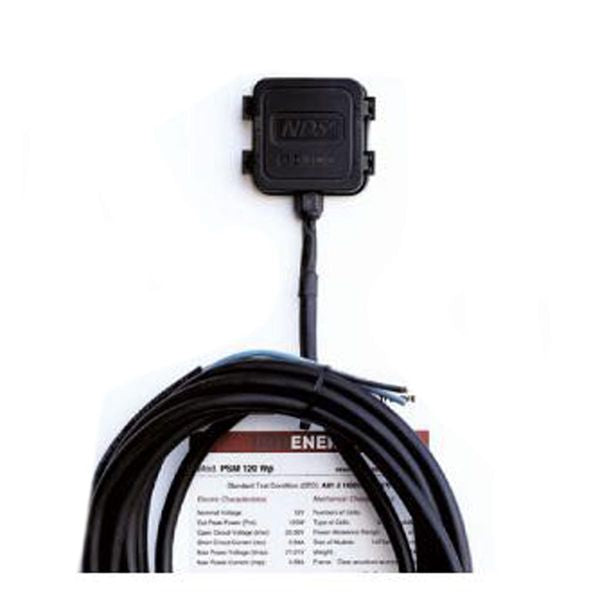

Each panel is equipped with a 6-metre bipolar connection cable with an all-weather protective outer sheath.

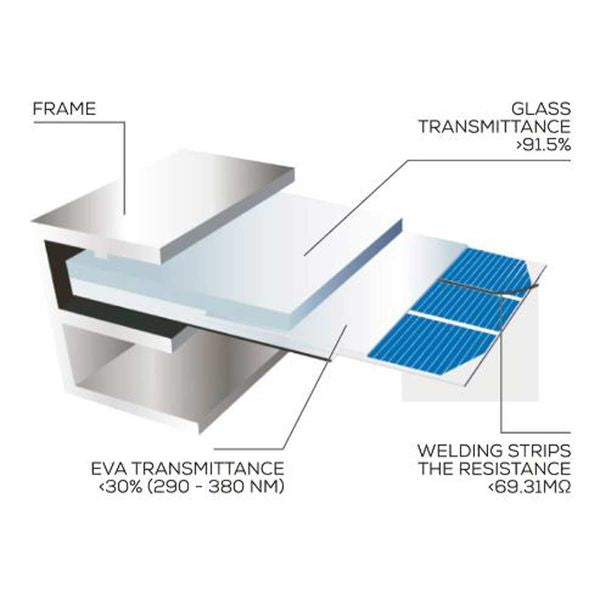

Architecture:

-Aluminium frame

-High transmittance glass: 91.5%

-Low-resistance connection strip: 69.31MΩ

-Eva transmittance: 30% (290-380MN)

Key Features

Constant ventilation of the cells

Withstand the harshest environmental and pollution conditions

Built-in bracket

6m Cable

Rounded corners

Low iron content and anti-reflective coating

Maximum transmittance and transparency



Brand NDS
Voltage Description Nominal voltage: 12V, Open circuit voltage: 20.85V, Max power voltage: 17.23V
Model PSM 150WP
Efficiency 18.05%
Height Description 1475mm (1.475m)
Width 676mm (0.676m)
Depth 60mm (0.06m)
Length Cable: 6m
Weight 12.5kg
Material High purity silicon coated with a tedlar foil and textured tempered glass all enclosed in two sheets of EVA (Ethylene Vinyl Acetate). Aluminium frame, High transmittance glass
Colour Black and Silver
Wattage 150W ±3% maximum
Amps Description Short circuit current: 9.3A, Max power current: 8.71A
Contents Solar panel, regulator, wiring kit

Read more

NDS PSM 150WP 360 Solenergy Panel Kit

Product form

£461.58 Incl. VAT

NDS PSM 150WP 360 Solenergy Panels + Sun Control Regulator + Gland + Cable Kit. Solenergy motorhome panels combine modern... Read more

Free pickup in our shop(s)

SKU: KS150360

5 in stock

    • Brand Letang Auto Electrical Vehicle Parts

      Description

      NDS PSM 150WP 360 Solenergy Panels + Sun Control Regulator + Gland + Cable Kit. Solenergy motorhome panels combine modern photovoltaic construction technology with a simple installation. The mounting brackets built into the frame of these ensures adequate distance from the anchoring surface, ensuring the necessary ventilation of the cells and adequate aerodynamics thanks to the rounded corners. Constant ventilation of the cells avoids any loss of performance even at high operating temperatures. This monocrystalline panel is made from high purity silicon cells coated with a Tedlar foil and textured tempered glass all enclosed in two sheets of EVA (Ethylene Vinyl Acetate). The components used to coat the cells are designed to achieve maximum transmittance and transparency, plus the low iron content and anti-reflective coating increase efficiency to 18.05%. Special by-pass diodes protect the cells from overvoltages and allow the solar panel to continue working even in the event of shading and accidental breakage of the photovoltaic cells. The Solenergy 12V solar panels meet the most stringent quality and safety standards which can withstand the harshest environmental and pollution conditions. This kit includes the solar panels, a regulator and a wiring kit with a free gland.

      Number of cells: 32

      Max Power: 150WP±3%

      Features:

      The special aluminium brackets integrated in the panel, with aerodynamic plastic side covers make the robust panel safe, easy and quick to install.

      Each panel is equipped with a 6-metre bipolar connection cable with an all-weather protective outer sheath.

      Architecture:

      -Aluminium frame

      -High transmittance glass: 91.5%

      -Low-resistance connection strip: 69.31MΩ

      -Eva transmittance: 30% (290-380MN)

      Key Features

      Constant ventilation of the cells

      Withstand the harshest environmental and pollution conditions

      Built-in bracket

      6m Cable

      Rounded corners

      Low iron content and anti-reflective coating

      Maximum transmittance and transparency



      Brand NDS
      Voltage Description Nominal voltage: 12V, Open circuit voltage: 20.85V, Max power voltage: 17.23V
      Model PSM 150WP
      Efficiency 18.05%
      Height Description 1475mm (1.475m)
      Width 676mm (0.676m)
      Depth 60mm (0.06m)
      Length Cable: 6m
      Weight 12.5kg
      Material High purity silicon coated with a tedlar foil and textured tempered glass all enclosed in two sheets of EVA (Ethylene Vinyl Acetate). Aluminium frame, High transmittance glass
      Colour Black and Silver
      Wattage 150W ±3% maximum
      Amps Description Short circuit current: 9.3A, Max power current: 8.71A
      Contents Solar panel, regulator, wiring kit

      Read more
