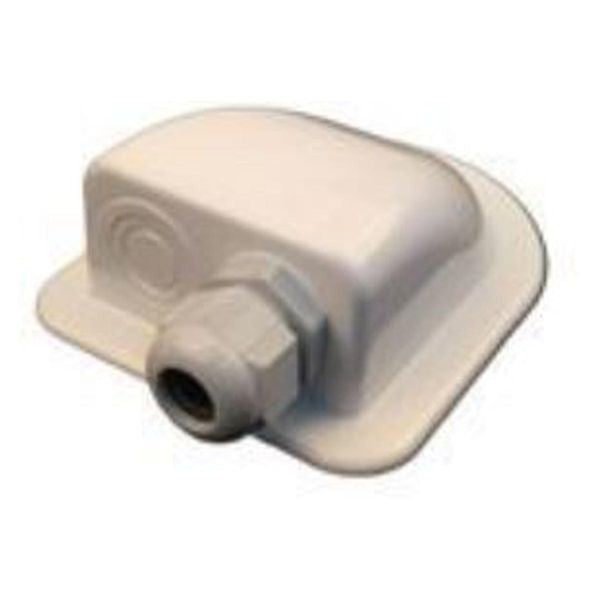

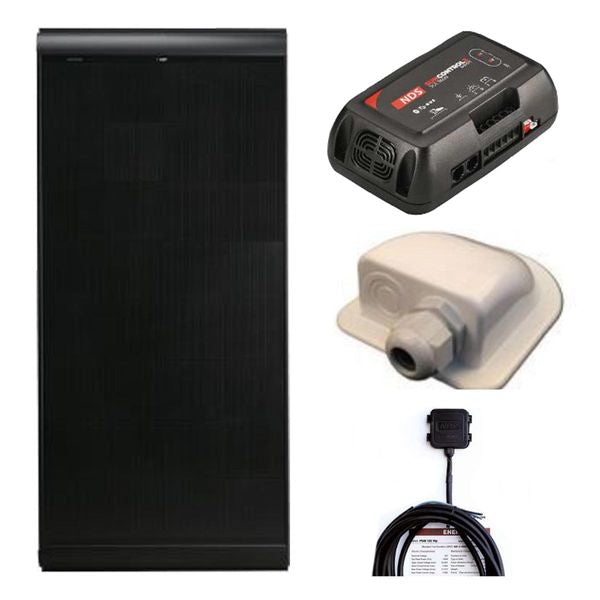

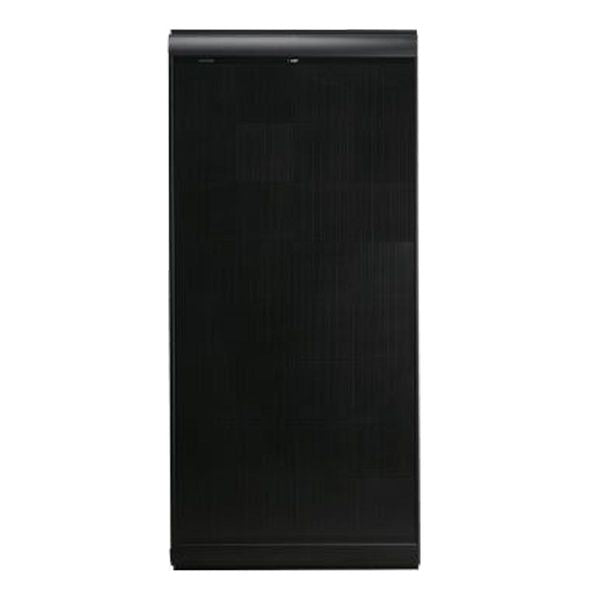

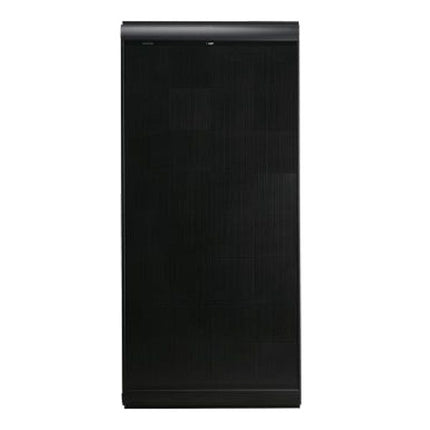

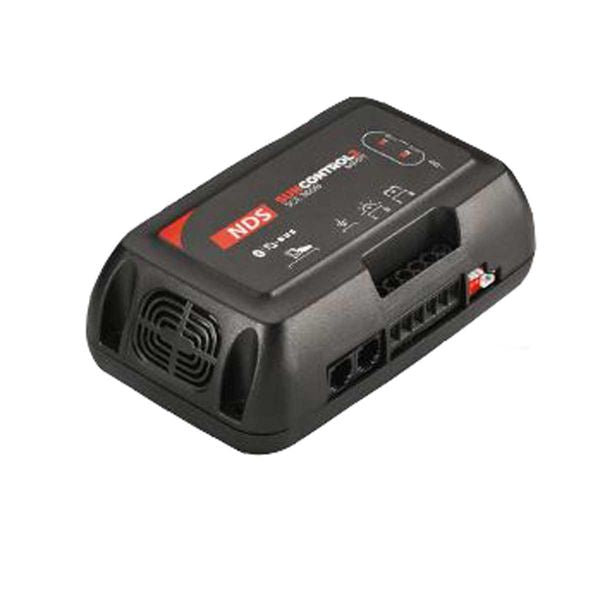

NDS BS 165WP 360 Blacksolar + Sun Control Regulator + Gland + Cable Kit. Blacksolars are the top of the range of solar panels for motorhomes, they capture more solar energy and, in grazing light, such as at dawn and dusk, they produce more electricity than standard modules. The mounting bracket is integrated into the frame of the photovoltaic panel and allows the optimum distance from the mounting surface to be maintained at all times, thus ensuring the necessary ventilation of the cells and adequate aerodynamics thanks to the rounded corners. This special monocrystalline panel is equipped with the latest generation of high-efficiency PERC photovoltaic cells, which together with excellent raw materials, make blacksolar a highly developed panel in the photovoltaic world, achieving an efficiency of 19.5%. This kit includes the solar panels, a regulator and a wiring kit with a free gland.
Number of cells: 32
Max Power: 165WP±3%
Features:
The special aluminium brackets integrated in the panel, with aerodynamic plastic side covers make the robust panel safe, easy and quick to install.

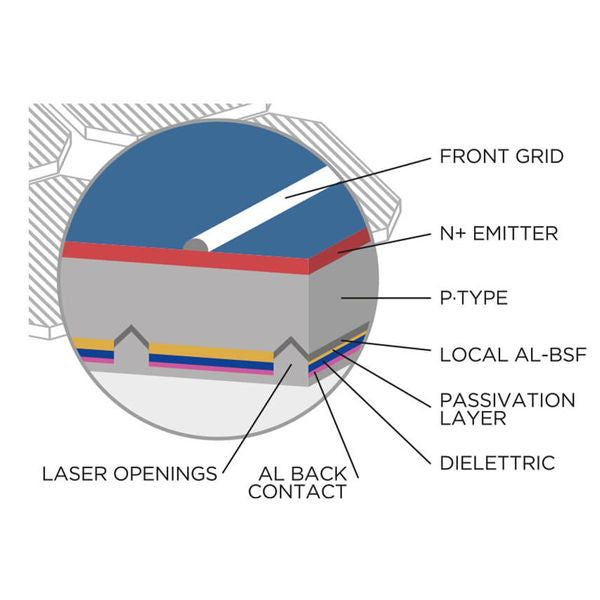

Passivated Emitter and Rear Cell (PERC): a new technology to increase energy conversion efficiency by adding a passivated dielectric layer to the rear of the cell.

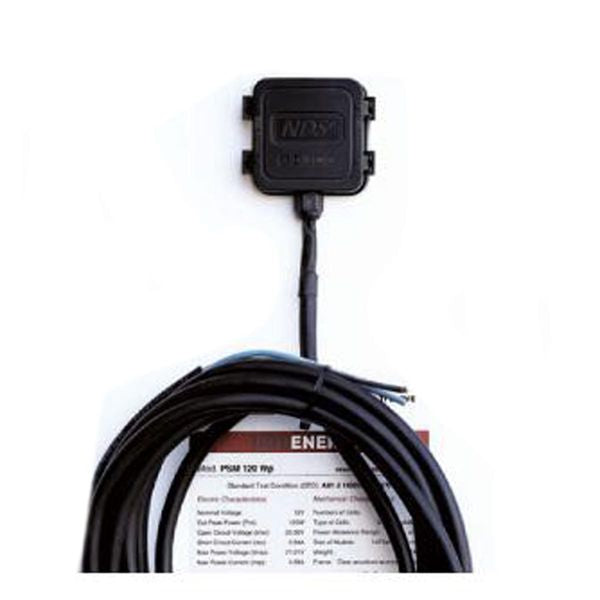

Each panel is equipped with a 6-metre bipolar connection cable with an all-weather protective outer sheath.
Key Features
- Built-in bracket
- PERC cells
- 6m cable
- Rounded corners
| Brand |
NDS |
| Voltage Description |
Nominal voltage: 12V, Open circuit voltage: 21.6V, Max power voltage: 17.84V |
| Model |
BS 165WP |
| Efficiency |
19.5% |
| Height Description |
1495mm (1.495m) |
| Width |
680mm (0.68m) |
| Depth |
60mm (0.06m) |
| Length |
Cable: 6m |
| Weight |
14kg |
| Material |
Crystal silicon panels, Aluminium brackets, Aerodynamic plastic side covers |
| Colour |
Black |
| Wattage |
165W ±3% maximum |
| Amps Description |
Short circuit current: 9.78A, Max power current: 9.25A |
| Contents |
Solar panel, regulator, wiring kit |
