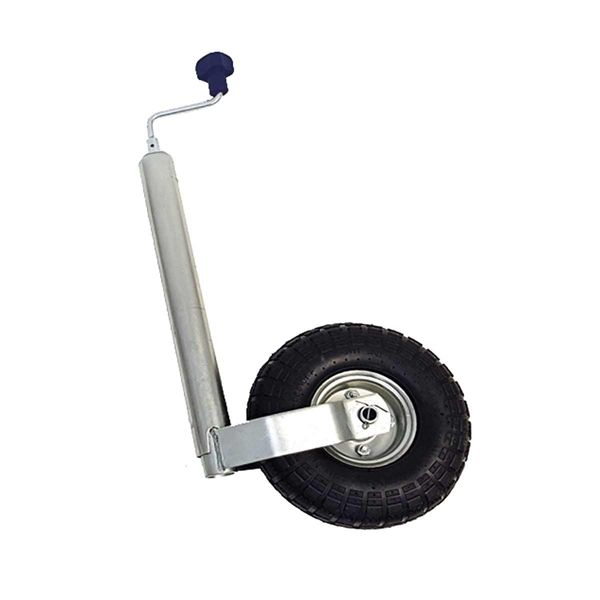

Maypole MP4375 Medium Duty Jockey Wheel (48mm Shaft, 180kg Max.)
Maypole MP4375 Medium Duty Jockey Wheel (48mm Shaft, 180kg Max.)
Maypole MP4375 jockey wheel for medium-duty trailers and caravans with a static nose weight of up to 180kg.
The jockey wheel features a 48mm outer tube diameter, extension range of 310mm and a handle extension of 110mm.
The 260 x 77mm pneumatic tyre features a steel rim, preventing sinkage into soft ground and ensuring reliable performance across various terrains.
When fully retracted, the outer tube engages with the wheel forks, preventing rotation and enhancing stability during towing.
The jockey wheel supports a maximum static load of 180kg when used with the Maypole MP424 48mm Standard Duty Split Clamp, Nova product code NL-MP424.
Key Features
Designed for medium-duty trailers and caravans
Accommodates trailers with a static nose weight of up to 180kg
48mm outer tube diameter
Height extension range of 310mm
Handle extension of 110mm
260 x 77mm pneumatic tyre with a steel rim to prevents sinkage into soft ground
Brand | Maypole |
Type | Jockey wheels |
Model | MP4375 |
Size | Wheel: 260 x 77mm |
Maximum Load Description | 180kg |
Diameter Description | Shaft (tube): 48mm |
