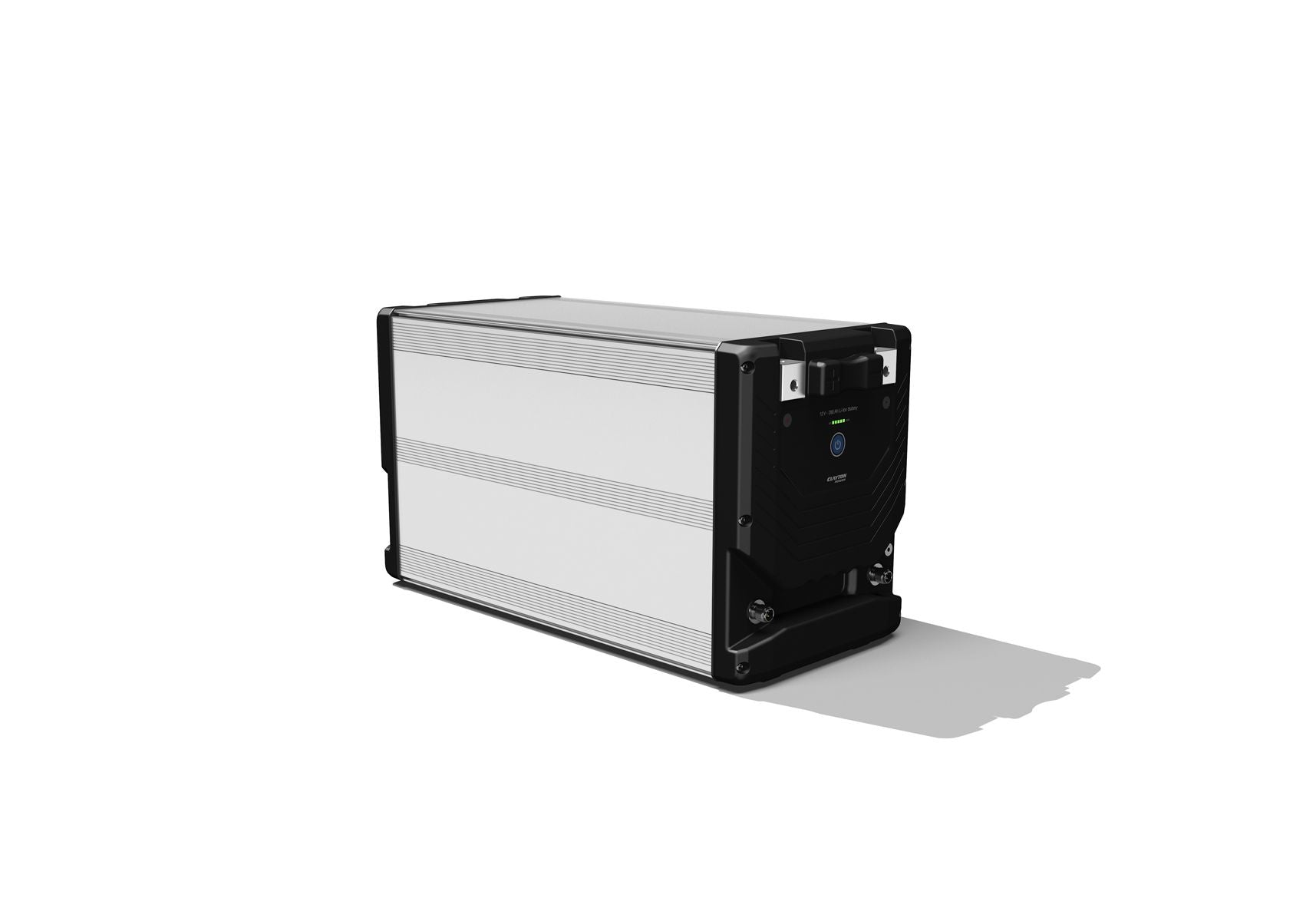

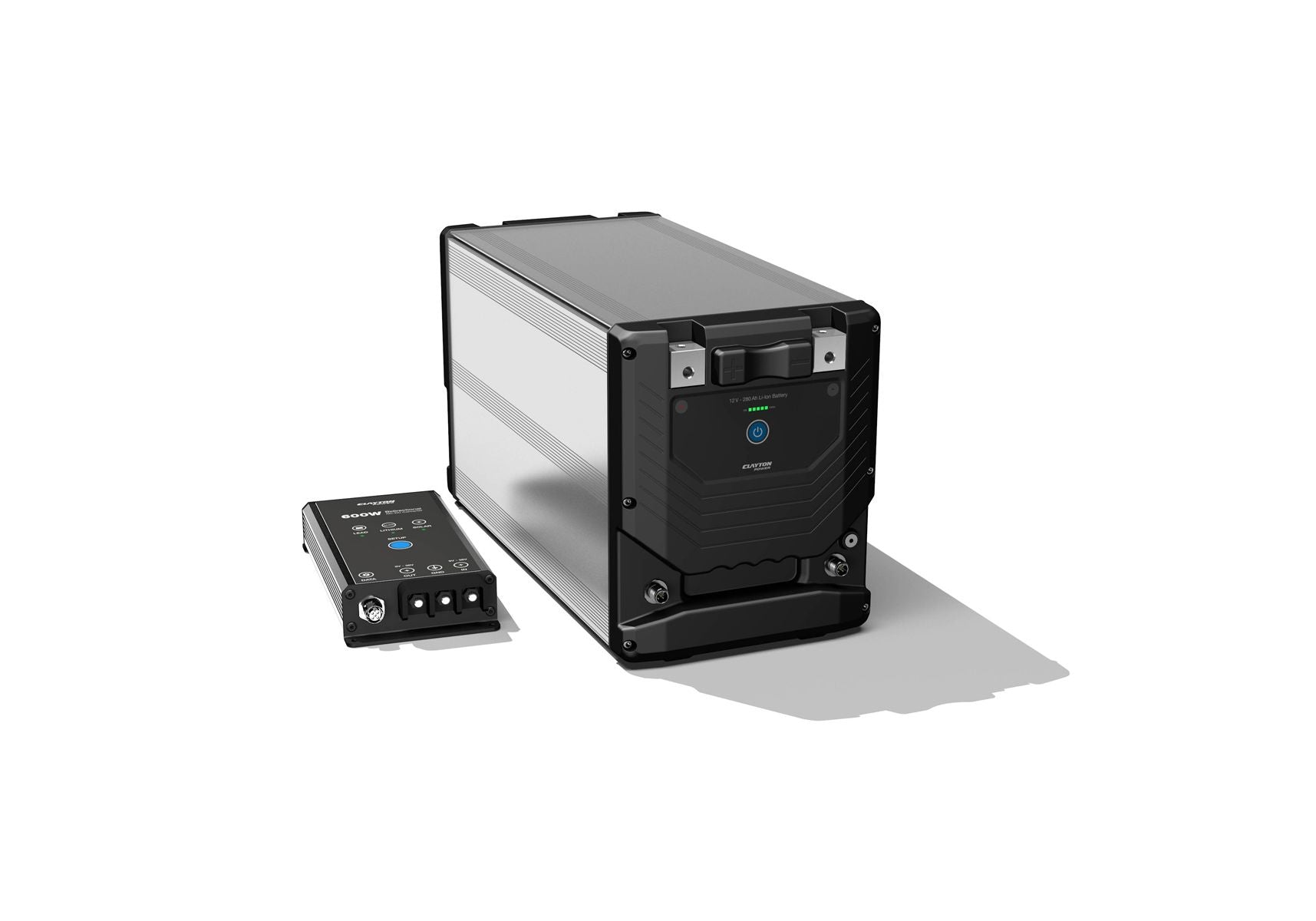

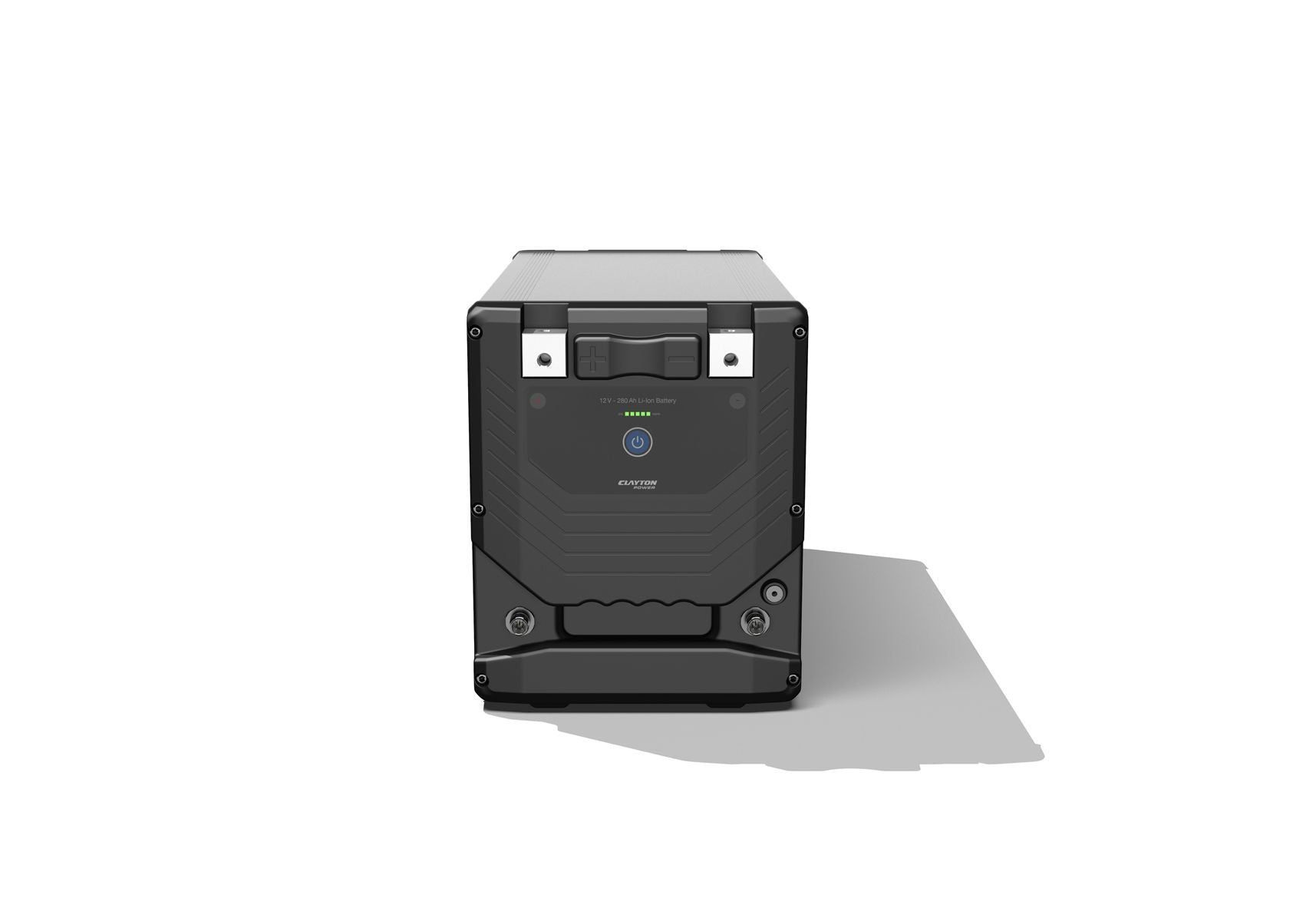

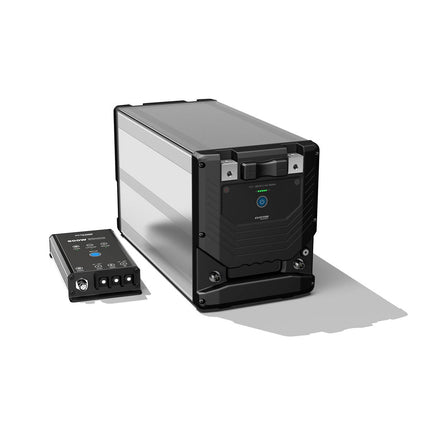

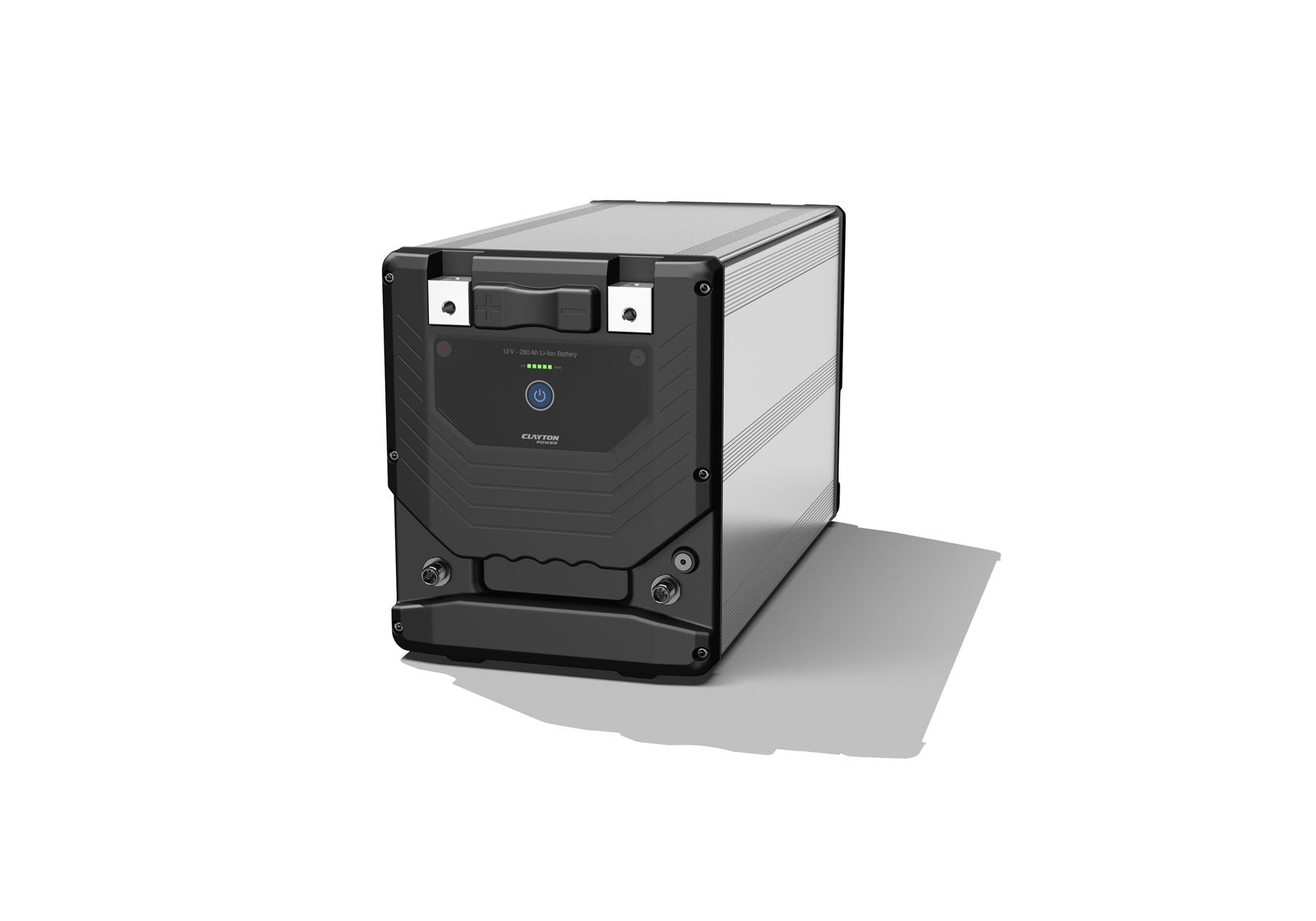

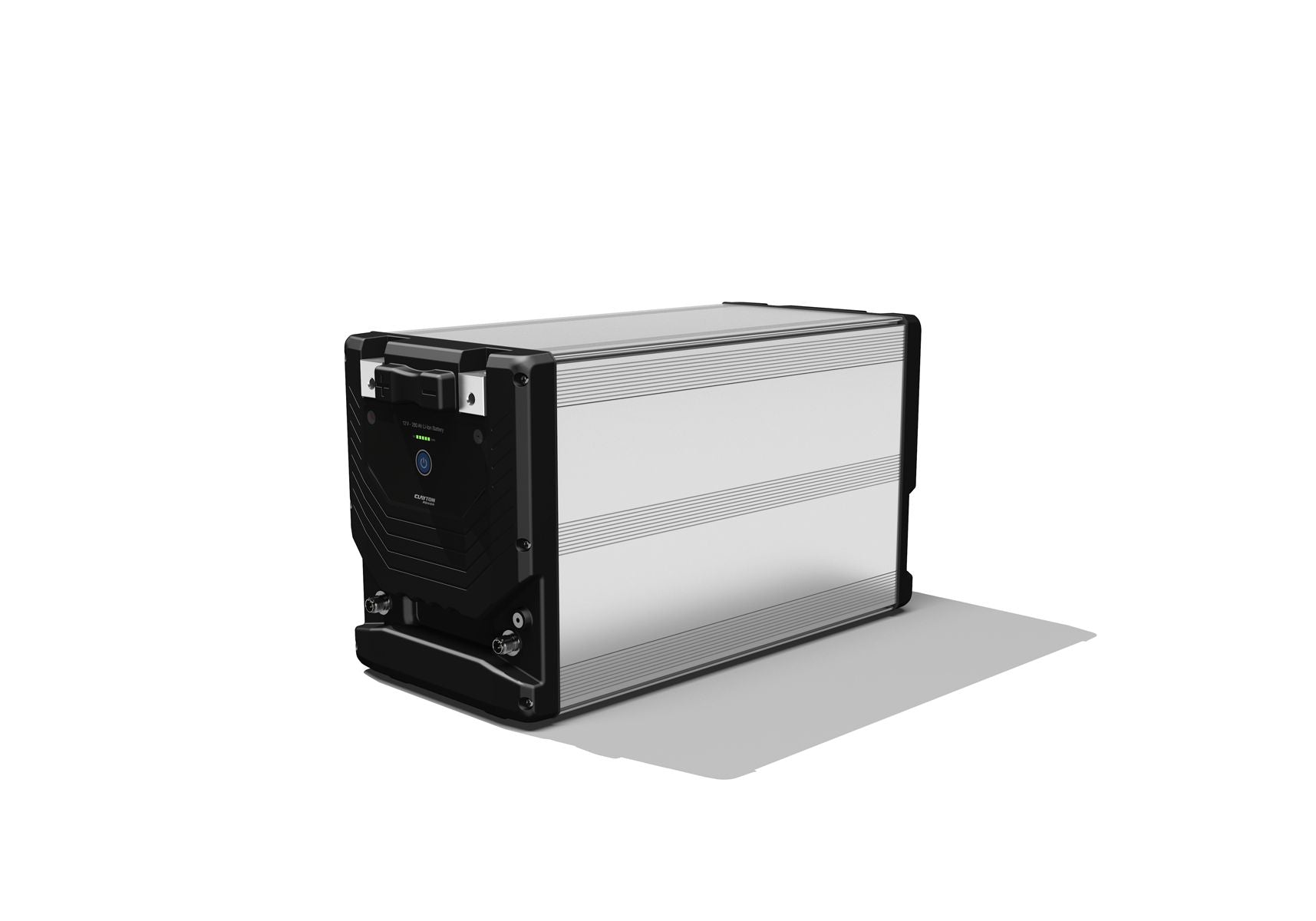

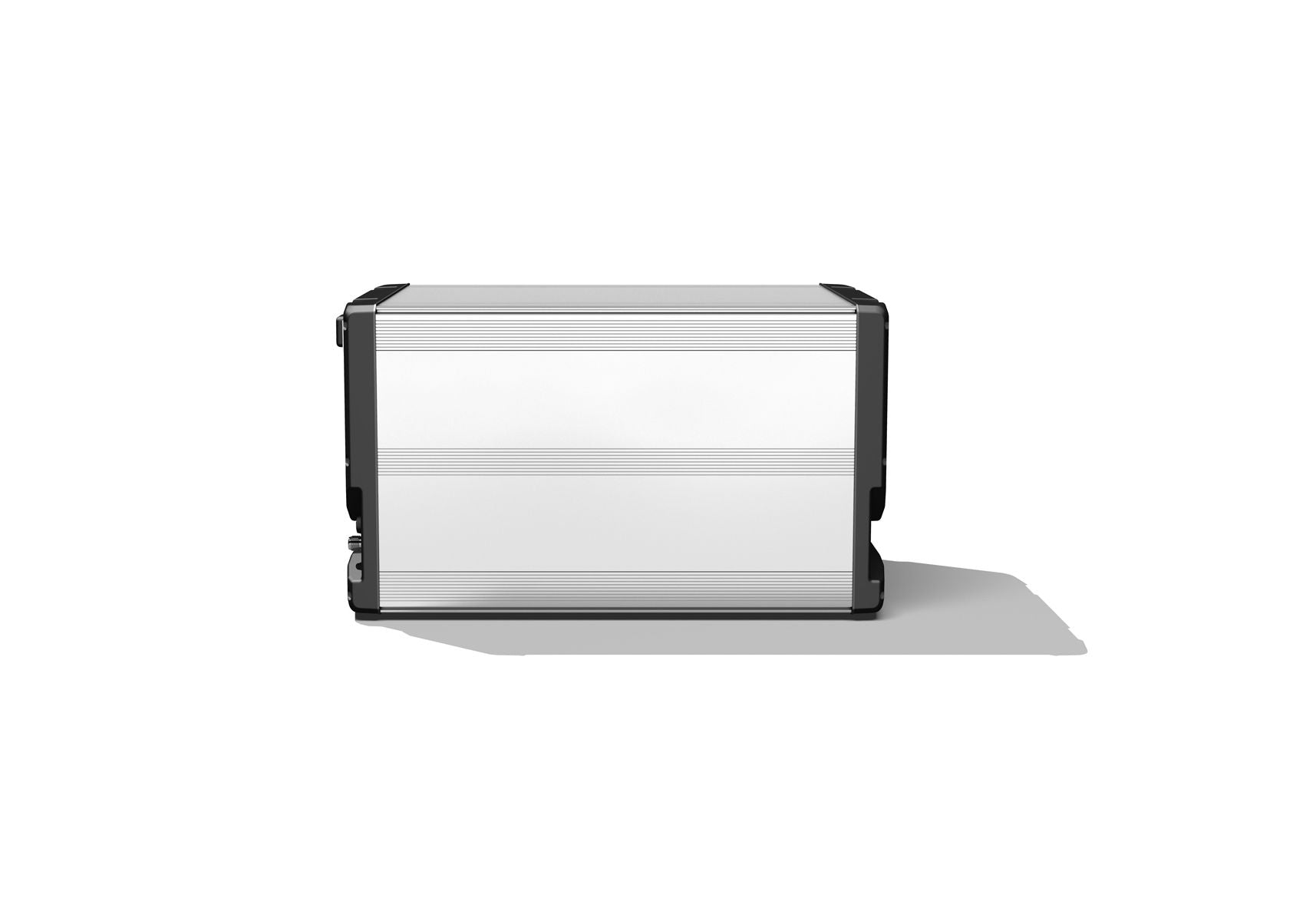

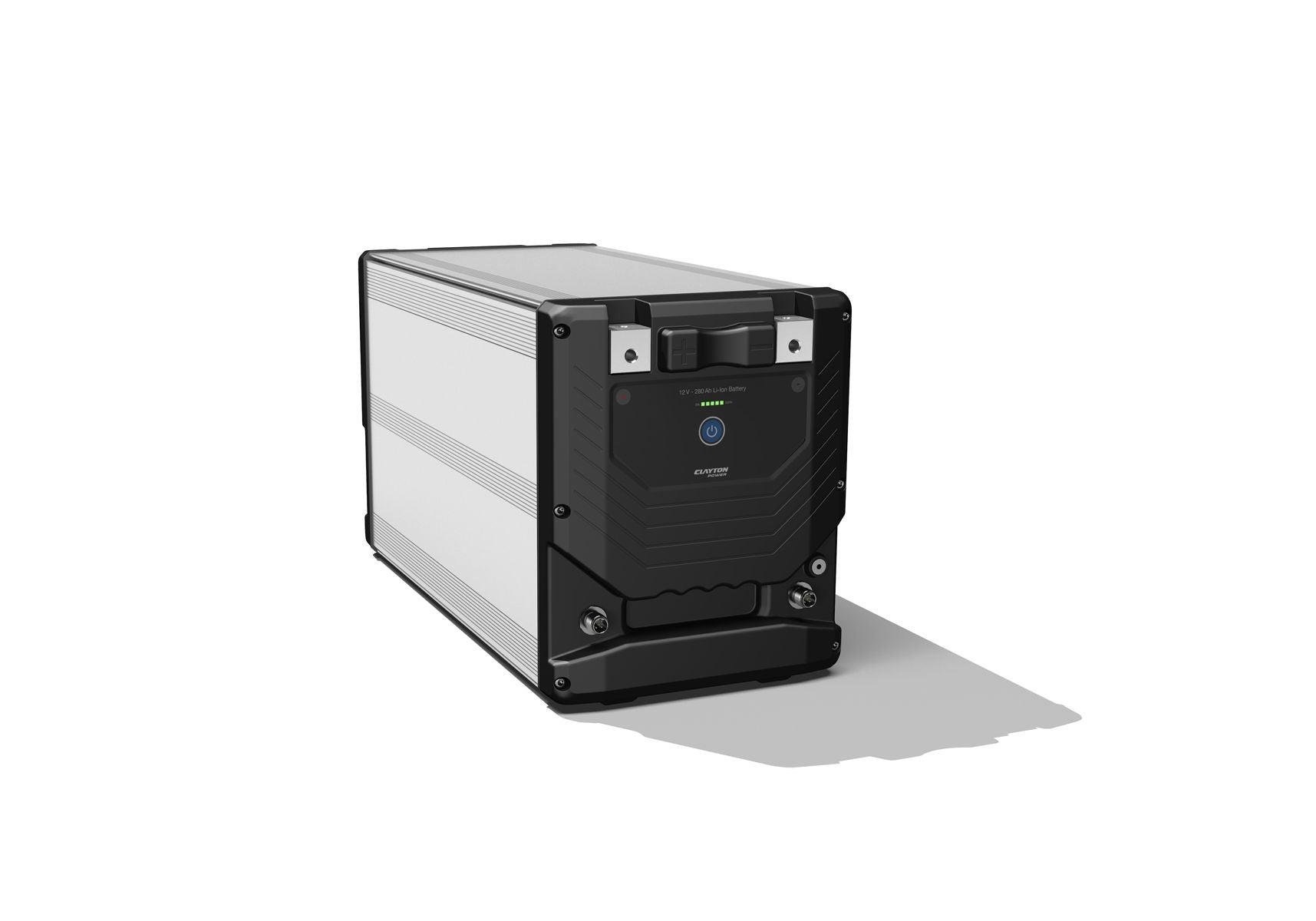

Lithium-Ion G4 Extension Battery Clayton Power 280Ah - 12V

Description

Lithium-Ion G4 Extension Battery Clayton Power 280Ah - 12V

Please Click the link below to view Fitting Instructions:

Fitting Instructions




Features:

  • Extension for LPS
  • Including DC-DC Converter
  • Including Data Cable
  • Including Bracket
  • Intergrated BMS
  • Intergrated Power Switch
  • Serial and Parallel Connection



Model No. CB2303-DCDC600
Battery type LiFePO4
BMS Intergrated
Battery Capacity 280 Ah (3584 Wh)
Effective Capacity 235 Ah (3008 Wh)
Continuous Discharge Current 200 A
Continuous Charging Current 140 A
Cycles 6000 @ (25 0C, 80% DOD)
Nominal Battery Voltage 12.8 VDC
Charging Voltage 14.4 VDC
Discharge Voltage 10.8 VDC
Connection Terminals M8 screw
Weight 28 kg
Dimensions (HxWxL) 234.4 x 197 x 438.3 (mm)

Lithium-Ion G4 Extension Battery Clayton Power 280Ah - 12V

Product form

£2,986.80 Incl. VAT

Lithium-Ion G4 Extension Battery Clayton Power 280Ah - 12V Please Click the link below to view Fitting Instructions: Fitting Instructions... Read more

Free pickup in our shop(s)

SKU: CB2303-DCDC600

5 in stock

    • Brand PF JONES

      Description

      Lithium-Ion G4 Extension Battery Clayton Power 280Ah - 12V

      Please Click the link below to view Fitting Instructions:

      Fitting Instructions




      Features:

      • Extension for LPS
      • Including DC-DC Converter
      • Including Data Cable
      • Including Bracket
      • Intergrated BMS
      • Intergrated Power Switch
      • Serial and Parallel Connection



      Model No. CB2303-DCDC600
      Battery type LiFePO4
      BMS Intergrated
      Battery Capacity 280 Ah (3584 Wh)
      Effective Capacity 235 Ah (3008 Wh)
      Continuous Discharge Current 200 A
      Continuous Charging Current 140 A
      Cycles 6000 @ (25 0C, 80% DOD)
      Nominal Battery Voltage 12.8 VDC
      Charging Voltage 14.4 VDC
      Discharge Voltage 10.8 VDC
      Connection Terminals M8 screw
      Weight 28 kg
      Dimensions (HxWxL) 234.4 x 197 x 438.3 (mm)
