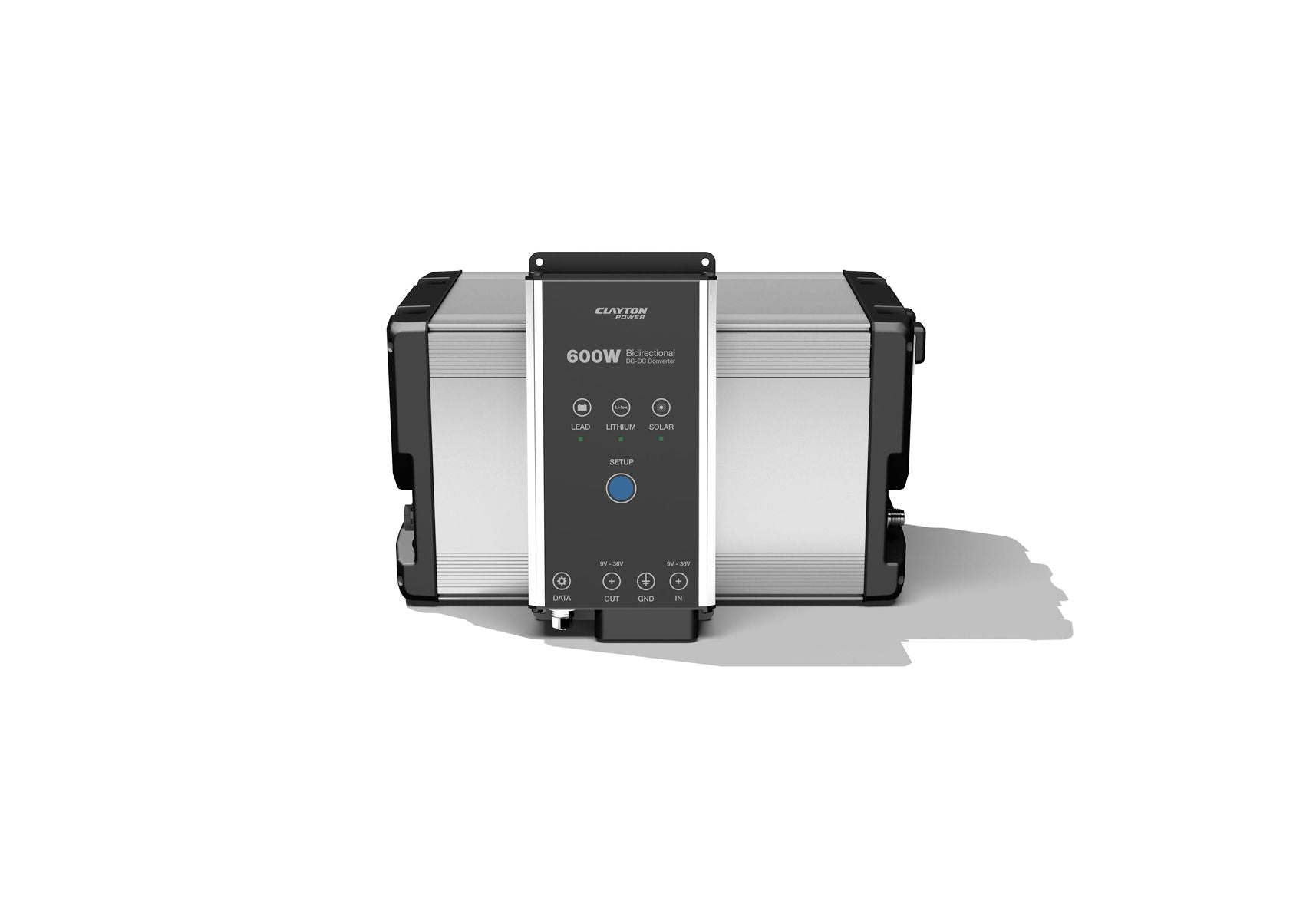

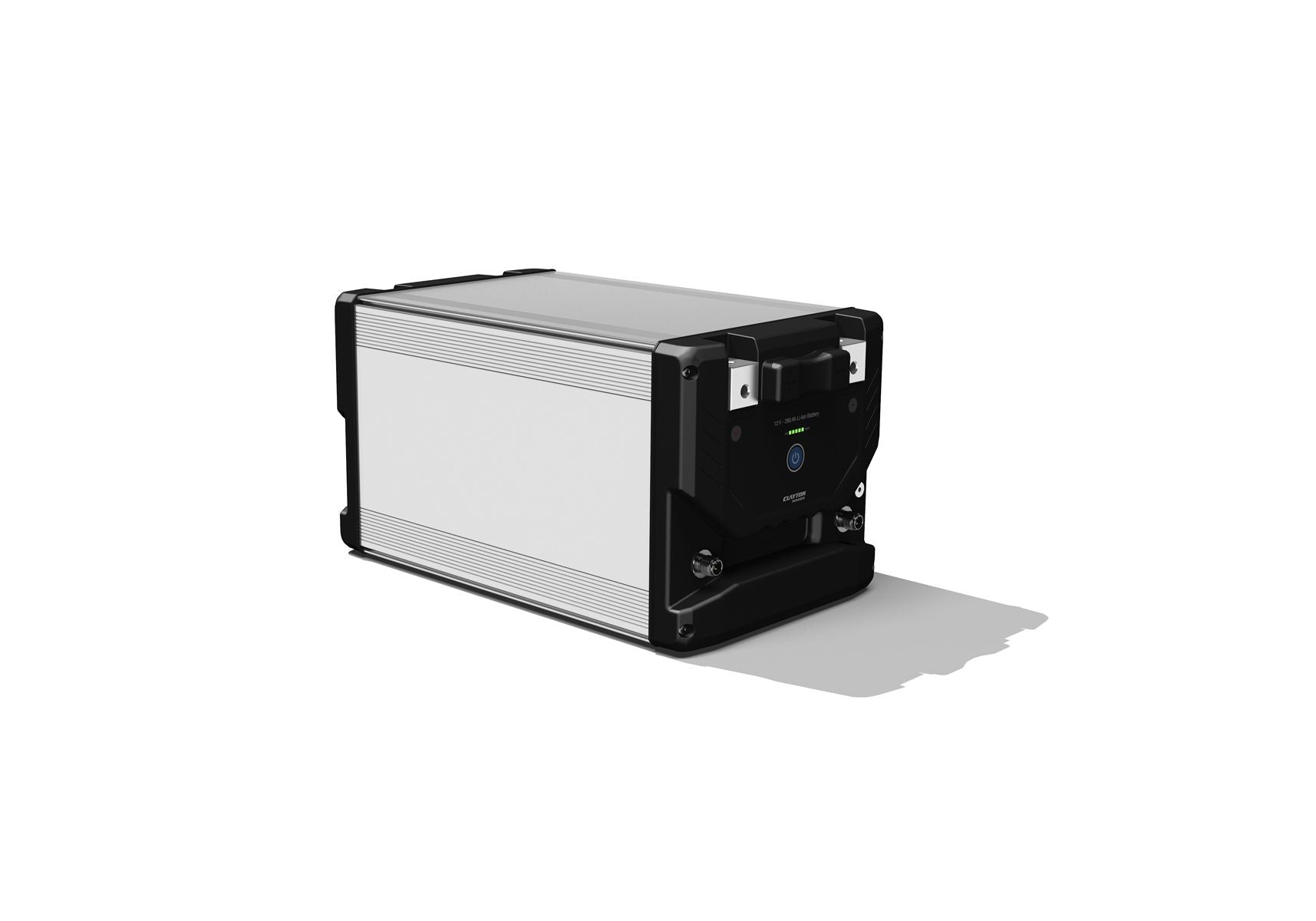

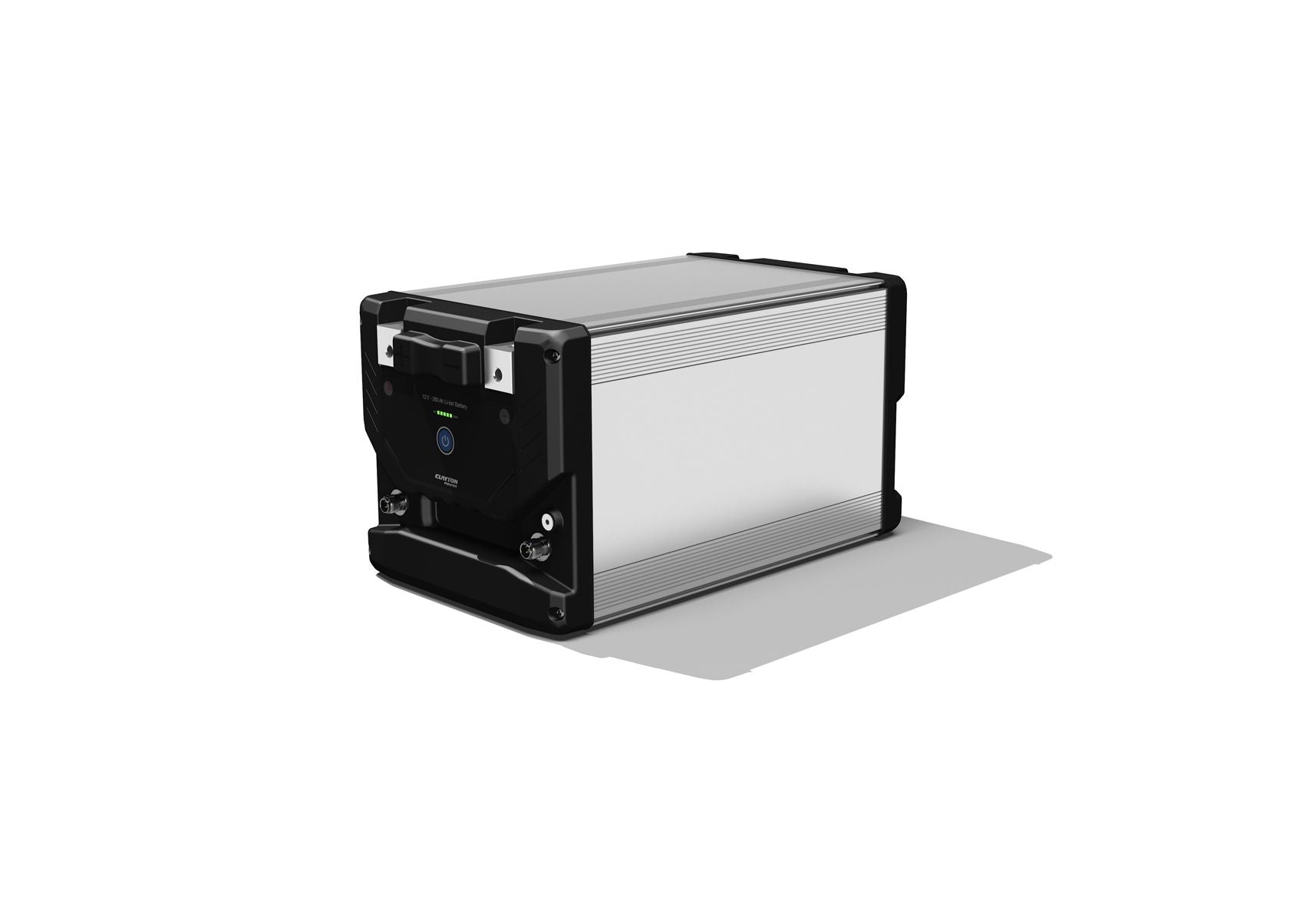

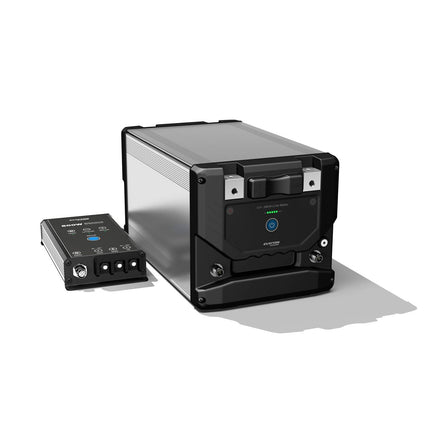

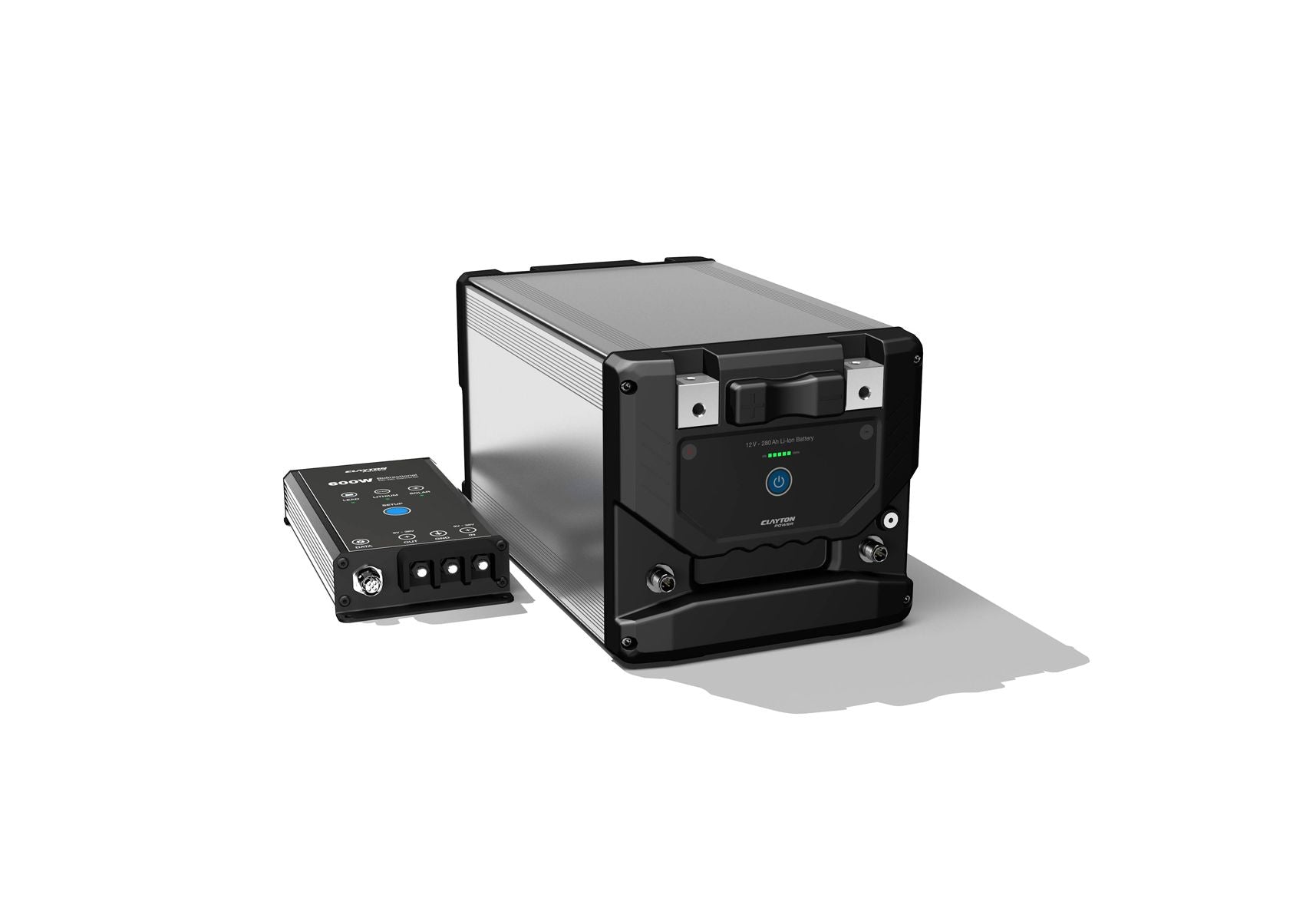

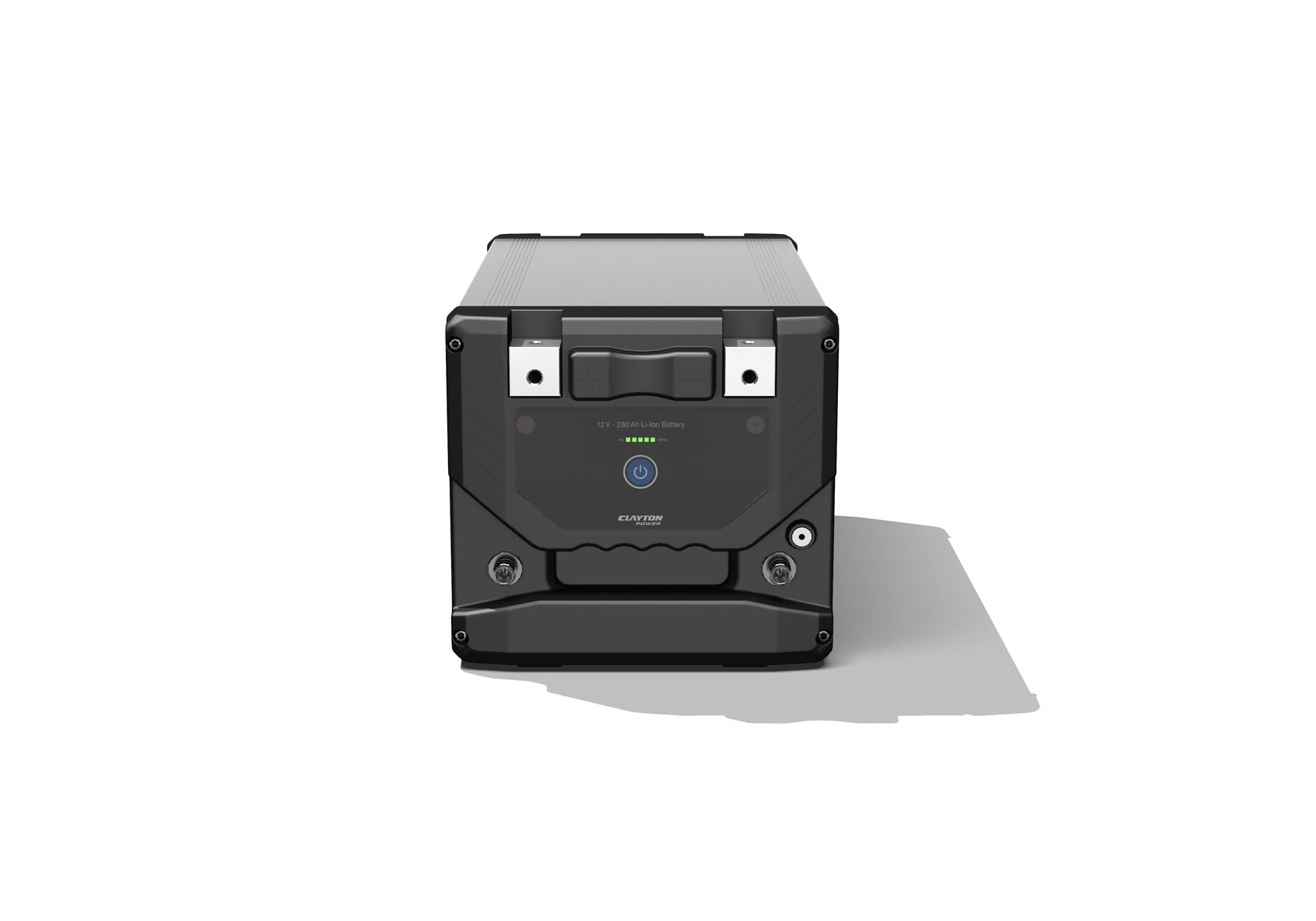

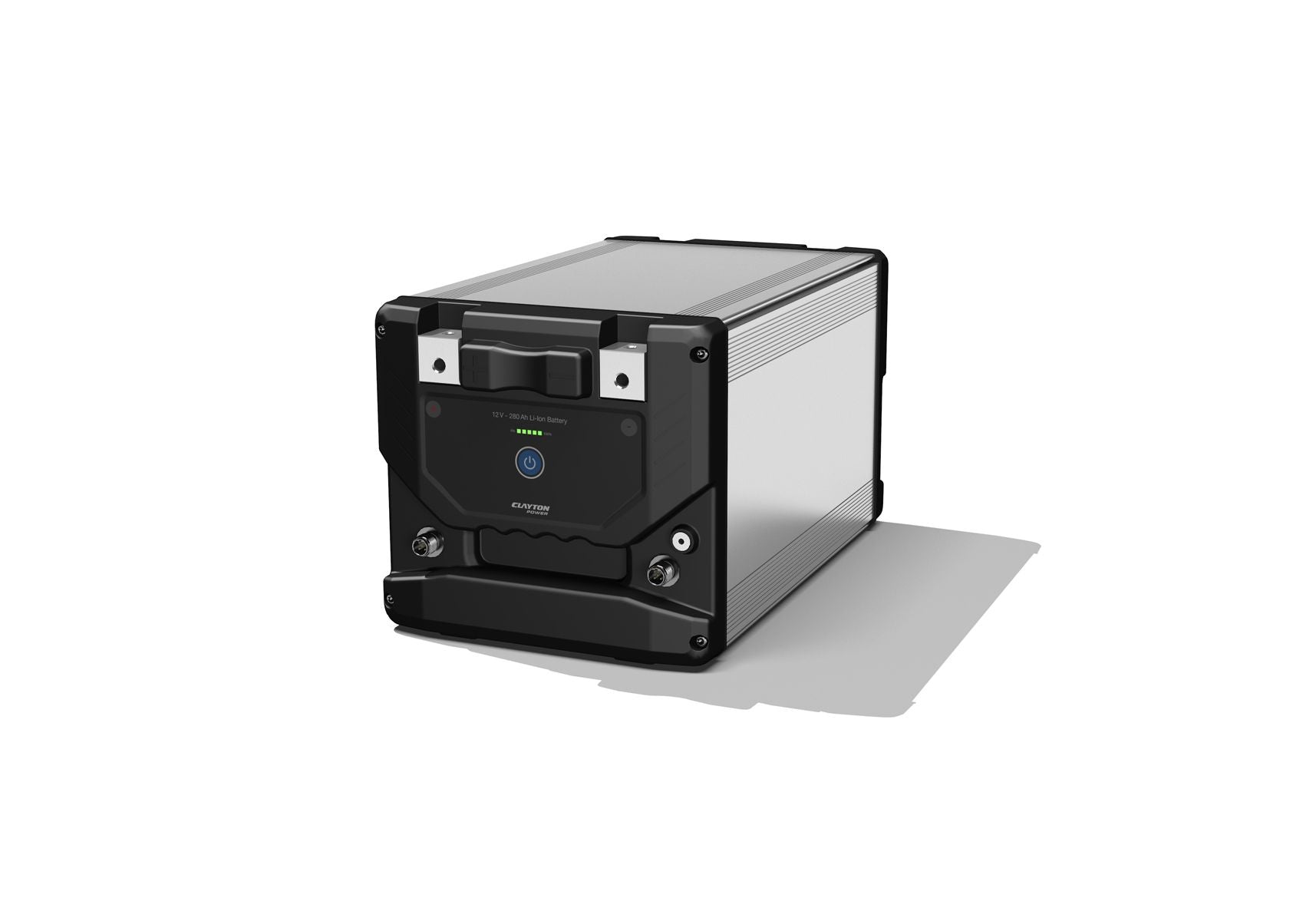

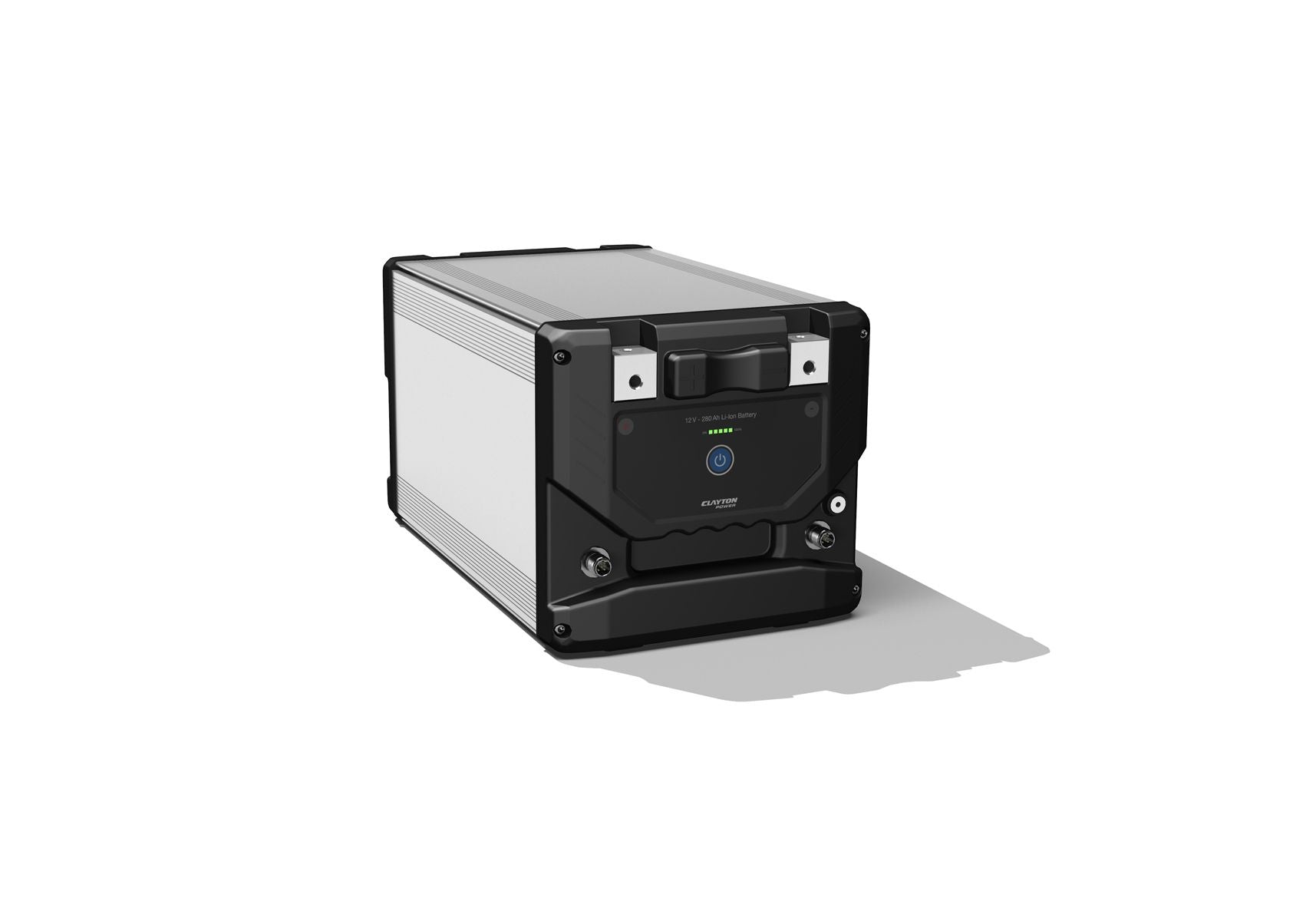

Lithium-Ion G4 Extension Battery Clayton Power 100Ah - 12V

Description

Lithium-Ion G4 Extension Battery Clayton Power 100Ah - 12V



Please Click the link below to view fitting Instruction:

Fitting Instructions





Features:

  • Extension for LPS
  • Including DC-DC Converter
  • Including Data Cable
  • Including Bracket
  • Intergrated BMS
  • Intergrated Power Switch
  • Serial and Parallel Connection




Model No. CB2301-DCDC600
Battery type LiFePO4
BMS Intergrated
Battery Capacity 100 Ah (1280 Wh)
Effective Capacity 80 Ah (1024 Wh)
Continuous Discharge Current 200 A
Continuous Charging Current 175 A
Cycles 2000 @ (25 0C, 80% DOD)
Nominal Battery Voltage 12.8 VDC
Charging Voltage 14.4 VDC
Discharge Voltage 10.8 VDC
Connection Terminals M8 screw
Weight 11 kg
Dimensions (HxWxL)

Lithium-Ion G4 Extension Battery Clayton Power 100Ah - 12V

Product form

£1,906.80 Incl. VAT

Lithium-Ion G4 Extension Battery Clayton Power 100Ah - 12V   Please Click the link below to view fitting Instruction: Fitting... Read more

Free pickup in our shop(s)

SKU: CB2301-DCDC600

5 in stock

    • Brand PF JONES
    • Shipped today? Order within: Nov 17, 2026 14:00:00 +0000

    Description

    Lithium-Ion G4 Extension Battery Clayton Power 100Ah - 12V



    Please Click the link below to view fitting Instruction:

    Fitting Instructions





    Features:

    • Extension for LPS
    • Including DC-DC Converter
    • Including Data Cable
    • Including Bracket
    • Intergrated BMS
    • Intergrated Power Switch
    • Serial and Parallel Connection




    Model No. CB2301-DCDC600
    Battery type LiFePO4
    BMS Intergrated
    Battery Capacity 100 Ah (1280 Wh)
    Effective Capacity 80 Ah (1024 Wh)
    Continuous Discharge Current 200 A
    Continuous Charging Current 175 A
    Cycles 2000 @ (25 0C, 80% DOD)
    Nominal Battery Voltage 12.8 VDC
    Charging Voltage 14.4 VDC
    Discharge Voltage 10.8 VDC
    Connection Terminals M8 screw
    Weight 11 kg
    Dimensions (HxWxL)
