Lippert Modular Smart Bed Electric Bed Lifting System
Lippert Modular Smart Bed Electric Bed Lifting System
Couldn't load pickup availability

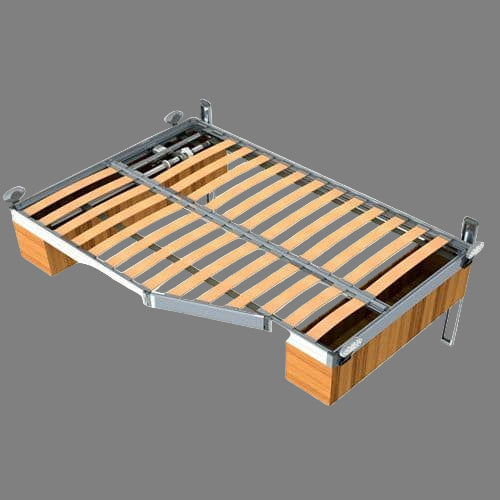

Lifting system Electric Bed
- Engineered to lift and / or lower in the rear garage, above the dinette or driver’s seat
- High-performing gear motor with optional integrated encoder
- The device fits completely under the bed frame and offers maximum fitting flexibility
- Complete bed lifting system is ready for installation (comes with or without the bed frame)
- Includes manual emergency system
- Heavy-duty steel and aluminum construction
- Available with an advanced control system to manage different positions
- Technical specifications may change depending on customer request
- Available with wall-mounted supports
-
Smart Bed Manuals

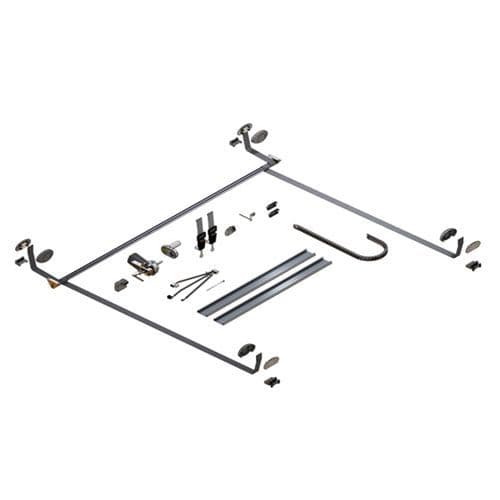

Smart Electric Bed (A)
Includes all components required: motor unit, stabilization rails, shafts, fixing plates and 4 m belts
- Adapts to standard measurements up to a maximum of 2.000 × 1.600 mm
- Includes a Lifty handle for manual use

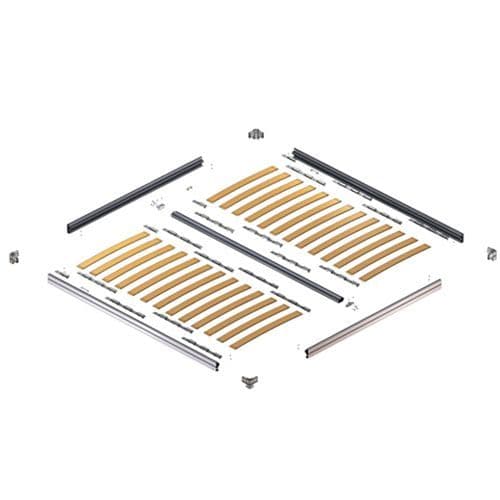

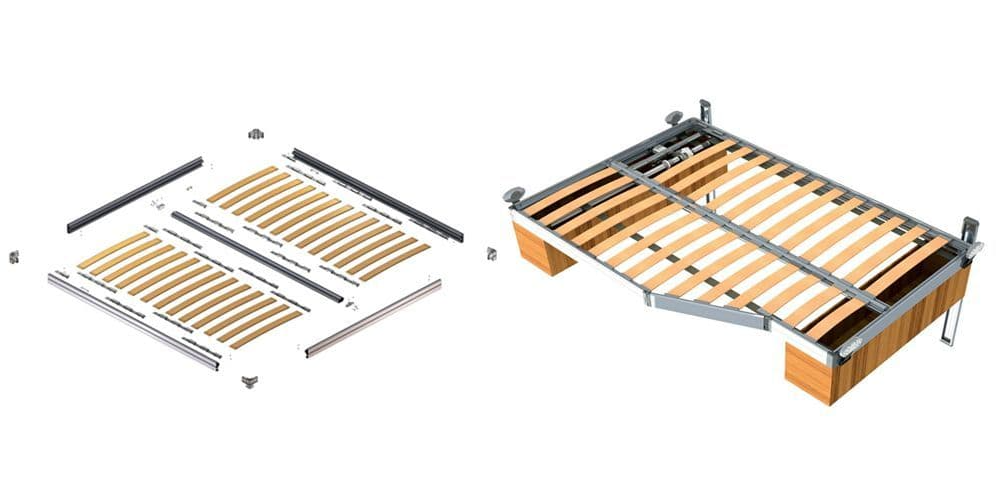

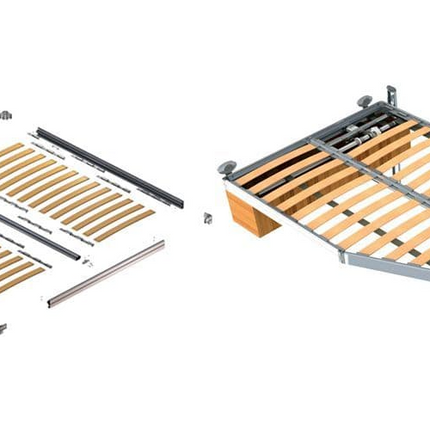

Smart Frame (B)
Allows you to create a custom bed frame for your unique vehicle space
- Includes standard wooden slats and slat holders that can be cut to size

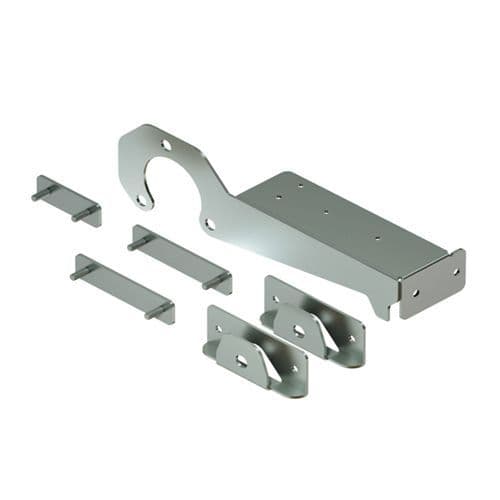

Smart Accessory (C)
Attaches the smart bed frame (B) to the bed lifting system (A)
Stroke Range 300 to 1.500 mm
Static Load Lift 250 kg
| Brand | Lippert |
| Type | Bedframe |
| Width | 1.300 mm |
| Length | 2.000 mm |
| Weight |
23kg (boxed) The Smart Bed Lifting system can bear a total maximum weight of 362 kg |
- Provides a customized bed solution for each unique vehicle layout
-
A mechanical kit including motor unit, adaptable to standard measurements up to a maximum of 2000mm x 1600mm. Each lifting kit includes guides, shafts, fixing plates and belts (length up to 4000mm).
The kit is supplied with a crank so it can be used manually in the event of an emergency. This kit is to be used in conjunction with Bed Frame Kit 40300 and the 40304 brackets.
For more info, please view the PDF links below
Smart Bed Manuals
Product Component
Specification Sheet
THIS KIT IS TO BE USED IN CONJUNCTION WITH BED FRAME KIT Z2002 AND BRACKETS KIT Z2001.
