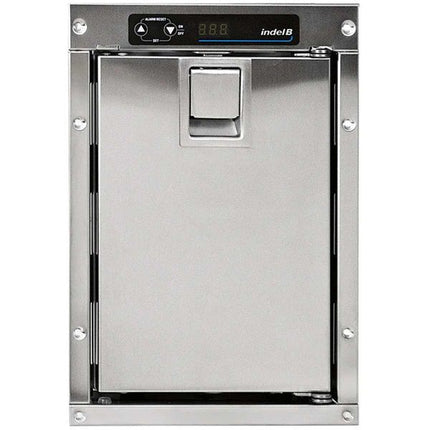

Indel B medical line temperature controlled fridge with built-in isothermal containers designed for installation and use inside ambulances.
FM7 BACK is a controlled temperature compressor refrigerator for the storage and transport of drugs.
The fridge is designed to reach and maintain a temperature of 4°C with a tolerance of +/-1.5°C. The thermostat allows you to set a specific temperature in a range from 2°C to 8°C. If the set temperature varies by more than +/-1.5°C, two alarms will be activated: an acoustic alarm (buzzer) and a visual alarm (red flashing LED). Both alarms will remain active until voluntarily reset by the health operator or through the procedure indicated in the guide.

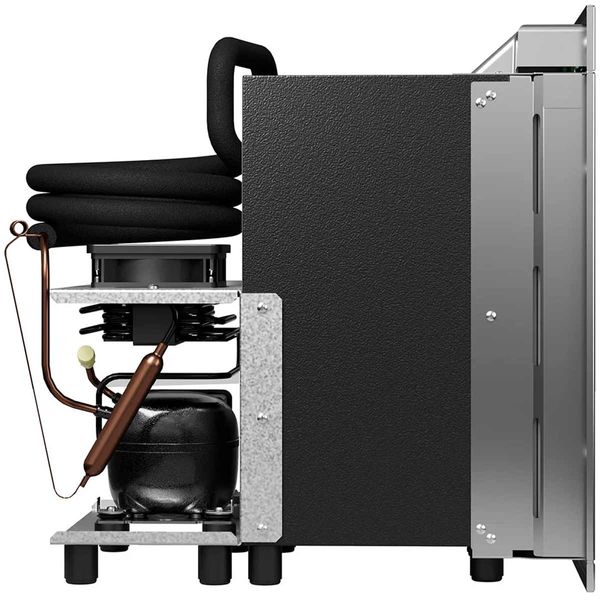

This model differs from FM7 TOP for the compressor at the rear. The compressor, however, can be moved to allow for more flexible installation.
Group: Medical Refrigerators
Refrigerant gas: R134a
Battery protection: Yes
FM7
INTENDED USE:
The FM7 refrigerator is a piece of professional equipment which can only be installed into a motor vehicle.
It is particularly appropriate for emergency vehicles like ambulances, according to the EN 60601-1 standard.
The use of the refrigerator FM7 is reserved only to medical and sanitary personnel.
It is operated by 12/24 V DC supply voltage, directly drawn from the battery of the vehicle.
It can cool products and keep them cool at stable temperature which can be set between 2 °C and 8 °C with
a tolerance of ± 1.5°C.
Make sure that only products that can be cooled at reference temperatures are stored in the device: see
TECHNICAL DATA table.
Based on the Directive 2007/41/EEC and 93/42/EEC, the class I devices are destined to:
•
Preserve correctly packaged drugs, vaccines and reagents, other than body fluids or body tissues,
destined to be administrated or introduced into the human body.
•
Preserve other not flammable nor explosive substances or materials for a generic use in environments
like hospitals, pharmaceutical centres or laboratories.
These devices are not destined to preserve blood, body fluids or body tissues.
TECHNIC AL DATA
MOD EL
Volume of the cooled compartment
Net weight
Outside dimensions (HxLxD)
Average power requirements
Supply voltage
Fixed point temperature
Climate Class
Refrigerant gas
This device contains fluorinated greenhouse gas R134a in a hermetically sealed system which opera-
tes in relation to the presence of this gas.
Specification
| Brand |
Indel B |
| Voltage Description |
12V & 24V DC |
| Model |
FM7 Back |
| Rating |
SN-T Climate class |
| Height Description |
403.8mm (15.9") |
| Width |
276.8mm (10.9") |
| Depth |
241.3mm (9.5") |
| Weight |
10.9kg (24 lb) |
| Colour |
Black |
| Fridge Capacity |
5.6 Litres |
| Wattage |
56W to 67W Absorption |
| Approvals |
CE, E-Mark |
| Consumption |
0.26 kWh/24h |
| Series |
Medical Line |
| Capacity Description |
5.6 Litres |
| Country of Origin |
Italy |
