Horrex MAN/Crafter Right hand Drive sliding door flyscreen

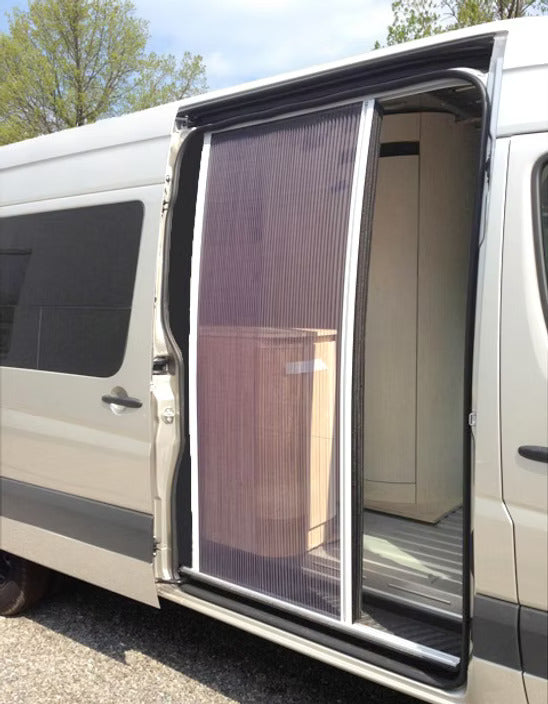

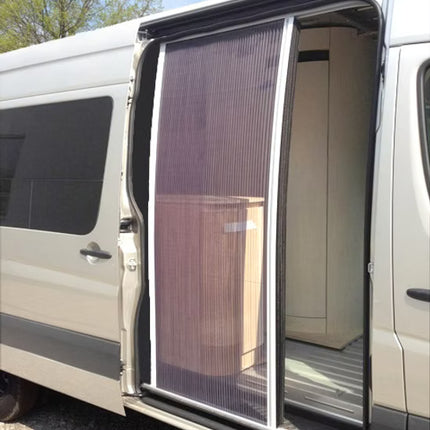

Horrex MAN TGE/ VW Crafter Right hand Drive sliding door flyscreen  from 2017 RHD is right hand drive, for customers in uk, Flyscreen installed on the passenger side only.

MATERIAL SPECIFICATIONS Top guider profile Extruded aluminium 24.5 x 23.5 mm (WxH) in light grey (± RAL7047) or optional dark grey (± RAL7021) powder coat (conditions apply) Pull bar Extruded aluminium 50 x 17 mm (WxH) in light grey (± RAL7047) or optional dark grey (± RAL7021) powder coat (conditions apply)

Bottom guiding profile Extruded anodized aluminium (WxH) Sprinter | Crafter (2007-2017) 45 x 16 mm Sprinter (from 2018 onwards) 45 x 18 mm Side panel (optional) Black ABS panel, straight for customisation or pre-shaped, aligned with the bodywork and/or interior of the van, for effective protection against insects (conditions apply)

Corner pieces and caps Colour coordinated injection moulded parts in PA6 and PA6.6 Insect screen mesh Single pleat black polyester mesh 1.3 x 1.3 mm (mesh opening), optional FR under standard FMVSS/CMVSS 302 (conditions apply)

INSTALLATION

On- face fixation on the inside with 4 clips underneath the door rubber at the top and 3 screws at the bottom. The required mounting space between door rubber and top cabinet is 27 mm, between door and kitchen cabinet 20 mm and 40 mm for the bottom guiding profile

DATA SHEET PDF
