Description
Fiamma Carry-Bike designed for installation on Volkswagen T6 vehicles with a single rear door (vehicles from 07/2003). This Carry-Bike is also suitable for vehicles with a raised roof.
This bike carrier is designed to carry two standard bikes or two ebikes, and can be adapted to carry up to four bikes with the addition of Fiamma parts.
Suitable for:
VW Transporter T6 / VW T6 Caravelle / VW T6 Multivan / VW T6 California (≥ 2014)
Supplied with:
- 1 x Bike-Block Pro 1 (Bike locking system)
- 1 x Bike-Block Pro 3 (Bike locking system)
- Security Strip
- 2 x Rail Plus (Bike rails)
- Brackets
Specs:
- Colour: Aluminium
- Bikes carried standard: 2
- Bikes carried max.: 4
- Max load: 60kg
- E-Bike: Yes
- Position: Tailgate

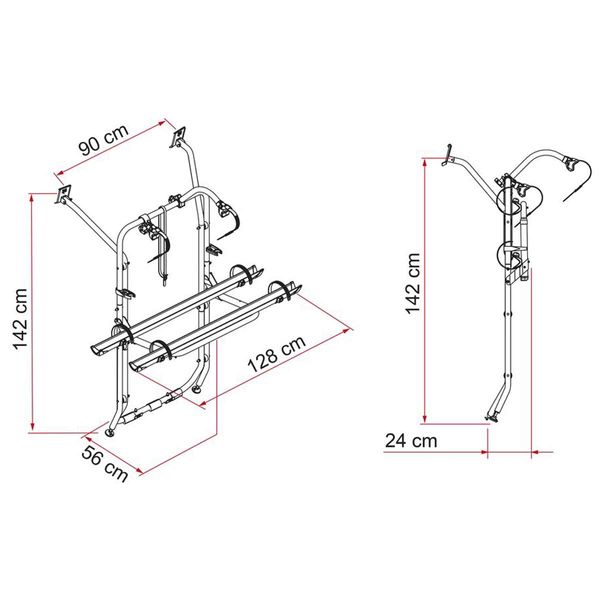

- Vertical wheelbase: 142cm
- Horizontal wheelbase (distance between brackets): 90cm
- Dimensions: 128 x 56 x 142cm (with rail support base in standard open position and in models with minimum adjustable vertical wheelbase)
- Distance between rails: 15cm
- Licence Plate Carrier: Optional, supplied separately
Key Features
Restyled 2023 model
Tailgate can be opened with the Carry-Bike mounted without bikes
Suitable for vehicles with raised roof
| Dimensions |
128 x 56 x 142cm |
| Replaces |
Fiamma 02095-20A (Nova 13329) |
| Brand |
Fiamma |
| Height Description |
1300mm |
| Width |
150mm |
| Depth |
630mm |
| Weight |
9.2kg |
| Colour |
Aluminium |
| Primary Construction |
Aluminium |
| Maximum Load Description |
60kg |
| Application |
Campervans |
| Position |
Tailgate |
| Capacity Description |
2 Bikes as standard (Maximum 4 Bikes) |
| Supplied With |
Bike-Block Pro 1, Bike-Block Pro 3, Security Strip, 2 x Rail Plus, Brackets |
| Optional Extras |
Bike-Block Pro 2, Bike-Block Pro 4, 2 x Rail Plus, Rail Premium, Licence Plate Carrier |
| Country of Origin |
Italy |
