A Fiamma bike carrier designed for installation on Volkswagen T6 vehicles with a single rear door (vehicles from 07/2003). This Carry-Bike is also suitable for vehicles with a raised roof.
This carrier is designed to carry two bikes as standard, or four bikes with the addition of optional extras.
Suitable for:
VW Transporter T6 / VW T6 Caravelle / VW T6 Multivan / VW T6 California ( ≥2014)
- Mounting: Vehicle tailgate
- Vertical wheelbase: 142cm
- Horizontal wheelbase (distance between brackets): 90cm

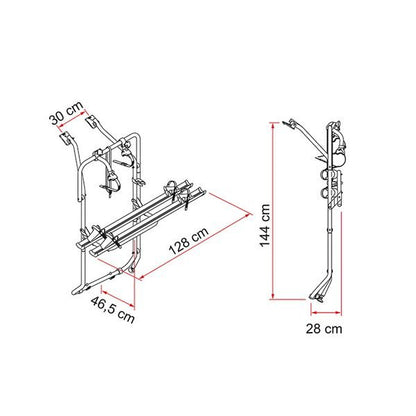

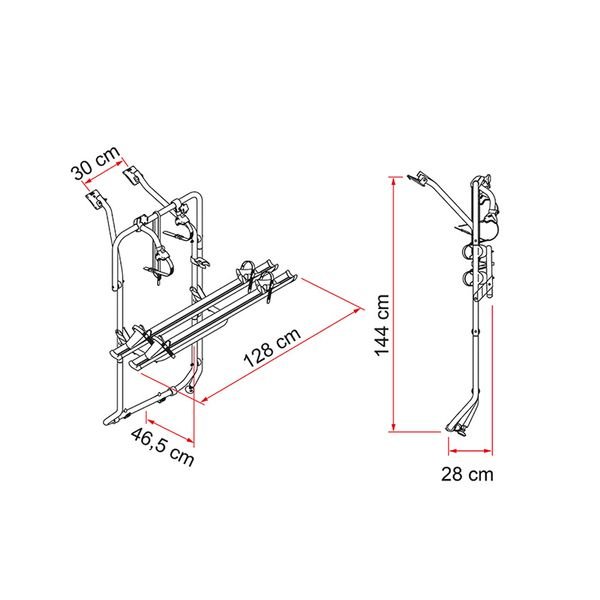

- Dimensions: 128 x 56 x 142cm
- Rail type: Rail Quick Pro
- Bike Block: Pro 1 /Pro 3
- Distance between rails: 15cm
- Licence plate carrier: Optional
Key Features
Suitable for two bikes as standard
Can carry four bikes with the addition of optional extras
Tailgate can be opened with the bike carrier mounted without bikes
Telescopic rail support base made of stainless steel AISI 304 and aluminium 6060
Upper brackets designed to follow the shape of the vehicle
Rail Quick Pro allows for quick and secure locking of the wheel to the rail
| Brand |
Fiamma |
| Type |
VW Bike Carriers |
| Weight |
8.3kg |
| Colour |
Aluminium |
| Primary Construction |
Aluminium |
| Maximum Load Description |
60kg |
| Application |
Campervans |
| Position |
Tailgate |
| Capacity Description |
2 Bikes as standard (Maximum 4 Bikes) |
| Supplied With |
Bike-Block Pro 1, Security Strip, 2 x Rail Quick Pro, Brackets |
| Optional Extras |
Bike-Block Pro D1, Bike-Block Pro D2, 2 x Rail Quick Pro, Rail Premium S |
| Country of Origin |
Italy |
Downloads
Installation Guide Fiamma Carry Bike VW T5 T6
