Description

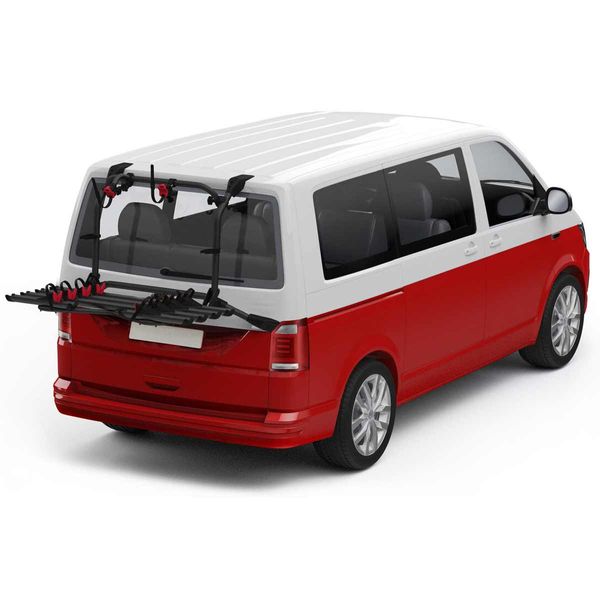

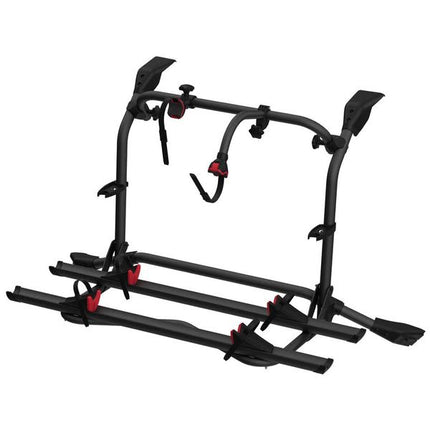

The Fiamma VW T5 Pro Carry-Bike can be installed on VW T5 Transporter, Caravelle, Multivan and California campervans (≥ 2003 ≤ 2014). This 2023 model has been restyled with improved aesthetics and simpler assembly and installation.
This bike rack carries two bikes as supplied but can carry up to four bikes (or two ebikes) with the addition of Fiamma parts.
The T5 Pro bike rack is suitable for vehicles with a raised roof. The vehicle’s tailgate can also be opened with the Carry-Bike mounted without bikes.
Supplied with:
- 1 x Bike-Block S 1 (Bike locking system)
- 1 x Bike-Block S 3 (Bike locking system)
- 2 x Rail Premium (Bike rails)
- Brackets
Specs:
- Colour: Deep Black
- Bikes carried standard: 2
- Bikes carried max.: 4
- Max load: 60kg
- E-Bike: Yes
- Position: Tailgate

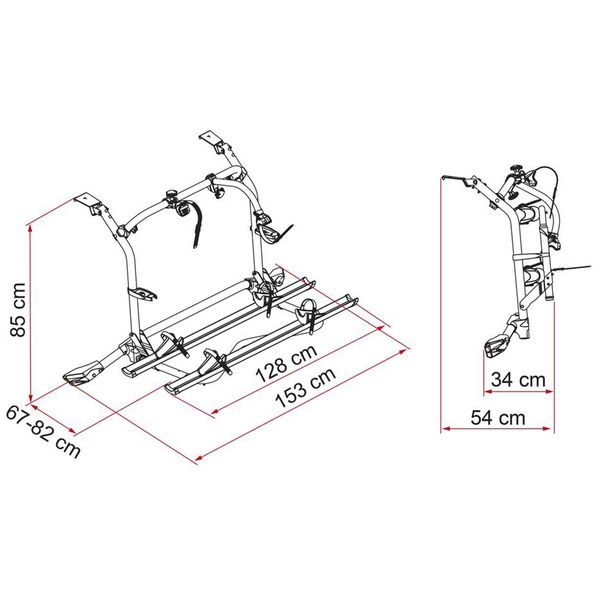

- Vertical wheelbase: 85cm
- Horizontal wheelbase (distance between brackets): 153cm
- Dimensions: 128 x 67 x 85cm (with rail support base in standard open position and in models with minimum adjustable vertical wheelbase)
- Weight: 13kg
- Distance between rails: 15cm
- Licence Plate Carrier: Optional, supplied separately.
Key Features
Restyled 2023 model
Tailgate can be opened with the Carry-Bike mounted without bikes
Shaped rail support so third stop lamp is always visible with bike carrier closed

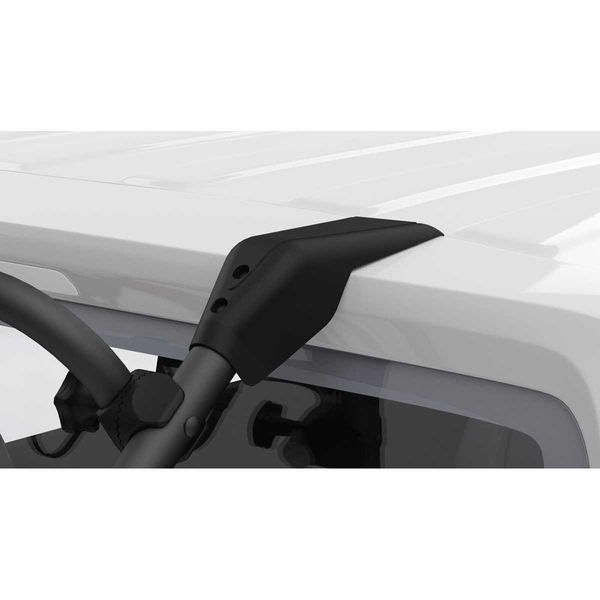

Solid anchorage to reinforced points of tailgate
Suitable for vehicles with raised roof
| Dimensions |
128 x 67 x 85cm |
| Replaces |
Fiamma 02093E71A (Nova 13318) |
| Brand |
Fiamma |
| Height Description |
1300mm |
| Width |
150mm |
| Depth |
630mm |
| Weight |
13kg |
| Colour |
Black |
| Maximum Load Description |
60kg |
| Application |
Campervans |
| Position |
Tailgate |
| Capacity Description |
2 Bikes as standard (Maximum 4 Bikes) |
| Supplied With |
Bike Block Pro S 1, Bike Block Pro S 3, 2 x Rail Premium, Brackets |
| Optional Extras |
Bike Block Pro S 2, Bike Block Pro S 4, 2 x Rail Premium, Kit Rail Premium 48, Licence Plate Carrier |
| Country of Origin |
Italy |
