Description
Fiamma bike carrier designed to carry two standard bikes. This bike rack is easy to install with the brackets as supplied, without the need to drill the vehicle.
This Carry-Bike is specifically designed for installation on the following vehicles:
- Volkswagen Transporter T5 / VW T5 Caravelle / VW T5 Multivan ( ≥2003 ≤2014 )
- Volkswagen Transporter T6 / VW T6 Caravelle / VW T6 Multivan ( ≥2014 )
- Volkswagen T6.1 with double rear door
Supplied with:
- 1 x Bike-Block Pro S 1 (Bike locking system)
- 1 x Bike-Block Pro S 2 (Bike locking system)
- Security Strip
- 2 x Rail Plus (Bike rails)
- Brackets
Specs:
- Colour: Aluminium
- Bikes carried standard: 2
- Bikes carried max.: 2
- Max load: 35kg
- E-Bike: No
- Position: Double Door
- Vertical wheelbase: 144cm
- Horizontal wheelbase (distance between brackets): 30cm

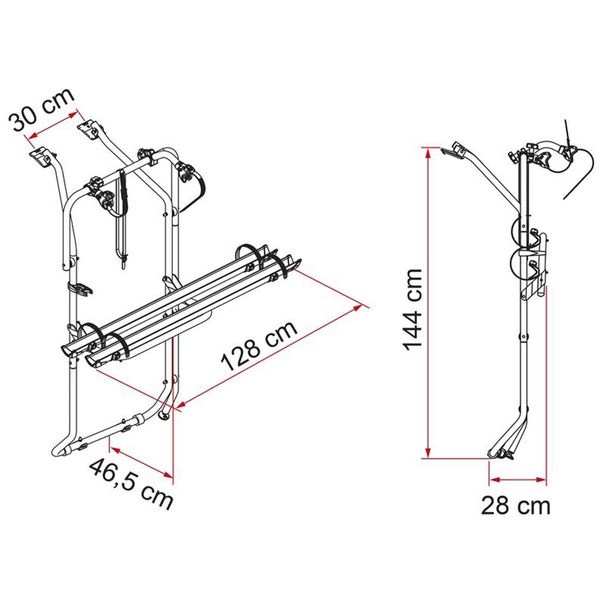

- Dimensions: 128 x 46.5 x 144cm (with rail support base in standard open position and in models with minimum adjustable vertical wheelbase)
- Weight: 7.1kg
- Distance between rails: 15cm
- Licence Plate Carrier: Optional - supplied separately
Key Features
Restyled 2023 model
For Volkswagen T5 and T6 with double rear doors
Allows the tailgate to be opened with the bike carrier mounted (without bikes)
| Dimensions |
128 x 46.5 x 144cm |
| Replaces |
Fiamma 02093B79A (Nova 13346) |
| Brand |
Fiamma |
| Height Description |
1300mm |
| Width |
150mm |
| Depth |
630mm |
| Weight |
7.1kg |
| Colour |
Aluminium |
| Maximum Load Description |
35kg |
| Application |
Campervans |
| Position |
Double Doors |
| Capacity Description |
2 Bikes |
| Supplied With |
Bike-Block Pro S 1, Bike-Block Pro S 2, Security Strip, 2 x Rail Plus, Brackets |
| Optional Extras |
Licence Plate Carrier |
| Country of Origin |
Italy |
