Description

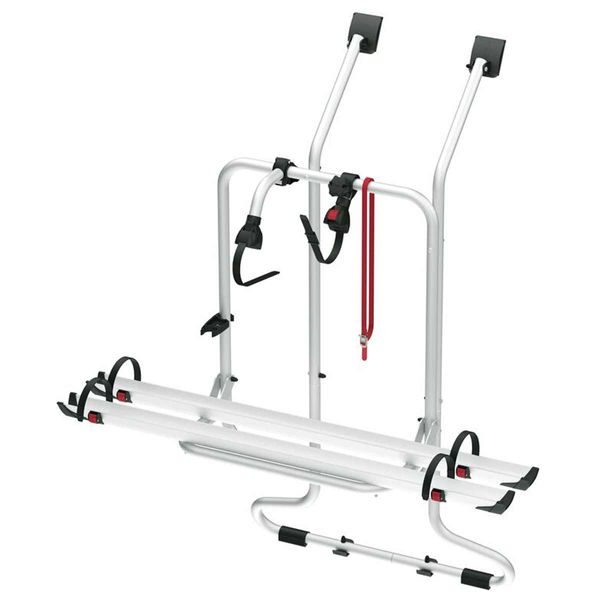

Fiamma bike carrier designed for installation on Volkswagen T4 ( ≥1990 ≤2003 ) campervans with double rear doors. This bike rack carries two standard bikes.
Supplied with:
- 1 x Bike-Block Pro 1 (Bike locking system)
- 1 x Bike-Block Pro 2 (Bike locking system)
- Security Strip
- 2 x Rail Plus (Bike rails)
- Brackets
Specs:
- Colour: Aluminium
- Bikes carried standard: 2
- Bikes carried max.: 2
- Max load: 35kg
- E-Bike: No
- Position: Double Door
- Vertical wheelbase: 138.5cm
- Horizontal wheelbase (distance between brackets): 35cm

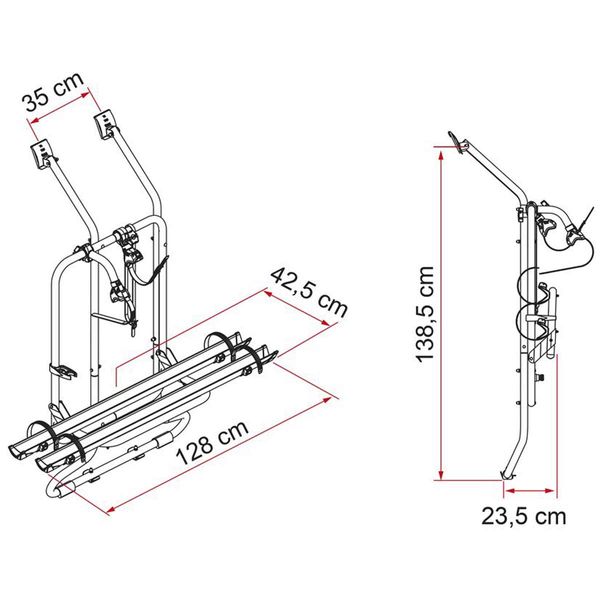

- Dimensions: 128 x 42.5 x 138.5cm (with rail support base in standard open position and in models with minimum adjustable vertical wheelbase)
- Weight: 7.9kg
- Distance between rails: 15cm
- Licence Plate Carrier: Optional - supplied separately
| Dimensions |
128 x 42.5 x 138.5cm |
| Replaces |
Fiamma 02094-22A (Nova 13342) |
| Brand |
Fiamma |
| Height Description |
1300mm |
| Width |
150mm |
| Depth |
630mm |
| Weight |
7.9kg |
| Colour |
Aluminium |
| Maximum Load Description |
35kg |
| Application |
Campervans |
| Position |
Double Doors |
| Capacity Description |
2 Bikes |
| Supplied With |
Bike-Block Pro 1, Bike-Block Pro 2, Security Strip, 2 x Rail Plus, Brackets |
| Optional Extras |
Licence Plate Carrier |
| Country of Origin |
Italy |
