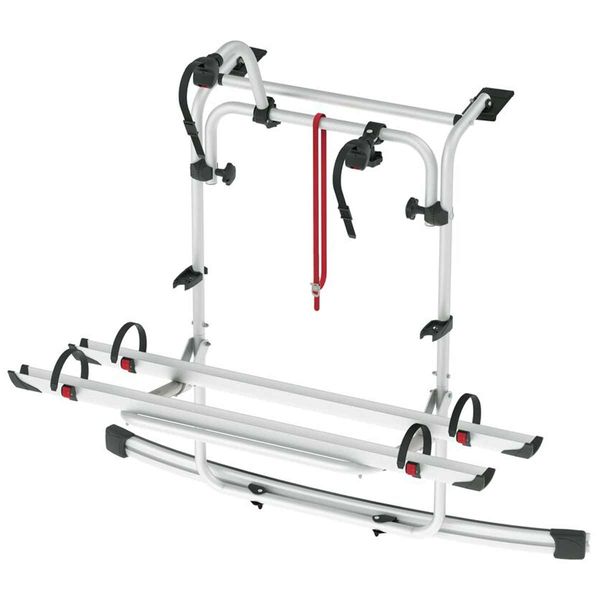

The Fiamma Carry-Bike VW Caddy is designed for installation on the tailgate of Volkswagen Caddy vehicles ≥ 2016 ≤ 2020.

The bike rack carries two bikes as supplied and can also be adapted to carry up to four bikes with the addition of Fiamma parts (available separately).

The upper structure allows an accurate adjustment of the position of the Bike-Blocks to secure the bikes. while the practical lower tensioning system allows the Carry-Bike to be safely fixed to the vehicle.

This bike rack allows the tailgate to be opened with the bike carrier mounted (without bikes on).

Supplied with:

- Bike-Block Pro 1 (Bike locking system)

- Bike-Block Pro 3 (Bike locking system)

- Security strip

- 2 x Rail Plus (Bike rails)

- Brackets

Specs:

- Colour: Aluminium

- Bikes carried standard: 2

- Bikes carried max.: 4

- Max load: 60kg

- Position: Tailgate

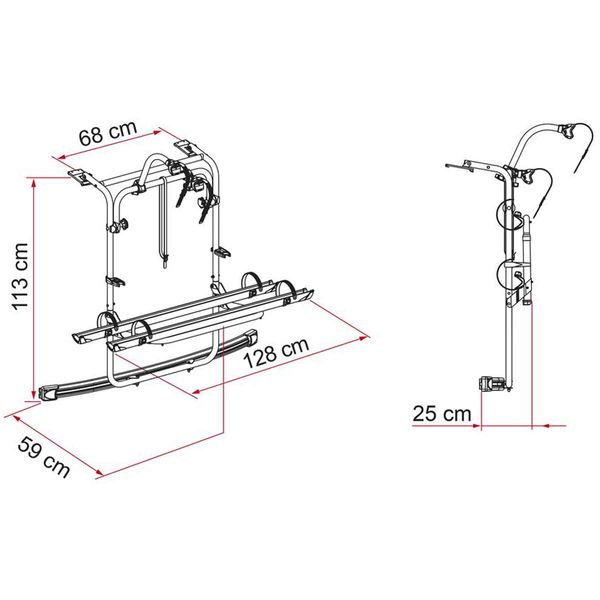

- Vertical wheelbase: 113cm

- Horizontal wheelbase (distance between brackets): 68cm

- Dimensions: 138 x 59 x 113 cm (with rail support base in standard open position and in models with minimum adjustable vertical wheelbase).

Key Features

Restyled 2023 model

Allows the tailgate to be opened with the bike carrier mounted (without bikes)

Tensioning system for safe and easy fixing of the bike carrier to the vehicle

Upper brackets designed to follow the shape of the vehicle

Dimensions	138 x 59 x 113cm
Replaces	Fiamma 02094-24A (Nova 13296)
Brand	Fiamma
Height Description	1300mm
Width	150mm
Depth	630mm
Weight	11.7kg
Colour	Aluminium
Maximum Load Description	60kg
Application	Campervans
Capacity Description	2 Bikes as standard (Maximum 4 Bikes)
Supplied With	Bike-Block Pro 1. Bike-Block Pro 3. Security Strip. 2 x Rail Quick Pro. Brackets
Optional Extras	Bike-Block Pro 2. Bike-Block Pro 4. 2 x Rail Quick Pro
Country of Origin	Italy
