Description

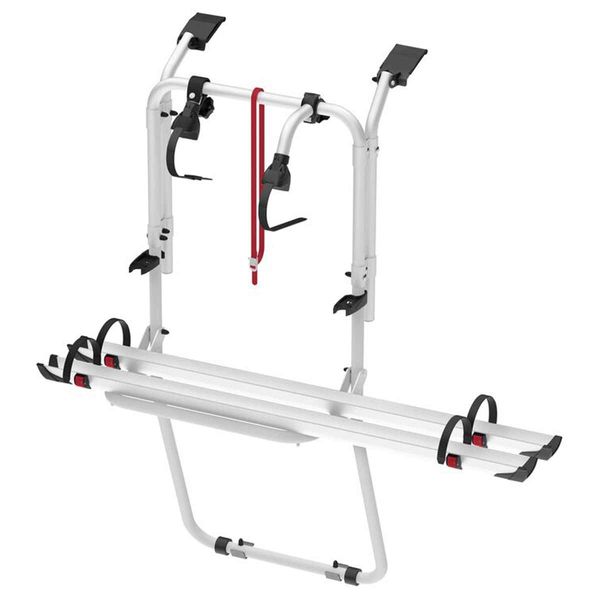

This Fiamma Carry-Bike is specifically designed for installation on Vauxhall Vivaro, Renault Trafic and Fiat Talento vans with double rear door. It can carry two standard bikes or ebikes.
Compatible with the following vehicles:
- Renault Trafic II series / Opel Vivaro A / Vauxhall Vivaro A / Nissan Primastar I-II series (≥ 2001 ≤ 2014 - H1)
- Renault Trafic III series / Nissan NV300 / Fiat Talento (≥ 2014 - H1)
- Opel Vivaro B / Vauxhall Vivaro B (≥ 2014 ≤ 2018 - H1)
Supplied with:
- 1 x Bike-Block Pro 1 (Bike locking system)
- 1 x Bike-Block Pro 3 (Bike locking system)
- Security Strip
- 2 x Rail Plus (Bike rails)
- Brackets
Specs:
- Colour: Aluminium
- Bikes carried standard: 2
- Bikes carried max.: 2
- Max load: 50kg
- E-Bike: Yes
- Position: Rear double door
- Vertical wheelbase: 144cm
- Horizontal wheelbase (distance between brackets): 55cm

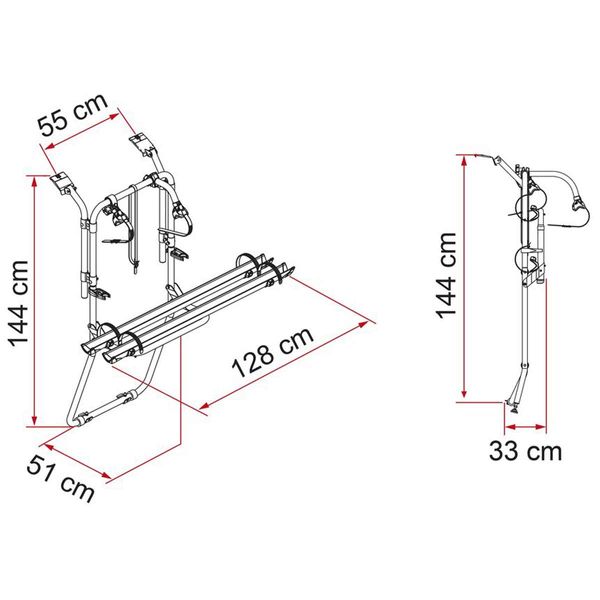

- Dimensions: 128 x 51 x 144cm (with rail support base in standard open position and in models with minimum adjustable vertical wheelbase)
- Weight: 7.3kg
- Distance between rails: 15cm
- Licence Plate Carrier: Optional, supplied separately
Key Features
- Restyled 2023 model
- Tailgate can be opened with the Carry-Bike mounted without bikes
- For vehicles with double rear door
- Structure allowing visibility of the third stop lamp
| Dimensions |
128 x 51 x 144cm |
| Replaces |
Fiamma 02093B74A (Nova 13323) |
| Brand |
Fiamma |
| Height Description |
1300mm |
| Width |
150mm |
| Depth |
630mm |
| Weight |
7.3kg |
| Colour |
Aluminium |
| Maximum Load Description |
50kg |
| Application |
Campervans |
| Position |
Rear Double Door |
| Capacity Description |
2 Bikes |
| Supplied With |
Bike Block Pro 1, Bike Block Pro 3, Security Strip, 2 x Rail Plus, Brackets |
| Optional Extras |
Licence Plate Carrier |
| Country of Origin |
Italy |
