This Fiamma Carry-Bike is specifically designed for installation on Vauxhall Vivaro, Renault Trafic and Fiat Talento vans with single rear door.
This bike rack carries two bikes as supplied but can carry up to four bikes (or two ebikes) with the addition of Fiamma parts.
Compatible with the following vehicles:
- Renault Trafic II series / Opel Vivaro A / Vauxhall Vivaro A / Nissan Primastar I-II series (≥ 2001 ≤ 2014 - H1)
- Renault Trafic III series / Nissan NV300 / Fiat Talento (≥ 2014 - H1)
Opel Vivaro B / Vauxhall Vivaro B (≥ 2014 ≤ 2018 - H1)
Supplied with:
- 1 x Bike-Block Pro 1 (Bike locking system)
- 1 x Bike-Block Pro 3 (Bike locking system)
- Security Strip
- 2 x Rail Plus (Bike rails)
- Brackets
Specs:
- Colour: Aluminium
- Bikes carried standard: 2
- Bikes carried max.: 4
- Max load: 60kg
- E-Bike: Yes
- Position: Tailgate
- Vertical wheelbase: 143cm
- Horizontal wheelbase (distance between brackets): 60cm

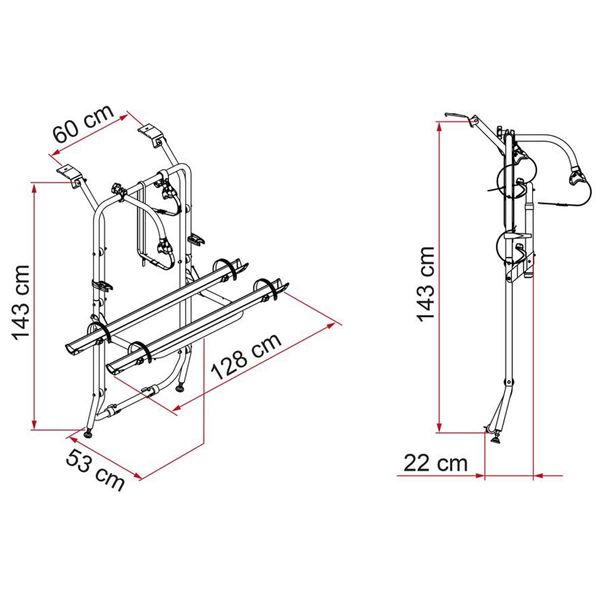

- Dimensions: 128 x 53 x 143cm (with rail support base in standard open position and in models with minimum adjustable vertical wheelbase)
- Weight: 9.1kg
- Distance between rails: 15cm
- Licence Plate Carrier: Optional, supplied separately (The licence plate carrier with control lighting is recommended).
Key Features
- Restyled 2023 model
- Tailgate can be opened with the Carry-Bike mounted without bikes
- For vehicles with single rear door
| Dimensions |
128 x 53 x 143cm |
| Replaces |
Fiamma 02093B72A (Nova 13321) |
| Brand |
Fiamma |
| Height Description |
1300mm |
| Width |
150mm |
| Depth |
630mm |
| Weight |
9.1kg |
| Colour |
Aluminium |
| Maximum Load Description |
60kg |
| Application |
Campervans |
| Position |
Tailgate |
| Capacity Description |
2 Bikes as standard (Maximum 4 Bikes) |
| Supplied With |
Bike Block Pro 1, Bike Block Pro 3, Security Strip, 2 x Rail Plus, Brackets |
| Optional Extras |
Bike Block Pro 2, Bike Block Pro 4, 2 x Rail Plus, Licence Plate Carrier |
| Country of Origin |
Italy |
