Description

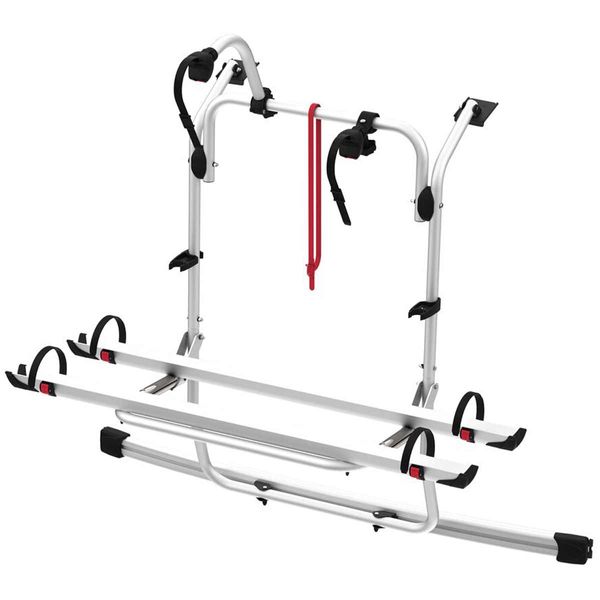

The Fiamma Caryy-Bike PSA carries two bikes as supplied and can carry up to four bikes with the addition of Fiamma parts. This model has an aluminium finish.
The upper brackets are fastened to the reinforced points on the campervan’s tailgate. The bottom anchoring adheres to the lower part of the tailgate thanks to its contoured profile that follows the shape of the vehicle.
This bike carrier is suitable for the following vehicles:
Citroen Jumpy III gen. / Spacetourer / Campster (≥2016)
Opel / Vauxhall Vivaro C (≥2019)
Opel / Vauxhall Zafira Life 2019 & Vauxhall Vivaro Life (≥2019)
Peugeot Expert III gen. / Traveller (≥2016)
Toyota Pro Ace II / Pro Ace Verso (≥2016)
Supplied with:
- Bike-Block Pro 1 (Bike locking system)
- Bike-Block Pro 3 (Bike locking system)
- Security Strip
- 2 x Rail Plus (bike rails)
Specs:
- Colour: Aluminium
- Bikes carried standard: 2
- Bikes carried max.: 4
- Max load: 60kg
- E-Bike: Yes
- Position: Tailgate
- Vertical wheelbase: 114cm
- Horizontal wheelbase (distance between brackets): 68cm

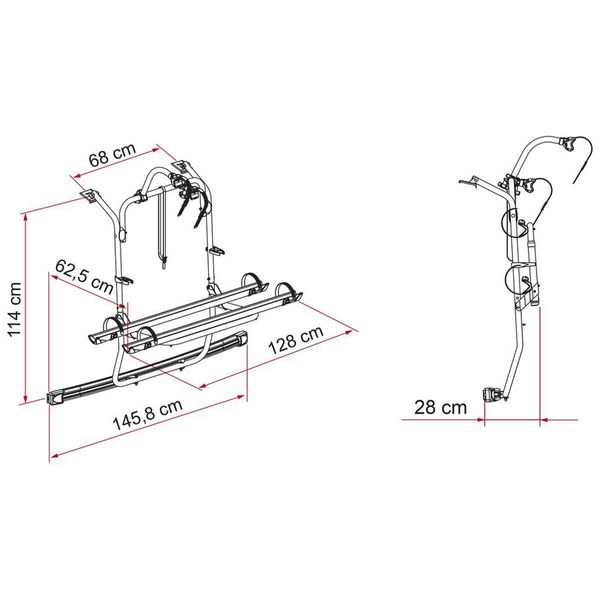

- Dimensions: 145.8 x 62.5 x 114cm (with rail support base in standard open position and in models with minimum adjustable vertical wheelbase)
- Weight: 11.3kg
- Distance between rails: 15cm
- Licence Plate Carrier: Optional. supplied separately
Key Features
Restyled 2023 model
For 2 to 4 bikes (or 2 ebikes)
Dedicated to PSA group campervans
Tailgate can be opened with the bike carrier mounted (without bikes)
| Dimensions |
145.8 x 62.5 x 114cm |
| Replaces |
Fiamma 02094-28A (Nova 13297) |
| Brand |
Fiamma |
| Height Description |
1300mm |
| Width |
150mm |
| Depth |
560mm |
| Weight |
11.3kg |
| Colour |
Aluminium |
| Maximum Load Description |
60kg |
| Application |
Campervans |
| Position |
Tailgate |
| Capacity Description |
2 Bikes as standard (Maximum 4 Bikes) |
| Supplied With |
Bike-Block Pro 1, Bike-Block Pro 3, Security Strip, 2 x Rail Plus |
| Optional Extras |
Bike-Block Pro 2, Bike-Block Pro 4, Rail Plus x 2, Licence Plate Carrier |
| Country of Origin |
Italy |
