Description

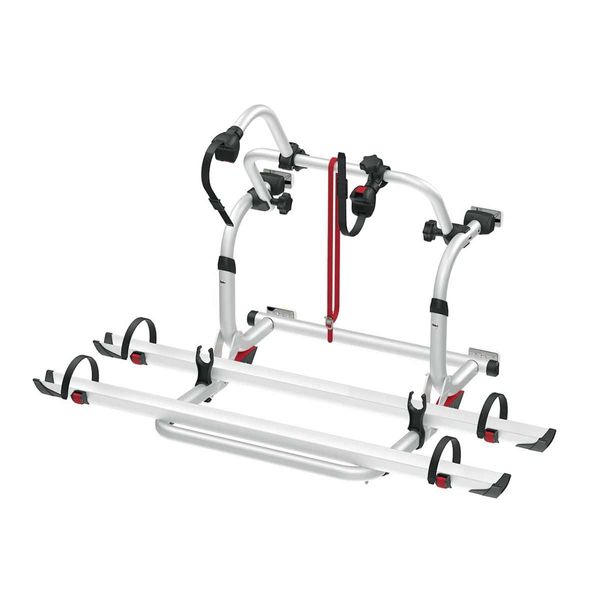

The Fiamma Pro C Carry-Bike is designed for installation under the rear window of motorhomes, allowing the window to still be opened. This Pro C N model is for vehicles that have the Fiamma original bracket pre-installed on them.
The bike carrier carries two bikes as supplied, or can be adapted to carry up to four standard bikes (or two e-bikes) with additional parts (available separately).
The compact bike carrier is height adjutable from 40 to 80cm. It is supplied with the bottom support bar fixing system.
The Fiamma Pro C N bike carrier is supplied with:
- Bike-Block Pro 1 (bike fixing system)
- Bike-Block Pro 3 (bike fixing system)
- Security Strip
- 2 x Rail Plus (bike rails)
- Brackets
- Vertical wheelbase: 40-80cm
- Horizontal wheelbase (distance between brackets): 60cm
- Distance between bike rails: 15cm
The carrier can be adapted to carry up to four bikes with the addition of Bike-Block Pro 2 and 4, and two additional Rail Plus rails.
This bike carrier can also be installed on the rear walls of caravans, contact our customer service team for advice.

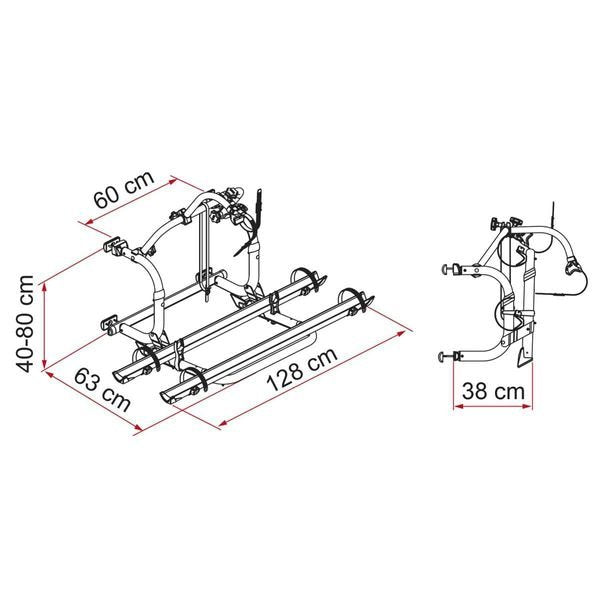

Dimensions: 128 x 63 x 40cm (with rail support base in standard open position and in models with minimum adjustable vertical wheelbase).
Key Features
Restyled 2023 model
6060 aluminium tubes with oval section
Height-adjustable frame
Carries 2 bikes as supplied or up to 4 standard bikes (or 2 ebikes) with added parts
Easy Position for the installation of offset rails
Bull Shock Absorber for absorbing shocks and vibrations
Bike-Block Pro scratch-proof bike locks
Sturdy rails with reinforced base delivered with Quick-Safe straps
Rack Holder safety carrier lock
Support Bar Kit: lower fixings with bar for easy installation
Quick Lock for quick and safe locking of the wheel to the rail
| Dimensions |
128 x 63 x 40cm |
| Replaces |
Fiamma 02094-10V (Nova 12119) |
| Brand |
Fiamma |
| Height Description |
1300mm |
| Width |
150mm |
| Depth |
560mm |
| Weight |
9kg |
| Colour |
Aluminium |
| Maximum Load Description |
60kg |
| Application |
Motorhomes |
| Position |
Rear Wall |
| Capacity Description |
2 Bikes as standard (Maximum 4 Bikes) |
| Supplied With |
Bike Block Pro 1, Bike Block Pro 3, Security Strip, 2 x Rail Plus, Brackets |
| Optional Extras |
Bike Block Pro 2, Bike Block Pro 4, 2 x Rail Plus |
| Country of Origin |
Italy |
