Description

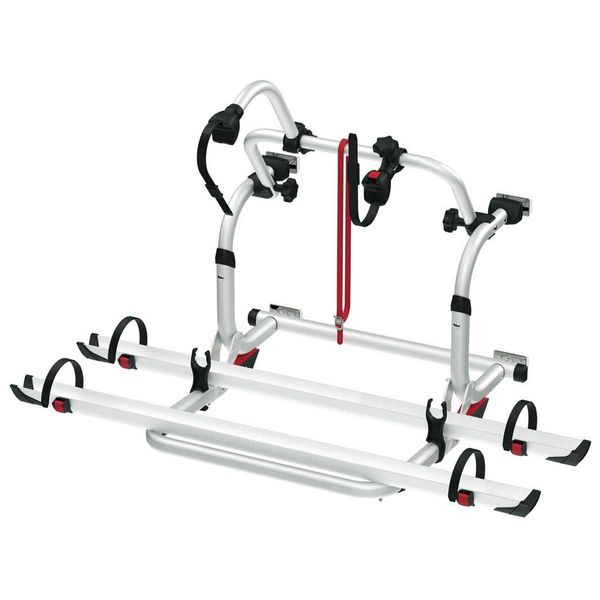

The Fiamma Pro C Carry-Bike is designed for installation under the rear window of motorhomes, allowing the window to still be opened.
The bike carrier carries two bikes as supplied, or can be adapted to carry up to four standard bikes (or two e-bikes) with additional parts (available separately).
The compact bike carrier is height adjustable from 40 to 80cm. It is supplied with the bottom support bar fixing system.
The Fiamma Pro C bike carrier is supplied with:
- Bike-Block Pro 1 (bike fixing system)
- Bike-Block Pro 3 (bike fixing system)
- Security Strip
- 2 x Rail Plus (bike rails)
- Brackets
- Vertical wheelbase: 40-80cm
- Horizontal wheelbase (distance between brackets): 60cm
- Distance between bike rails: 15cm
The carrier can be adapted to carry up to four bikes with the addition of Bike-Block Pro 2 and 4, and two additional Rail Plus rails.
This bike carrier can also be installed on the rear walls of caravans, contact our customer service team for advice.

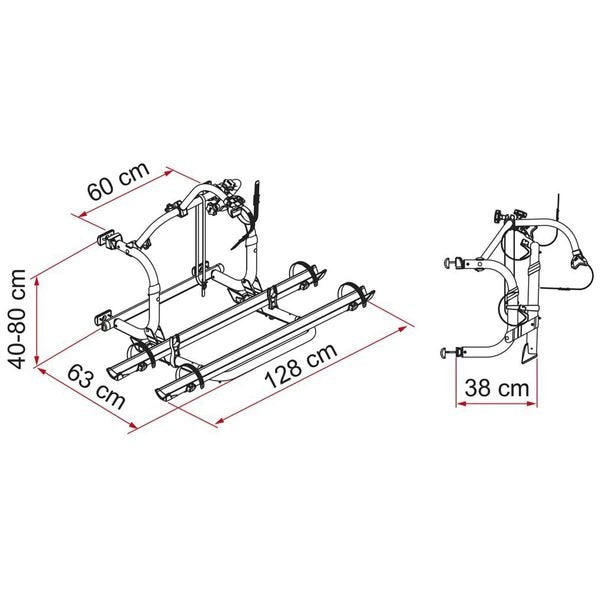

Dimensions: 128 x 63 x 40cm (with rail support base in standard open position and in models with minimum adjustable vertical wheelbase).
Key Features
Restyled 2023 model
6060 aluminium tubes with oval section
Height-adjustable frame
Carries 2 bikes as supplied or up to 4 standard bikes (or 2 ebikes) with added parts
Easy Position for the installation of offset rails
Bull Shock Absorber for absorbing shocks and vibrations
Bike-Block Pro scratch-proof bike locks
Sturdy rails with reinforced base delivered with Quick-Safe straps
Rack Holder safety carrier lock
Support Bar Kit: lower fixings with bar for easy installation
Quick Lock for quick and safe locking of the wheel to the rail
| Dimensions |
128 x 63 x 40cm |
| Replaces |
Fiamma 02094-10A (Nova 12118) |
| Brand |
Fiamma |
| Height Description |
1300mm |
| Width |
150mm |
| Depth |
560mm |
| Weight |
9kg |
| Colour |
Aluminium |
| Maximum Load Description |
60kg |
| Application |
Motorhomes |
| Position |
Rear Wall |
| Capacity Description |
2 Bikes as standard (Maximum 4 Bikes) |
| Supplied With |
Bike Block Pro 1, Bike Block Pro 3, Security Strip, 2 x Rail Plus, Brackets |
| Optional Extras |
Bike Block Pro 2, Bike Block Pro 4, 2 x Rail Plus |
| Country of Origin |
Italy |
