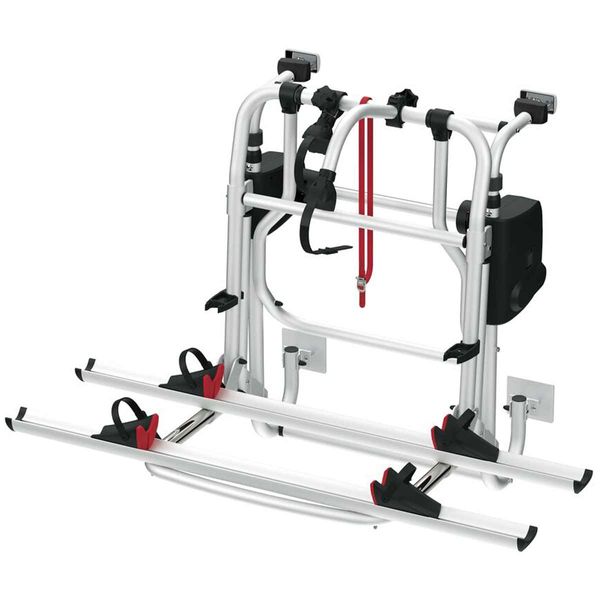

The Fiamma Motor Lift 77 is one of the most practical motorised bike carrier models, suitable for all types of motorhome.
The Carry-Bike can be installed on the back wall of the motorhome. Wall fixing points with vertical wheelbase from 68 to 108 cm.
Two Rail Premium bike rails are delivered as standard and can carry any sort of bike. The bike carrier can also be adapted to carry up to four standard bikes (or two e-bikes) with additional parts (available separately).

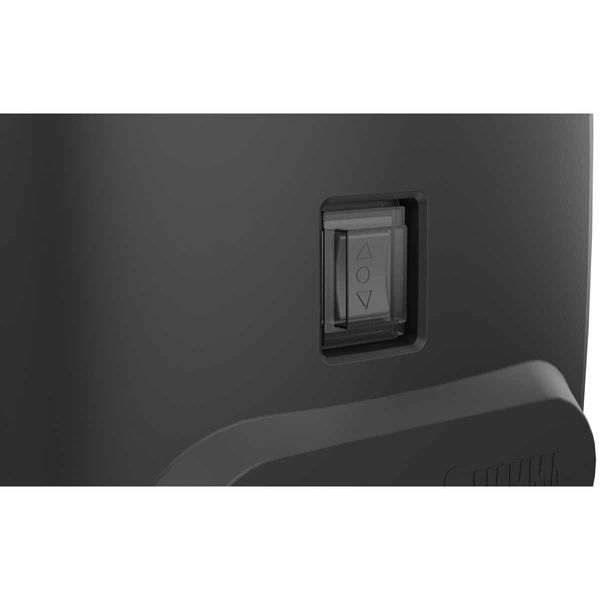

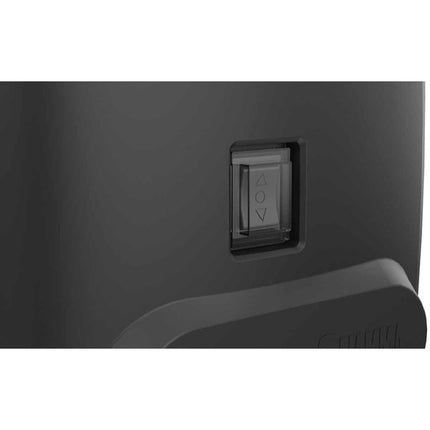

The support rail lowers by 77cm for effortless loading and unloading of bicycles. The 12V lift is activated by push-button for easy ascent and descent.
The Fiamma Pro C bike carrier is supplied with:
- Bike-Block Pro 1 (bike fixing system)
- Bike-Block Pro 3 (bike fixing system)
- Security Strip
- 2 x Rail Plus (bike rails)
- Brackets
The carrier can be adapted to carry up to four bikes with the addition of Bike-Block Pro 2 and 4, and two additional Rail Plus rails.

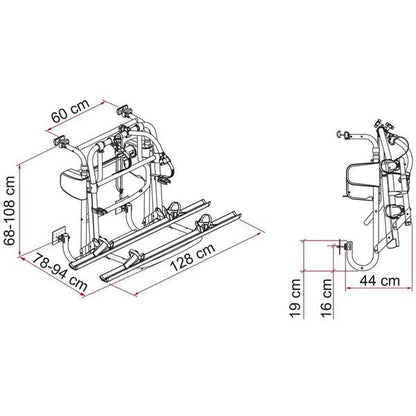

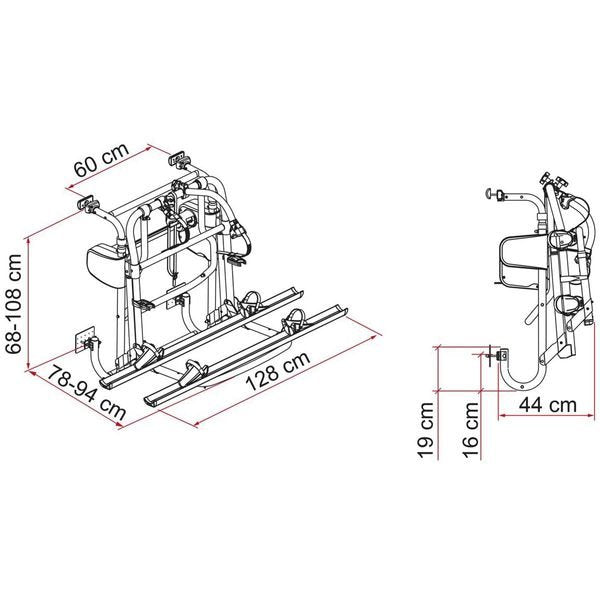

Dimensions: 128 x 78 x 68cm (with rail support base in standard open position and in models with minimum adjustable vertical wheelbase).
- Vertical wheelbase: 68 to 108cm
- Horizontal wheelbase (distance between brackets): 60cm
- Distance between bike rails: 15cm
Key Features
Restyled 2023 model

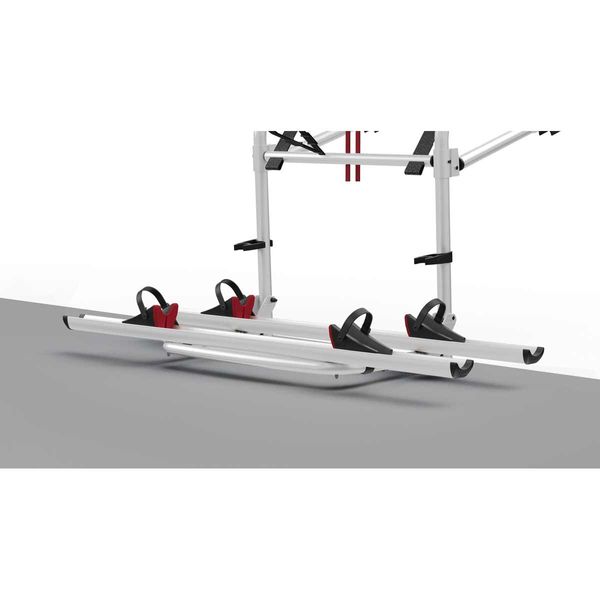

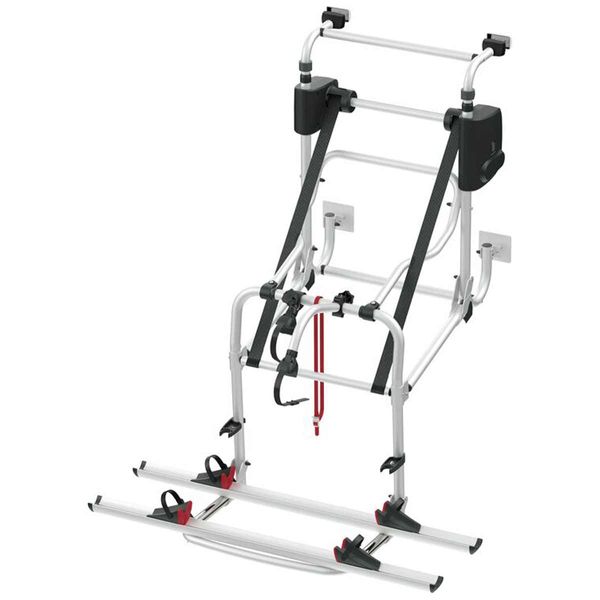

Dropping support rail that lowers by 77cm
Bike rails slide horizontally for easy positioning of the bikes
Height-adjustable structure
12V supply
| Dimensions |
128 x 78 x 68cm |
| Brand |
Fiamma |
| Height Description |
68cm |
| Width |
128cm |
| Depth |
78cm |
| Weight |
18.3kg |
| Colour |
Aluminium |
| Maximum Load Description |
60kg |
| Application |
Motorhomes |
| Position |
Rear Wall |
| Capacity Description |
2 Bikes as standard (Maximum 4 Bikes) |
| Supplied With |
Bike Block Pro 1, Bike Block Pro 3, Security Strip, 2 x Rail Premium |
| Optional Extras |
Bike Block Pro 2, Bike Block Pro 4, 2 x Rail Premium |
