Description

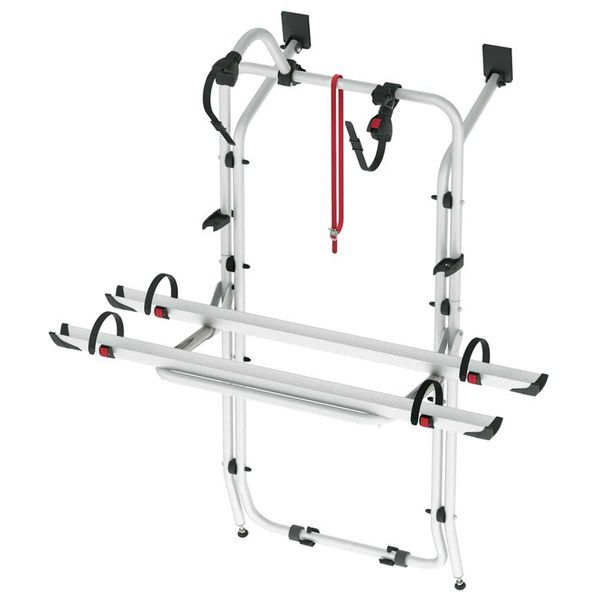

Fiamma bike carrier designed for installation on Mercedes Viano Vito I series and Marcolo Polo I series with single rear door (≥ 1996 ≤ 2003).
This bike rack is supplied as standard with two rails for two bikes, but can easily carry up to four bikes (or 2 ebikes) with additional Fiamma parts.
Supplied with:
- 2 x Rail Plus (bike rails)
- Brackets
Specs:
- Colour: Aluminium
- Bikes carried standard: 2
- Bikes carried max.: 4
- Max load: 60kg
- E-Bike: Yes
- Position: Tailgate
- Vertical wheelbase: 138cm
- Horizontal wheelbase (distance between brackets): 60cm

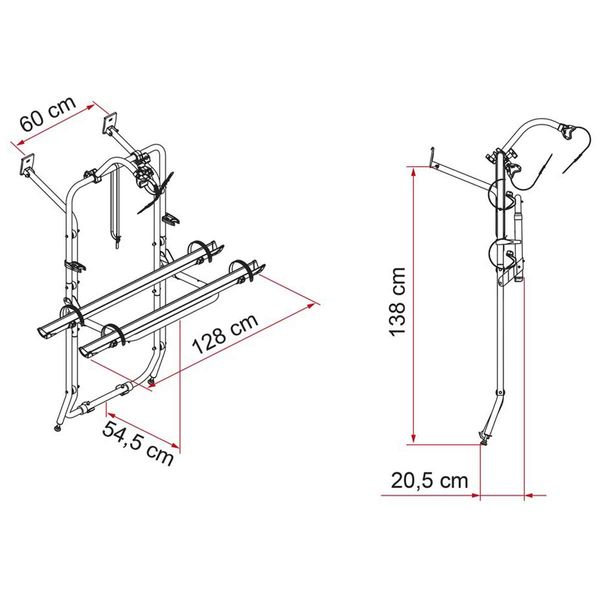

- Dimensions: 128 x 54.5 x 138cm (with rail support base in standard open position and in models with minimum adjustable vertical wheelbase)
- Weight: 9.2kg
- Distance between rails: 15cm
- Licence Plate Carrier: Supplied separately
Key Features
Restyled 2023 model
Allows the tailgate to be opened with the bike carrier mounted (without bikes)
| Dimensions |
128 x 54.5 x 138cm |
| Replaces |
Fiamma 02093A05A (Nova 13358) |
| Brand |
Fiamma |
| Height Description |
1300mm |
| Width |
150mm |
| Depth |
630mm |
| Weight |
9.2kg |
| Colour |
Aluminium |
| Maximum Load Description |
60kg |
| Application |
Campervans |
| Position |
Tailgate |
| Capacity Description |
2 Bikes as standard (Maximum 4 Bikes) |
| Supplied With |
2 x Rail Plus, Brackets |
| Optional Extras |
2 x Rail Plus, Bike-Block Pro2, Bike-Block Pro 4 |
| Country of Origin |
Italy |
