Description

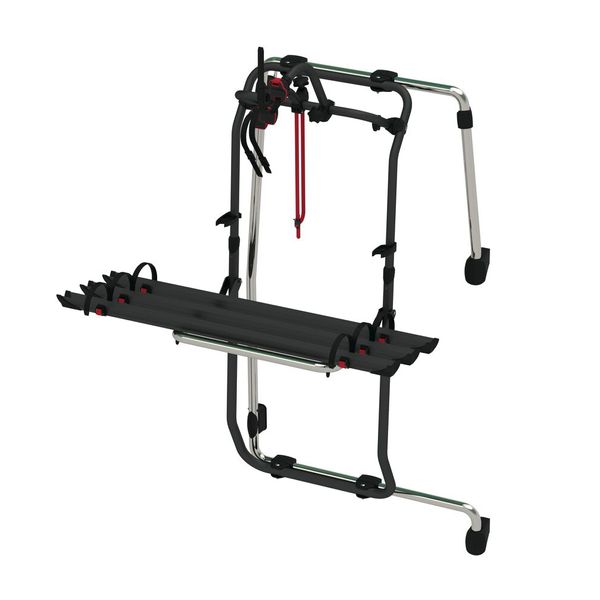

A Fiamma bike carrier for use on Mercedes Sprinter ≥ 2018 high roof and super high roof vehicles.
Characterised by its solid stainless steel supporting structure, this bike carrier holds three bikes and is installed using the vehicle’s standard mounting points.
This Frame Sprinter model carrier is designed for installation on the right door, leaving the left door free for optional installation of a ladder to access the roof of the vehicle.

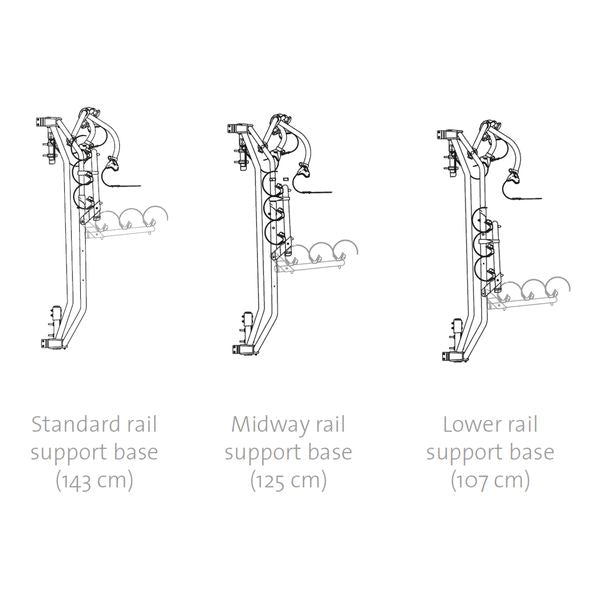

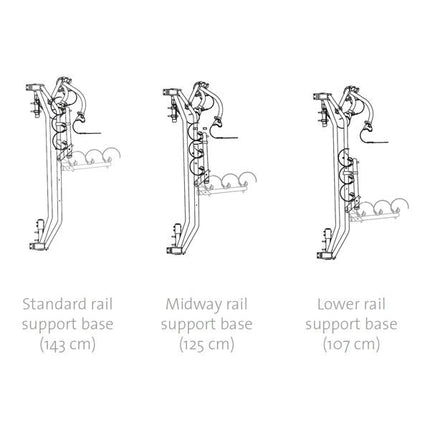

The bike rail support bases can be mounted in three positions: standard, middle or a lowered position. If the support rail covers the vehicle's rear lights in the middle and lowered positions, a Fiamma license plate bar with lights must be used, see product codes 14786 (alloy version) or 14787 (Deep Black version).
- Carrier colour: Deep Black
- Mounting: Rear double door
- Vertical wheelbase: 168cm

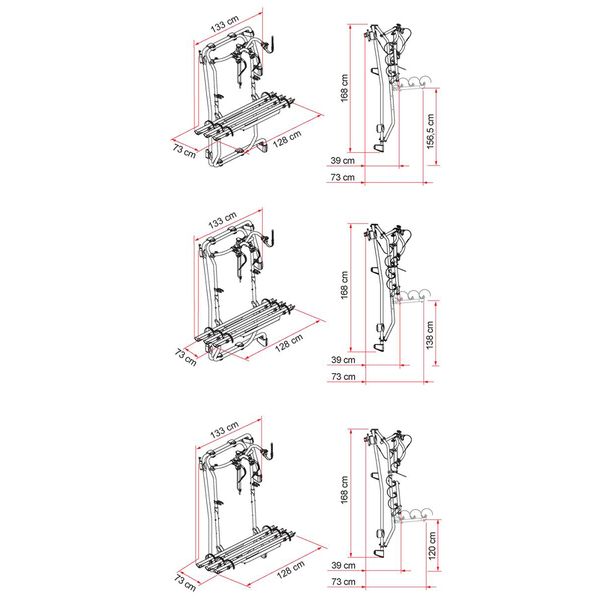

- Dimensions: 133 x 73 x 168cm
- Rail type: Rail Quick Pro
- Bike Block: Pro S 1, Pro S 2, Pro S 3
- Distance between rails: 15cm
- Licence plate carrier: Optional (must be used when rail supports cover the vehicle's rear lights)
Key Features
Suitable for three bikes
Stainless steel AISI 304 rail support base
Vehicle rear door opens even with bikes mounted
Optional ladder can be mounted on the left door
| Brand |
Fiamma |
| Type |
Sprinter Bike Carriers |
| Weight |
19.9kg |
| Colour |
Black |
| Primary Construction |
Aluminium |
| Maximum Load Description |
50kg |
| Application |
Van Conversions |
| Position |
Rear Double Door |
| Capacity Description |
3 Bikes |
| Supplied With |
Bike Block Pro S 1, Bike Block Pro S 2, Bike Block Pro S 3, 3 x Rail Quick Pro |
| Optional Extras |
Rail Premium S, Licence Plate Carrier |
| Country of Origin |
Italy |
Downloads
Installation Guide Fiamma Frame Sprinter 3 Bikes
