Description

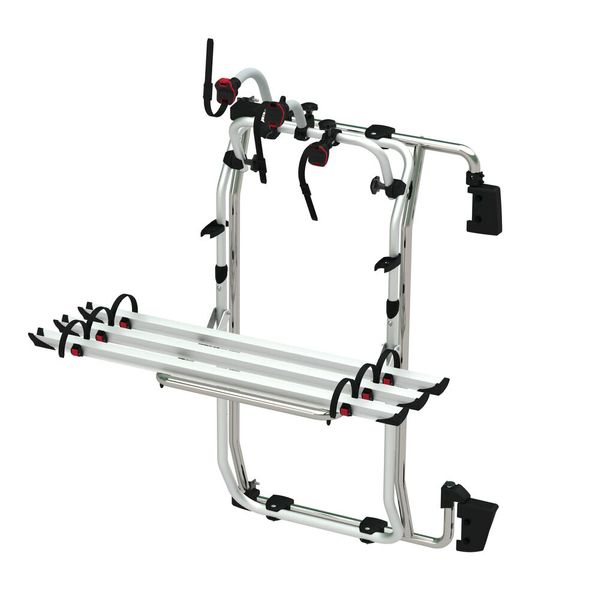

A Fiamma bike carrier for use on Fiat Ducato III-IV Series, Citroen Jumper II-III Series and Peugeot Boxer II-III Series (≥2006 - H2/H3) van conversions with double rear doors.
Characterised by its solid stainless steel supporting structure, this bike carrier holds three bikes and is installed using the standard attachment points on the vehicle.
This Frame Ducato model carrier is designed for installation on the right door, leaving the left door free for optional installation of a ladder to access the roof of the vehicle.

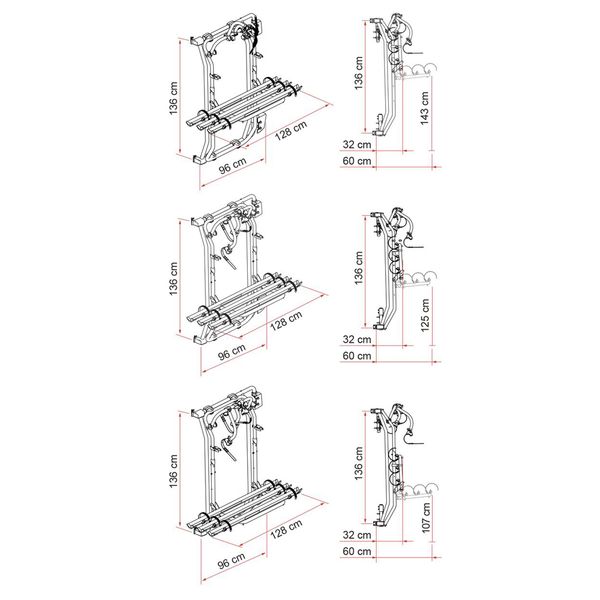

The bike rail support bases can be mounted in three positions: standard, middle or a lowered position. If the support rail covers the vehicle's rear lights in the middle and lowered positions, a Fiamma license plate bar with lights must be used, see product codes 14786 (alloy version) or 14787 (Deep Black version).
The product can be installed on:
- Standard original vehicles (not modified)
- Campervans with a rear window with a protrusion of less than 9mm
- Campervans with a rear window with a protrusion of more than 9mm and distance from the edges of the tailgate greater than 100mm
Please note, this bike carrier is not suitable for vehicles with 270° hinge system.
- Carrier colour: Aluminium
- Mounting: Rear double door
- Vertical wheelbase: 136cm
- Dimensions: 128 x 60 x 136cm
- Rail type: Rail Quick Pro
- Bike Block: Pro S 2/ Pro S 3
- Distance between rails: 15cm
- Licence plate carrier: Optional (must be used when rail supports cover the vehicle's rear lights)
Key Features
Suitable for three bikes
Stainless steel rail support base to withstand load stress
Supporting structure made of stainless steel for maximum fastening
Safe installation using vehicle's hinge system
Right hand door installation leaves left door free for optional ladder
Rack Holder safety carrier lock
Quick Lock for quick and safe locking of the wheel to the rail
| Replaces |
13383 |
| Brand |
Fiamma |
| Type |
Ducato Bike Carriers |
| Weight |
21kg |
| Colour |
Aluminium |
| Primary Construction |
Aluminium |
| Maximum Load Description |
50kg |
| Application |
Van Conversions |
| Position |
Rear Double Door |
| Capacity Description |
3 Bikes |
| Supplied With |
Bike Block Pro S 2, Bike Block Pro S 3, 3 x Rail Quick Pro, Brackets |
| Optional Extras |
Licence Plate Carrier |
| Country of Origin |
Italy |
Downloads
Installation Guide Fiamma Frame Ducato 3 Bikes
