Description

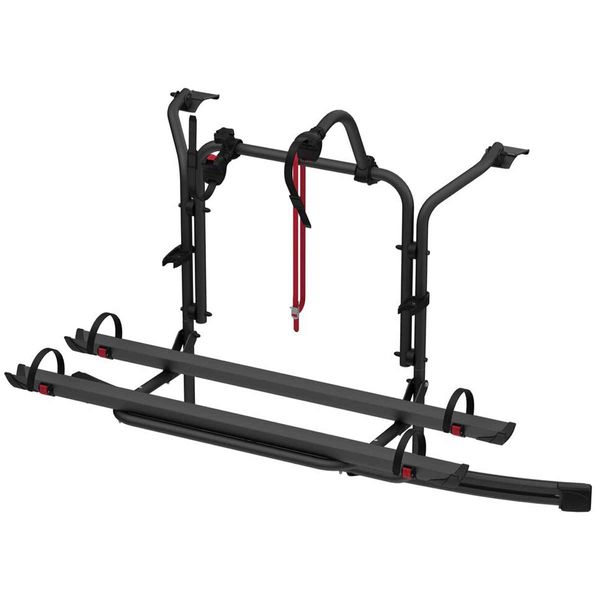

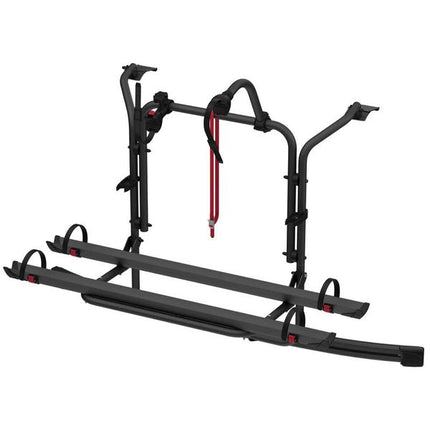

Fiamma bike carrier designed for installation on Ford Transit / Tourneo Custom single tailgate (≥ 2012 - H1) vehicles and on models with a lift roof or raised roof.
This bike carrier adheres to the lower part of the tailgate thanks to its curved profile that follows the shape of the vehicle. It carries two bikes as standard or three bikes (two ebikes) with additional Fiamma parts.
Supplied with:
- 1 x Bike-Block Pro 1 (Bike locking system)
- 1 x Bike-Block Pro 3 (Bike locking system)
- Security Strip
- 2 x Rail Plus (Bike rails)
- Brackets
Specs:
- Colour: Deep Black
- Bikes carried standard: 2
- Bikes carried max.: 3
- Max load: 50kg
- E-Bike: Yes
- Position: Tailgate

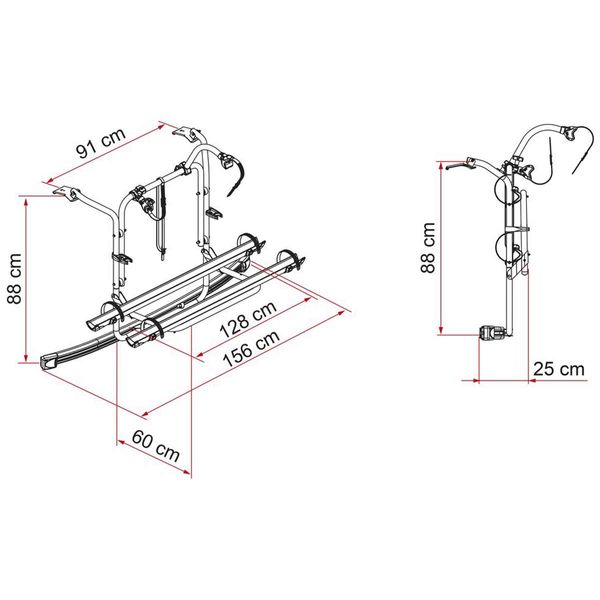

- Vertical wheelbase: 88cm
- Horizontal wheelbase (distance between brackets): 91cm
- Dimensions: 156 x 60 x 88cm (with rail support base in standard open position and in models with minimum adjustable vertical wheelbase)
- Weight: 8.6kg
- Distance between rails: 15cm
- Licence Plate Carrier: Optional - supplied separately
Key Features
Restyled 2023 model
Fits vehicles with single tailgate and also for models with lift roof
Allows the tailgate to be opened with the bike carrier mounted (without bikes)
| Dimensions |
156 x 60 x 88cm |
| Replaces |
Fiamma 02094B07A (Nova 13337) |
| Brand |
Fiamma |
| Height Description |
1300mm |
| Width |
150mm |
| Depth |
560mm |
| Weight |
8.6kg |
| Colour |
Black |
| Primary Construction |
Aluminium |
| Maximum Load Description |
50kg |
| Application |
Campervans |
| Position |
Tailgate |
| Capacity Description |
2 Bikes as standard (Maximum 3 Bikes) |
| Supplied With |
Bike-Block Pro 1, Bike-Block Pro 3, Security Strip, 2 x Rail Plus, Brackets |
| Optional Extras |
Bike-Block Pro 2, 1 x Rail Plus, Licence Plate Carrier |
| Country of Origin |
Italy |
