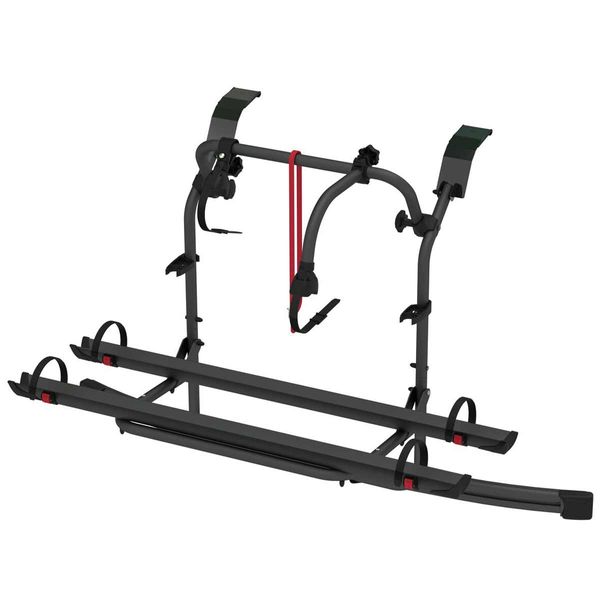

Fiamma Carry-Bike designed for installation on Ford Transit Custom Nugget / Nugget Plus vehicles with raised roof (highroof). This bike rack fixes to the lower part of the tailgate thanks to the curved profile that follows the shape of the vehicle.
This bike carrier is designed to carry two standard bikes or two ebikes, and can be adapted to carry three bikes with the addition of Fiamma parts.
Suitable for:
- Ford Transit Custom Nugget (≥ 2015)
- Ford Transit Custom Nugget Plus (≥ 2012)
- Ford Cap Land (≥ 2015) - Ford Cap Fan (≥ 2015 - ≤ 2018 ) - Ford Cap Coast (≥ 2018)
- Ford Cap Life (≥ 2019) - H1
Supplied with:
- 1 x Bike-Block Pro 1 (Bike locking system)
- 1 x Bike-Block Pro 3 (Bike locking system)
- Security Strip
- 2 x Rail Plus (Bike rails)
- Brackets
Specs:
- Colour: Deep Black
- Bikes carried standard: 2
- Bikes carried max.: 3
- Max load: 50kg
- E-Bike: Yes
- Position: Tailgate
- Vertical wheelbase: 80cm
- Horizontal wheelbase (distance between brackets): 68cm

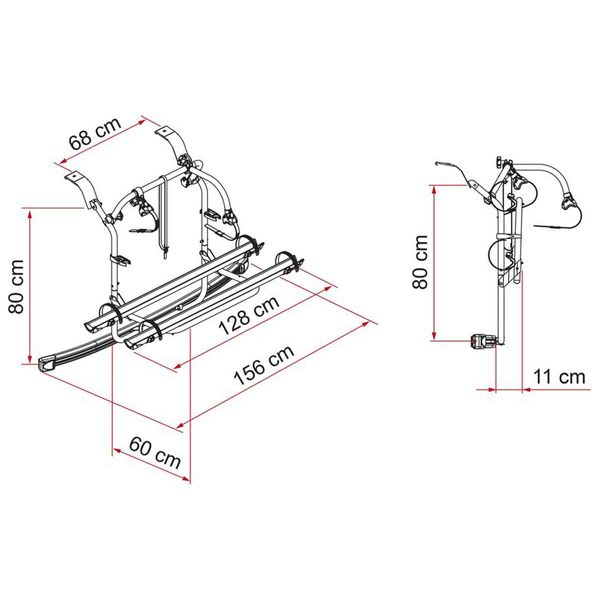

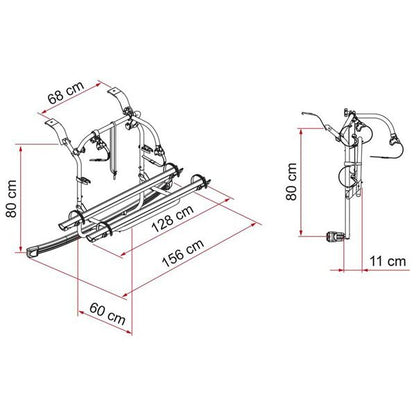

- Dimensions: 156 x 60 x 80cm (with rail support base in standard open position and in models with minimum adjustable vertical wheelbase)
- Distance between rails: 15cm
- Licence Plate Carrier: Optional, supplied separately
Key Features
Restyled 2023 model
For Ford Transit Custom Nugget / Nugget Plus with raised roof
Secures to the lower part of the tailgate thanks for the curved profile
Tailgate can be opened with the Carry-Bike mounted without bikes
| Dimensions |
156 x 60 x 80cm |
| Replaces |
Fiamma 02094B07A (Nova 13336) |
| Brand |
Fiamma |
| Height Description |
1300mm |
| Width |
150mm |
| Depth |
560mm |
| Weight |
8.4kg |
| Colour |
Black |
| Maximum Load Description |
50kg |
| Application |
Campervans |
| Position |
Double Door |
| Capacity Description |
2 Bikes as standard (Maximum 3 Bikes) |
| Supplied With |
Bike-Block Pro 1, Bike-Block Pro 3, Security Strip, 2 x Rail Plus, Brackets |
| Optional Extras |
Bike-Block Pro 2, 2 x Rail Plus, Licence Plate Carrier |
| Country of Origin |
Italy |
