Description

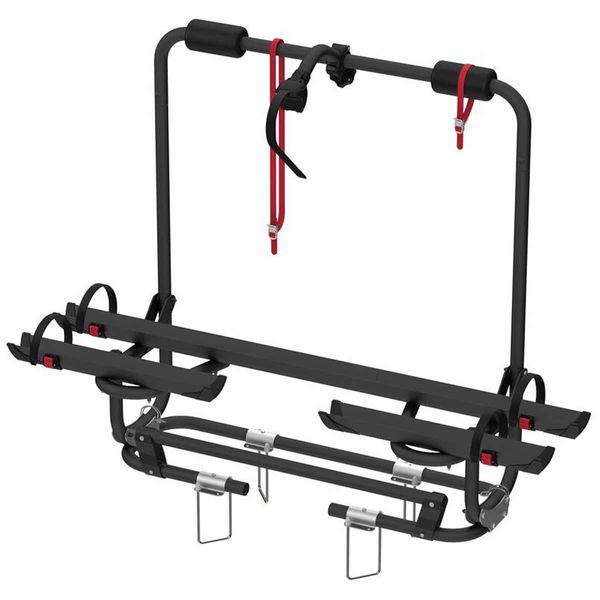

The Fiamma Carry-Bike Caravan XL A Pro 200 bike carrier is designed for the front of a caravan and can be installed on standard A-frame without the need to drill holes.
The bike rack carries two bikes and the upper structure of the rack pivots forward allowing access to the caravan storage compartment (when bikes are not mounted).
The XL Pro is equipped with the external rail in two pieces to grant maximum possibility of installation and use. This model has a Deep Black finish.
Supplied with:
- 2 x Security strip
- Bike-Block Pro 2 (fixing block)
- 2 x Rail Plus (bike rails)
Brackets
Specs:
- Colour: Deep Black
- Vehicle: Caravan
- Bikes carries as standard: 2
- Bike carried max.: 2
- Max load: 50kg
- Position: A frame
- Dimensions: 128 x 38 x 100cm (with rail support base in standard open position and in models with minimum adjustable vertical wheelbase)
- Weight: 9.4kg
- Distance between rails: 20cm
- A-frame minimum size: 34.2cm
Key Features
- Restyled 2023 model
- Installation without drilling holes on standard A-frames
- Upper structure pivots forward allowing access to the storage compartment (without bikes mounted)
- Installation brackets supplied as standard
- Protective bumpers to protect the bike from impacts with the bike carrier
- Quick Lock quick and safe locking of the wheel to the rail
- Bike-Block to securely lock the bike
- Security block locks the support rail during transport
| Dimensions |
128 x 38 x 100cm |
| Replaces |
Fiamma 02093G32A (Nova 12752) |
| Brand |
Fiamma |
| Height Description |
1300mm |
| Width |
150mm |
| Depth |
560mm |
| Weight |
9.4kg |
| Colour |
Black |
| Maximum Load Description |
50kg |
| Application |
Caravans |
| Position |
A Frame |
| Capacity Description |
2 Bikes |
| Supplied With |
Bike-Block 2, 2 x Rail Plus, 2 x Security Strip, Brackets |
| Country of Origin |
Italy |
