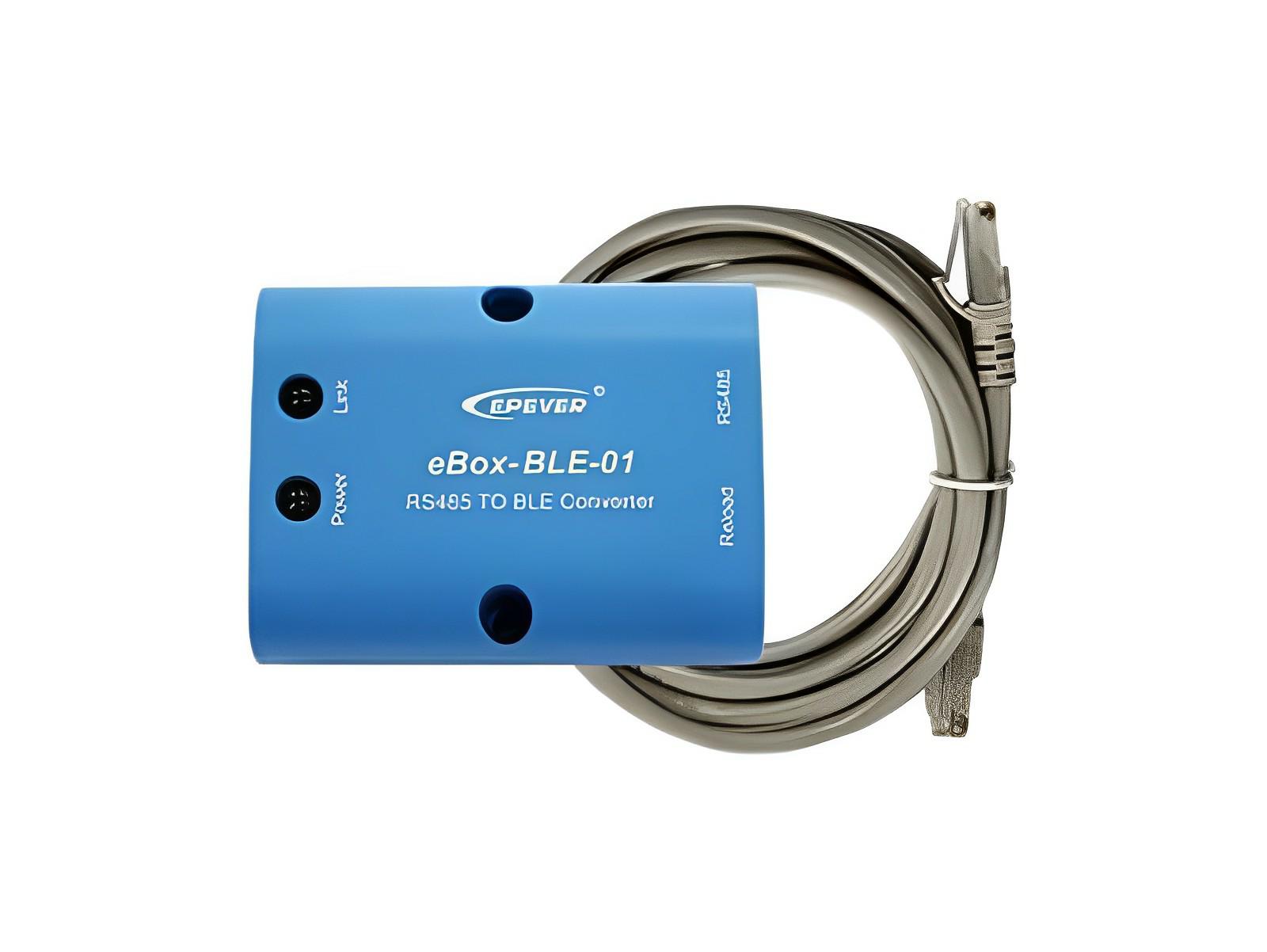

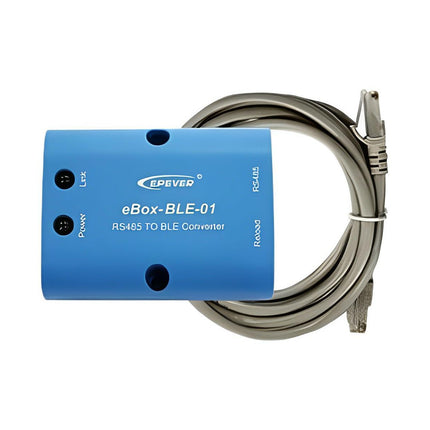

| eBox-Bluetooth Adapter |
| Adapter which can make certain compatible solar controllers and inverters function via Bluetooth communication for wireless monitoring, and parameter settings with a mobile phone APP. |
| Features |
|
| Realize wireless monitoring function of solar controller and inverter |
| Support mobile phone APP, plug and play, simple and convenient to set |
| Use high performance, ultra-low power consumption Bluetooth dedicated chip |
| Adopt Bluetooth 4.0 and BLE technology |
| Fast communication, strong anti-interference ability |
| No need of external power supply |
| Communication distance up to 10m |
| Master reset adapter |
|
| Technical Specifications |
|
| Input voltage eBox-BLE-01: 5VDC (Direct powered by RS485 port) |
| Standby power consumption: 0.04W |
| Operation power consumption: 0.05W |
| Communication distance: 10m |
| Port baud rate 300bps~230400bps (Default115200) |
| Communication: RS485 to BLE |
| Interface type: RJ45 |
| Connecting cable: Standard network cable (Parallel cable) |
| Overall dimension: 51 x 67 x 24.5mm |
| Mounting dimension: 41.2mm |
| Mounting hole size: 3.2mm |
| Working temperature: -20~70 |
| Enclosure: IP30 |
| Net weight: 37g |
