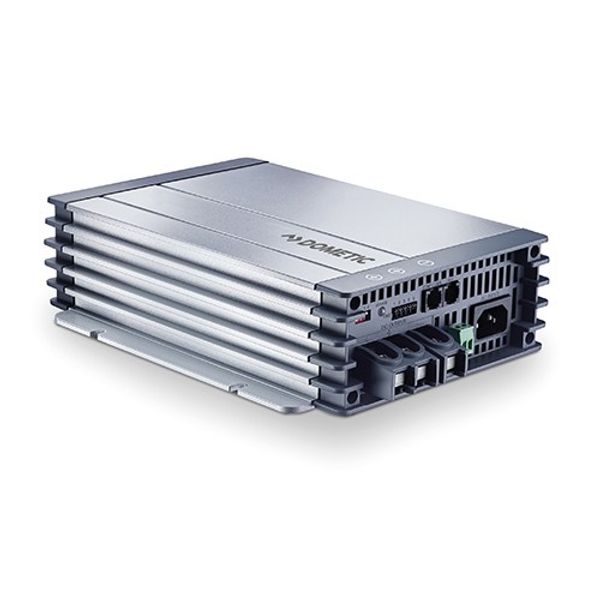

The latest charging technology, ultra-compact design and lightweight. This automatic battery charger is fast and easy to install. It can charge three batteries simultaneously and be used all over the world with its input voltage range of 110–230 V. Ideal for frequent travellers and globetrotters. 35 A, 12 V
• Charge Outputs: 3
• Overload/short-circuit protection
• Recommended battery capacity: 100 - 400 Ah
• Sleep mode
• Maximum charging current: 35A
• Dimensions (WxHxD): 179 x 63 x 275mm
• Input voltage range: 90-260 volts AC/50-60 Hz
• Weight: approx. 1.9kg
• End-of-charging voltage: 14.4 - 14.7 volts DC
| Brand |
Dometic |
| Type |
Battery Chargers |
| Voltage Description |
12V DC |
| Charge Characteristic |
6-stage IU0U curve |
| Height Description |
63mm |
| Width |
179mm |
| Depth |
274mm |
| Weight |
1.9kg |
| Material |
Aluminium |
| Colour |
Silver |
| Outlet |
3.0 |
| Operating Temperature |
-20 to 50°C |
| Amps Description |
35A |
| Capacity Description |
Recommended Battery Capacity: 100 - 400 Ah |
| Connections Description |
M6 Studs |
| Charge Current |
35.0 |
| Input Frequency [Hz] |
50-60 hz |
| External Temperature Sensor |
Internal, - 2mV / °C (- 1mV / °F) per cell |
