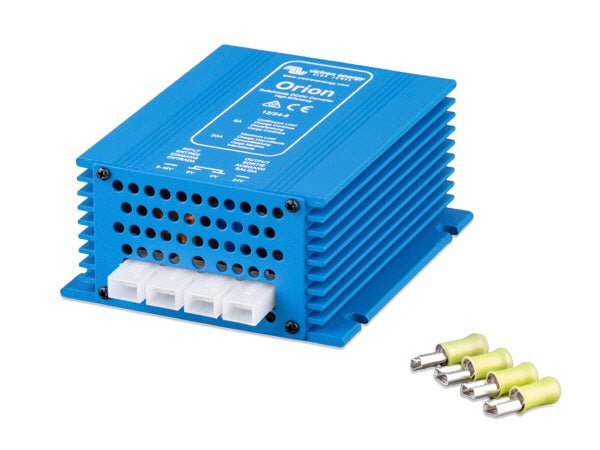

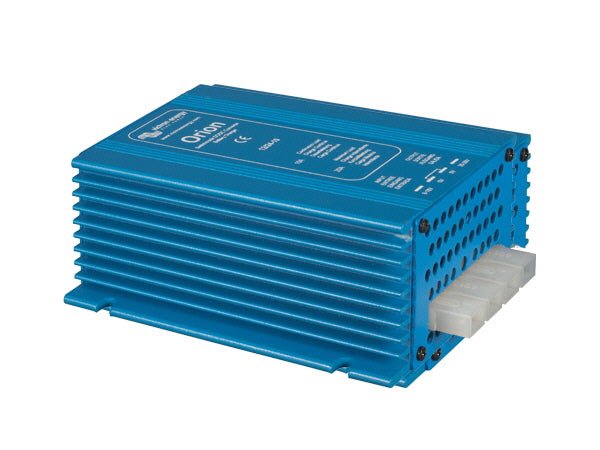

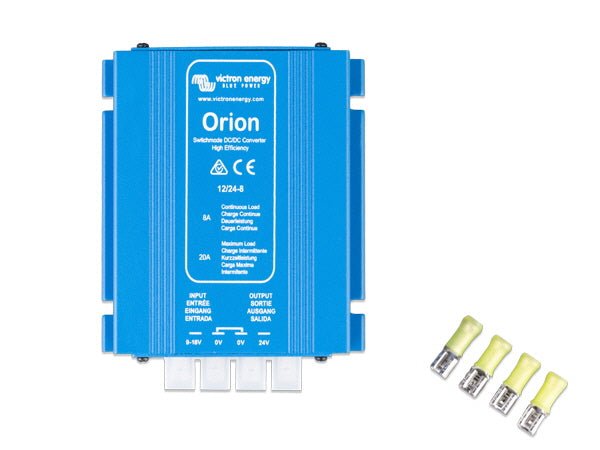

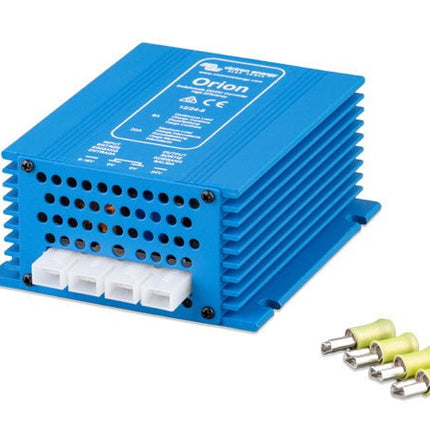

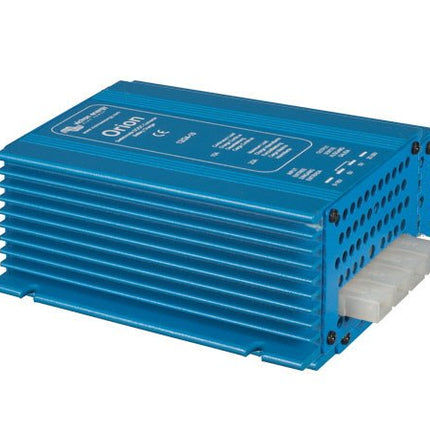

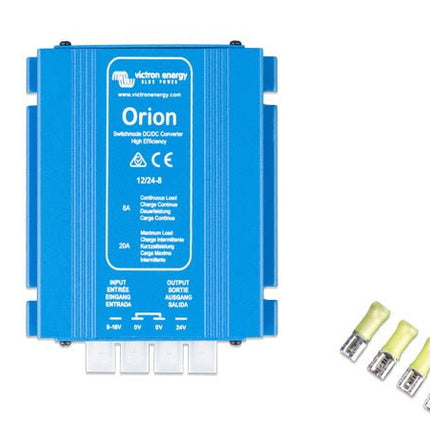

Features of the - Victron Energy Orion 12/24-8A DC-DC IP20 - Non Isolated
Models: 12 to 24 Volt
Input voltage range (V): 9-18
Output voltage (V): 20-30 Adjustable
Continuous output current (A): 8
Dimensions hxwxd in mm: 45 x 90 x 115
Weight kg: 0.4
Remote on-off connector.
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).
All models with adjustable output can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models with adjustable output can be paralleled to increase output current Up to five units can be connected in parallel.
For more info Please Click The Link Below:
Orion 12/24-8A DC-DC IP20 - Non Isolated Additional Information
