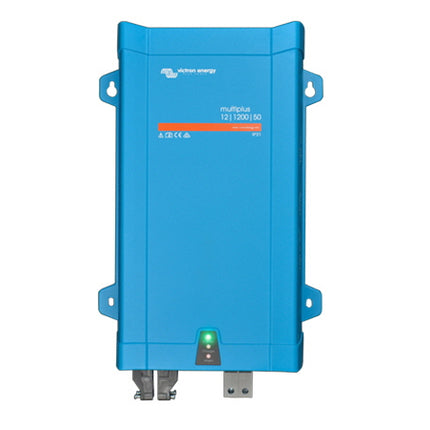

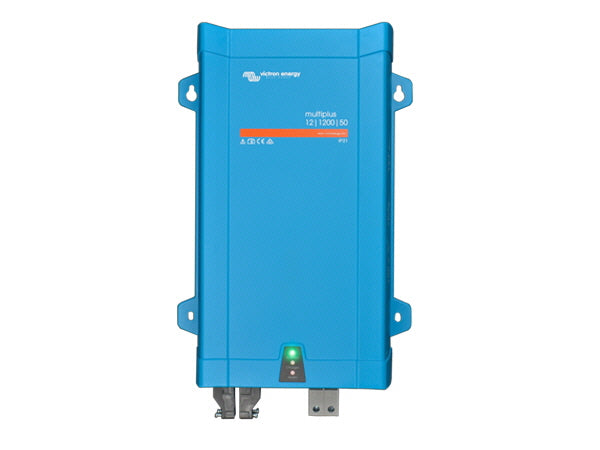

The Victron MultiPlus is a powerful true sine wave inverter, a sophisticated battery charger and a high-speed AC transfer switch in a single compact enclosure.
Description
PowerControl - Dealing with limited generator, shore side or grid power: With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.
PowerAssist - Boosting the capacity of shore or generator power: Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.
High start-up power: Needed to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools.
Search Mode: When Search Mode is ‘on’, the power consumption of the inverter in no-load operation is decreased by approx. 70%. In this mode the Multi, when operating in inverter mode, is switched off in case of no load or very low load, and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again.
Programmable relay: By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energize in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low).
Specifications:
- Output waveform: pure sine wave inverter
- Continuous Output Power: 1200VA - 1000W
- Peak Power: 2400W
- DC Input: 9.5-17V
- AC Input: 187-265VAC 45-65HZ
- Max Charge Current: 50A
- Zero-Load Power: 10W
- AC Transfer Relay: 16A
- Maximum Efficiency: 93%
- Dimension (L*W*H): 406*250*100mm
- Weight: 8.2Kg
- Warranty: 5 years
For more info, please download this link>> Pdf
