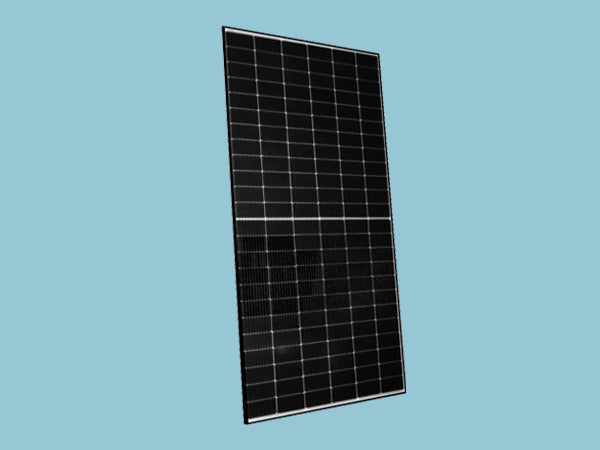

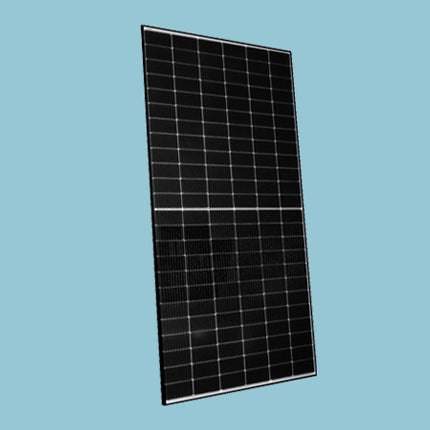

Sunshine Solar 400W Solar PV Module Mono Perc - Black Frame - Half Cell

Sunshine Solar 400W Solar PV Module Mono Perc - Black Frame - Half Cell

Regular price £178.20
Regular price Sale price £178.20
Sale Sold out
Tax included. Shipping calculated at checkout.

Our stock monocrystalline 400W solar module is MCS-approved making it suitable for grid-tied PV arrays and eligible for the feed-in tariff. These large solar panels can also be used for battery charging in off-grid systems where larger power requirements are needed typically liveaboard boats, power failure backup systems, static caravans, off-grid home offices, etc.

 Suntech 400 Watt Ultra V Mini PERC with Black Frame

Tempered glass with an anodised aluminum alloy frame, all black high-performance solar panel. The half-cell technology enables the module to give a higher power output whilst reducing the system cost. With the use of the latest cell connection technology, the length of the current conductors on the solar cell is reduced by 50% in the transverse direction, which also effectively reduces the internal resistance of the solar cell. A smaller distance between the cell connectors significantly reduces the risk of losses through micro cracks and thus increases the reliability of the solar system.


  • High module conversion efficiency
  • Front cover: tempered glass, 3.2 mm
  • Excellent weak light performance - More power output in weak light conditions, such as haze, cloudy, and morning
  • High PID resistance - Advanced cell technology and qualified materials lead to high resistance to PID
  • Lower operating temperature - Lower operating temperature and temperature coefficient increases the power output
  • Withstanding harsh environment - Reliable quality leads to better sustainability even in harsh environments like deserts, farm, and coastline
  • Extended load tests - Module certified for maximum static test load on the front (6000 Pascal) and maximum static test load on the rear (3800 Pascal) Suntech current sorting process - Up to 2 % power loss caused by current mismatch could be diminished by current sorting technique to maximize system power output
  • IP68-rated junction box
  • Standard 15-year product warranty; 25-year performance warranty


  • Power Class: 400W
  • Maximum Power Current: (Ipm): 12.83A
  • Maximum Power Voltage: (Vpm): 31.18V
  • Short Circuit Current (Isc): 13.73A
  • Power Output Tolerance (Pmax): 0/+5
  • Open Circuit Voltage (Voc): 37.04V
  • Nominal Operating Cell Temp. (NOCT): -40 to +85°C
  • Maximum System Voltage: 1500V DC
  • Watts/ m²: 199.5
  • Cells: 108 Half Cells (6X18 half cells)
  • Frame Colour: Black
  • Module Efficiency (%): 20.5
  • Connector Type: MC4-EVO2 Compatible
  • Length (mm): 1,724
  • Width (mm): 1,134
  • Thickness (mm): 35
  • Product Weight (Kg): 22

Munich Re Insurance Backed Warranty


In the event that Suntech is not able to honor the warranty, the policy is seamlessly transferred to the registered buyer, ensuring that warranty claims remain covered.

PV Warranty Insurance is designed to increase confidence in the long-term performance and financial attractiveness of PV projects. Munich Re’s PV

Warranty Insurance is the established market standard. All Suntech panels come with the additional Munich Re Warranty, giving you complete peace of mind. What it covers:

The Warranty Risk of Solar:

  • Insolvency of the manufacturer
  • Faulty manufacturing
  • Material defects
  • Excessive material aging

Munich Re’s PV Warranty Insurance gives you:

  • Significant risk transfer: high and extendable insurance protection over 25 years
  • Reliable loss payout: no first-come, first-served situations in claims scenarios
  • Individualised Buyer’s Declaration Letter issued by Munich Re
