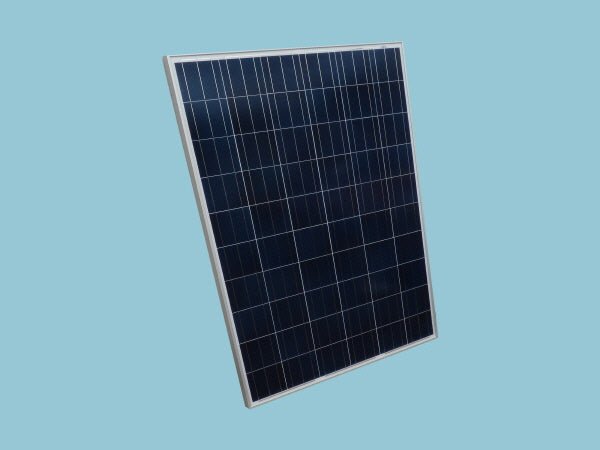

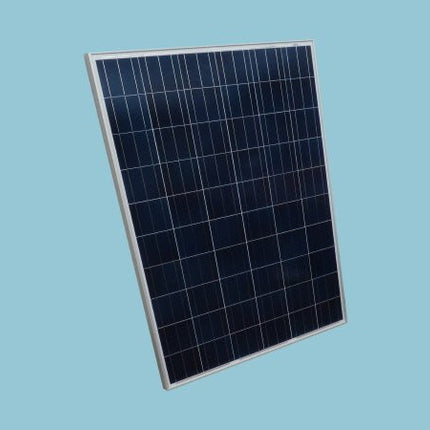

Sunshine Solar Panels 200W 12V Crystalline

Sunshine Solar Panels 200W 12V Crystalline

Regular price £146.82
Regular price Sale price £146.82
Sale Sold out
Tax included. Shipping calculated at checkout.

One of our 200W solar panel can be used for 12V or 24V battery charging.  Applications include: motorhome, static caravans, mobile homes, live aboard boats where larger power requirements are generally required.

With a Sunshine 110W solar panel, you could expect to generate around 31 amps per day when used in conjunction with a PWM solar charge controller and around 37 amps per day with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.

With an RV130S solar panel, you could expect to generate around 36 amps per day when used in conjunction with a PWM solar charge controller and around 43 amps per day with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.


Specifications

  • Product Code. RV130S
  • Max Power. 130W ± 3%
  • Max Power Voltage. 18V
  • Max Power Current. 7.2A
  • Open Circuit Voltage. 21.6V
  • Short Circuit Current. 7.8A
  • Normal Operating Cell Temp. -45 to 80°C
  • Max System Voltage. DC1000V
  • Weight. 11 Kg
  • Dimensions. 1513 x 528 x 64mm

Features

  • Integrated Streamline Aluminium Roof Mounts
  • 900mm of 4mm single-core insulated cable, fitted with MC Type 4 connectors
  • High-Performance Monocrystalline Cells
  • Factory-fitted aluminium frame with pre-drilled mounting holes
  • Multiple pieces can be connected to acquire higher power
  • Suitable for charging all types of 12-volt batteries
  • Fitted with bypass diodes to minimize the effect of shading
  • Completely weatherproof

Guaranteed Performance

  • 5 Years Manufacturers Warranty
  • 10 Years Warranty 90% Power Output
  • 20 Years Warranty 80% Power Output

Suitable Solar Charge Controllers

  • PWM Solar Controller 10A - 12/24V
  • Dual Battery Controller 10A - 12/24V
  • MPPT Solar Controller 10A - 12/24V (10% - 30% more power generation)
  • Dual MPPT Solar Controller 10A - 12/24V (10% - 30% more power generation)


For the best performance, we would recommend 4mm single core cable is used the same as the existing cable already attached to the solar panel junction box. The most efficient method of extending the existing cable is by using 4mm single-core cable fitted with a pair of compatible MC Type 4 Solar Connectors.

Please view this Document for more info
