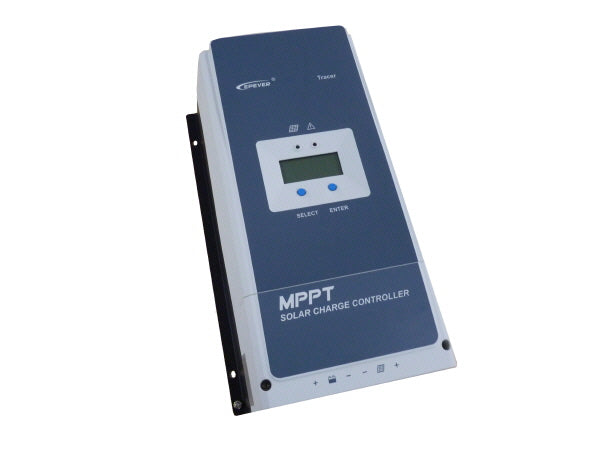

MPPT Controller 40A - 100V 12/24V

Description

The Tracer-AN(10A~40A) series charge controller adopts MPPT(Maximum Power Point Tracking) technology. In any situation, it can track the maximum power point (MPP) of the solar array and obtain the maximum solar energy rapidly and accurately. It can generate up to 30% more power compared to PWM charge controllers. This series can accept max.100V Voc and work with the solar panels which are designed for on-grid applications. Settings and system status are accessible through the multifunction LCD display.

Features

  • MPPT tracking efficiency above 99.5%
  • Maximum charge conversion efficiency as high as 98%
  • Support lead-acid and lithium-ion batteries
  • Multiple load work modes
  • Charging power and current limitation function
  • High-temperature charging power derating function
  • Standard Modbus communication protocol with RS485 interface
  • Real-time energy statistics function


Specifications

  • Nominal System Voltage: 12/24VDC/Auto
  • Battery Input Voltage Range: 8V～32V
  • Battery Type: Lead-Acid (Sealed/Gel/Flooded) Lithium (LiFePO4 (NiCoMn) O2)/User
  • Max Rated Charging Current: 40 amps
  • Max Rated Charge Power: 520W/12V - 1040W/24V
  • Max PV Input Voltage: 100Vdc
  • Max. conversion efficiency: 98.6%
  • Tracking efficiency: 99.5%
  • Self Consumption: 12mA
  • Grounding: Common negative grounding
  • Ambient temperature range: -25℃～+60℃ (Derate above 45℃)
  • Enclosure: IP20

Dimensions: 252 × 180 × 63 mm

Weight: 1.65kg

Please view this Doc for more info

Read more

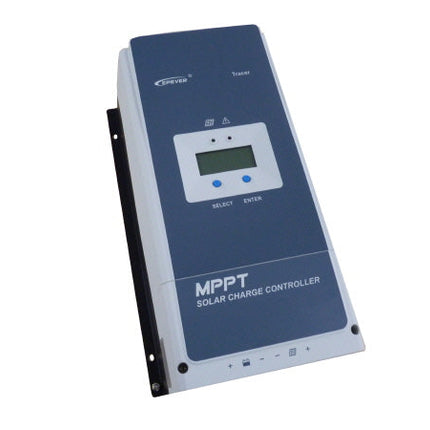

MPPT Controller 40A - 100V 12/24V
