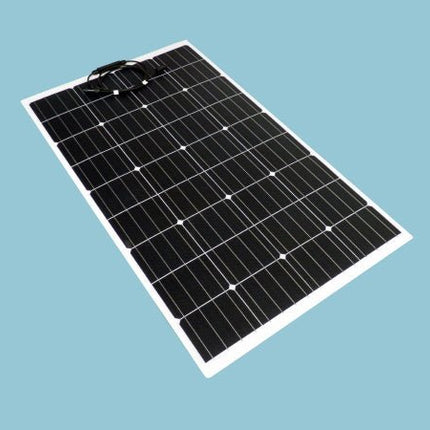

120W 12V Sunshine Solar Flexible ETFE Range

Description

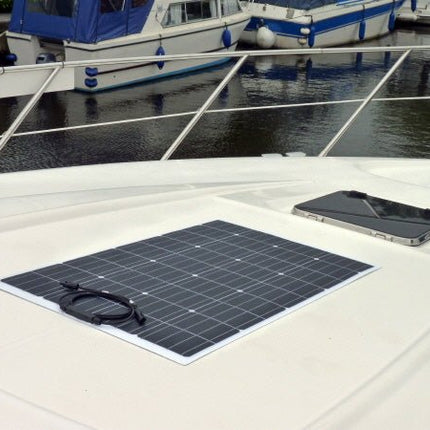

This Sunshine Solar Flexible ETFE 100W 12V boasts ultra-pure silicon delivering optimal power conversion. The aluminum backing adds massive strength, preventing corrosion and helping with heat dissipation. Thin, light, and when fitted to the roof of a caravan or motorhome very aerodynamic.

Lightweight design combined with high-efficiency cells and solar panel flexibility makes our latest ETFE range also perfect for marine use and many more applications where a rigid framed solar panel is not an option.


Description

With a Sunshine Flexible ETFE 120W 12V solar panel, you could expect to generate around 34 amps per day when used in conjunction with a PWM solar charge controller and 40 amps per day when used with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.



Solar Panel Specifications

  • Maximum Power (Pmax): 120W
  • Maximum Power Current (Ipm): 6.7A
  • Maximum Power Voltage (Vpm): 18V
  • Short Circuit Current (Isc): 7.2
  • Open Circuit Voltage (Voc): 21.6V
  • Nominal Operating Cell Temp. (NOCT): -45 to 80°C
  • Maximum System Voltage: DC600V
  • Maximum Series Fuse: 9A
  • Size: 1030 x 665 x 4mm
  • Weight:.3.65 kg

 Features

  • 3° flexibility or 3cm per 1m of panel length
  • ETFE rough scratch-resistant surface which can be walked on in deck shoes.
  • Aluminum Substrate
  • Highly efficient monocrystalline cells
  • Can be conveniently placed on slightly curved solid surfaces
  • Can be easily bonded using fixing adhesive (no need for drilling)
  • 4mm Single Core Cable fitted with type MC4 Connectors (length 900mm)
  • One-Year Manufacturers Warranty


Please Click PDF to View More Info On The Installation and Maintenance Of This Product.

120W 12V Sunshine Solar Flexible ETFE Range

Product form

£240.63 Incl. VAT

This Sunshine Solar Flexible ETFE 100W 12V boasts ultra-pure silicon delivering optimal power conversion. The aluminum backing adds massive strength, preventing...

Free pickup in our shop(s)

SKU: SFB120

2 in stock

      Description


      This Sunshine Solar Flexible ETFE 100W 12V boasts ultra-pure silicon delivering optimal power conversion. The aluminum backing adds massive strength, preventing corrosion and helping with heat dissipation. Thin, light, and when fitted to the roof of a caravan or motorhome very aerodynamic.

      Lightweight design combined with high-efficiency cells and solar panel flexibility makes our latest ETFE range also perfect for marine use and many more applications where a rigid framed solar panel is not an option.


      Description

      With a Sunshine Flexible ETFE 120W 12V solar panel, you could expect to generate around 34 amps per day when used in conjunction with a PWM solar charge controller and 40 amps per day when used with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.



      Solar Panel Specifications

      • Maximum Power (Pmax): 120W
      • Maximum Power Current (Ipm): 6.7A
      • Maximum Power Voltage (Vpm): 18V
      • Short Circuit Current (Isc): 7.2
      • Open Circuit Voltage (Voc): 21.6V
      • Nominal Operating Cell Temp. (NOCT): -45 to 80°C
      • Maximum System Voltage: DC600V
      • Maximum Series Fuse: 9A
      • Size: 1030 x 665 x 4mm
      • Weight:.3.65 kg

       Features

      • 3° flexibility or 3cm per 1m of panel length
      • ETFE rough scratch-resistant surface which can be walked on in deck shoes.
      • Aluminum Substrate
      • Highly efficient monocrystalline cells
      • Can be conveniently placed on slightly curved solid surfaces
      • Can be easily bonded using fixing adhesive (no need for drilling)
      • 4mm Single Core Cable fitted with type MC4 Connectors (length 900mm)
      • One-Year Manufacturers Warranty


      Please Click PDF to View More Info On The Installation and Maintenance Of This Product.
