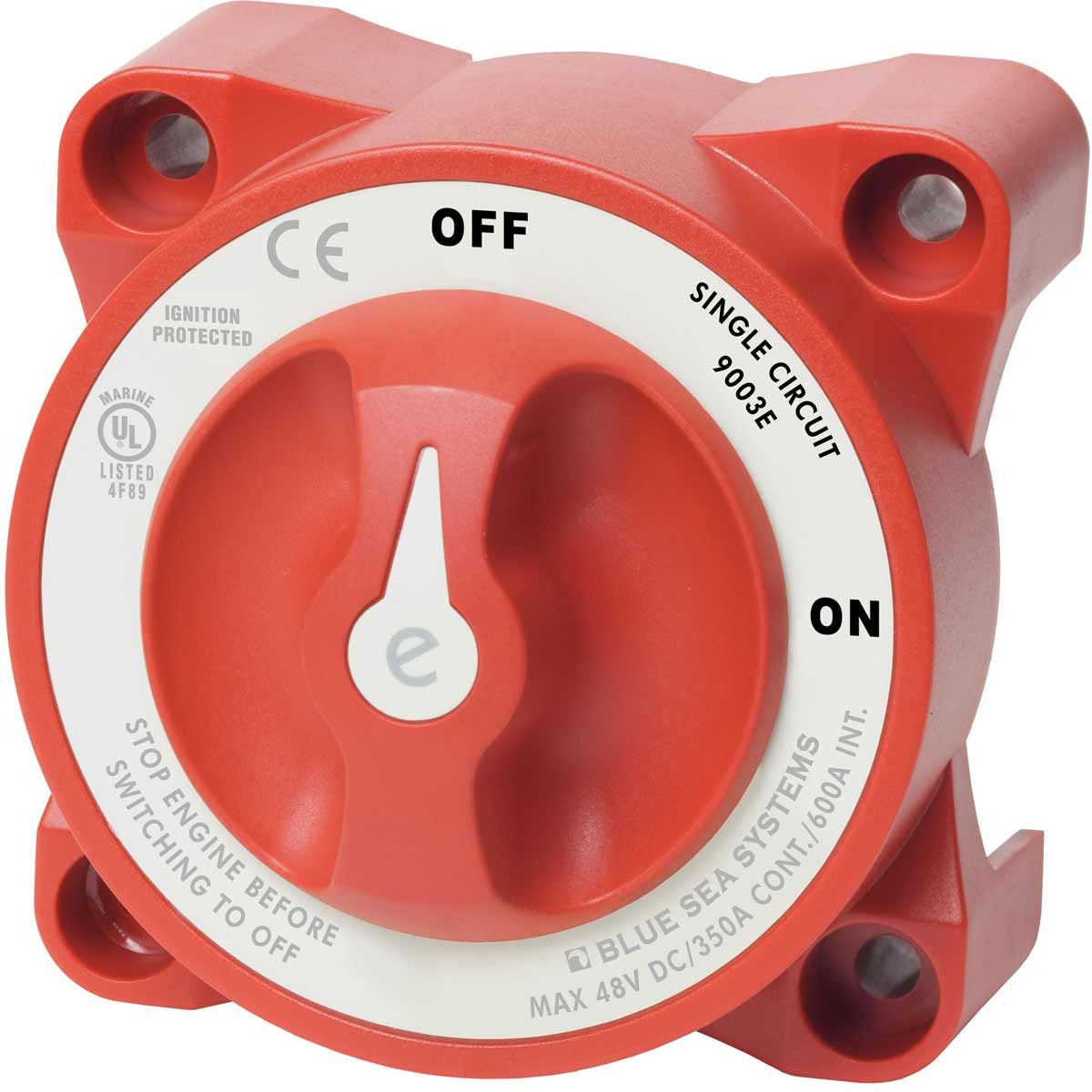

E-SERIES BATTERY SWITCH
350 Ampere continuous rating for inboard gasoline and diesel engines.

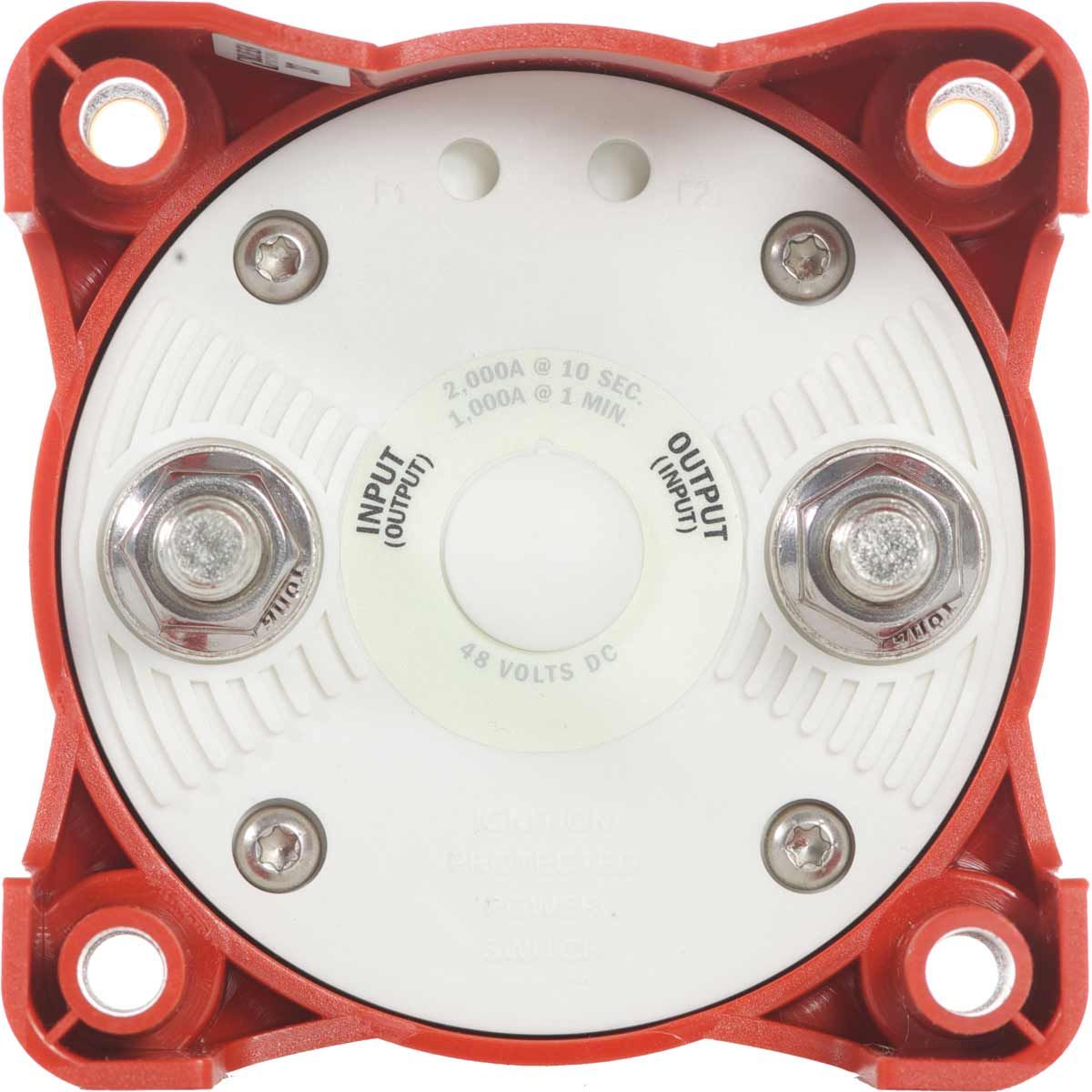

Tin-plated copper studs for maximum conductivity and corrosion resistance
Studs accept 3/8" (M10) ring terminals
7/8" (22mm) stud length accepts multiple cable terminals
One-piece terminal stud design never loosens over time

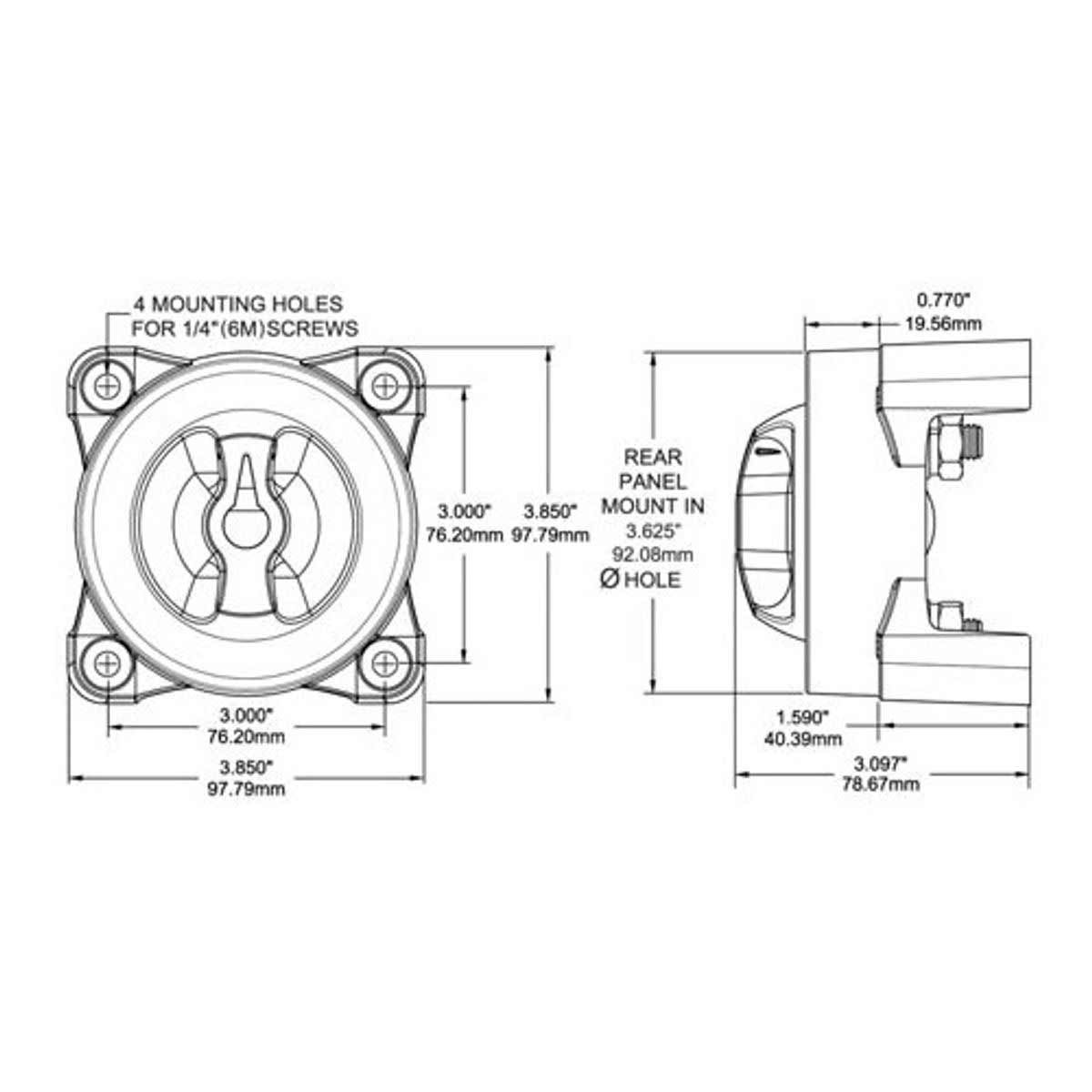

Case design allows surface or rear panel mounting options
Label with international legends
Tactile indicator conveys knob position by feel
Specifications:
Terminal Stud Size: 3/8" 16 (M10)
Terminal Stud Torque: 140 in-lbs
Mounting Holes: Accepts M6 screw
Cable Size to Meet Ratings: 4/0 AWG (95mm2)
Cable Clearance: 1.10" (28mm)
SPECS:
| IP Rating |
IP66 |
| Brand |
Blue Sea Systems |
| Voltage Description |
48V DC Maximum |
| Amps Description |
Continuous: 350A, Intermittent 5 minutes: 600A, Cranking 10 seconds: 2000A |
| Approvals |
CE marked, ISO 8846, UL Listed UL 1107 electric power switches, Meets ABYC requirements, Meets UL1500 & SAE J1171 external ignition protection requirements |
