420W - 12V Off Grid Solar Kit - Power Inverter
420W - 12V Off Grid Solar Kit - Power Inverter
Couldn't load pickup availability
Our stand alone 420W off-grid solar power kit would typically be used where higher power generation is needed. Applications for our off-grid solar systems include, remote location homes in the UK and abroad, home office, summer houses, workshops, static caravans, stables and outbuildings. Each kit has been designed for a quick and easy install and include all cables and connectors along with a 1500W Sunshine Pure Sine Wave - Power Inverter as standard. (upgradeable for additional cost)
Peimar panels offer the quality of one of the few European brands, high efficiency, pleasant design and one of the best warranty on the market. You can find them fitted all over the world making the customers highly satisfied.
The 108 cells Half Cut module combines the high production efficiency of the half cell technology with an excellent quality / price ratio. The half-cell configuration improves the electrical distribution inside the panel to increase the yield of the product. For these reasons, the Half Cell Line is suitable not only for industrial installations but also for residential and commercial installations.
10 years of presence in the market makes Peimar one of the leading European solar companies, offering experience, R&D and technical support. Based in Italy, close to Milan in the most important industrial regions of the country the company motto is: "Our energy for a better future".
Discover what happens when innovation meets technology.

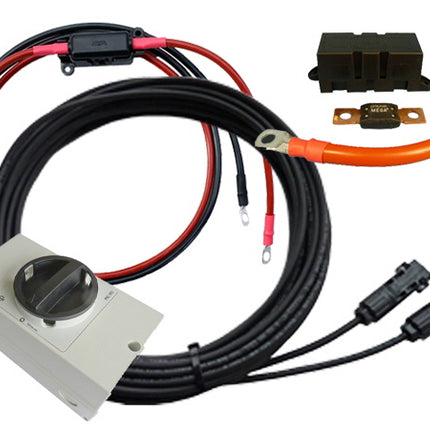

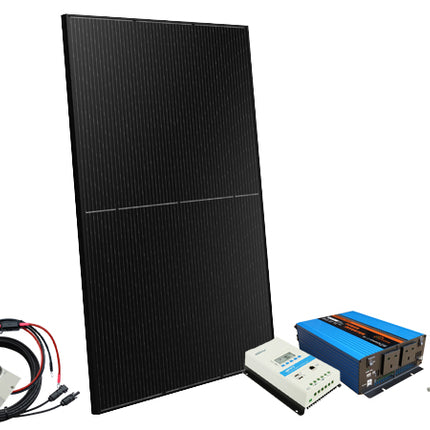

The 420W Off Grid Solar Kit comes complete with all the essential cables, switches plus a 1500W 12V pure sine wave power inverter as standard, this can be upgraded for an additional cost.
The solar power is harnessed with a high efficient, Italian Made Peimar solar panel with an impressive 30 year linear power warranty this is the range to fit and forget. Using the power of the sun and a state of art MPPT controller that intelligently regulates the working voltage of the solar panel this system can deliver approximately 140Ah on a 12V system per day during the summer months.
Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter.
Kit Performance - Summertime
MPPT Controller: 12V System - 140Ah per day
Please Note: This kit requires battery/batteries (not included), if you need help choosing a suitable battery system please contact our Technical Support who will be more than happy to assist and answer any questions you have.
Solar Panel Specifications
- Power Class: 420W
- Maximum Power Current: (Ipm): 13.17A
- Maximum Power Voltage: (Vpm): 31.89V
- Short Circuit Current (Isc): 13.9A
- Power Output Tolerance (Pmax): 0/+5
- Open Circuit Voltage (Voc): 37.87V
- Nominal Operating Cell Temp. (NOCT): -40 to +85°C
- Maximum System Voltage: 1500V DC
- Cells: 108 M10 Half Cells PERC
- Frame Colour: Black
- Module Efficiency (%): 22.51
- Connector Type: MC4 or compatible connector
- Length (mm): 1722
- Width (mm): 1134
- Thickness (mm): 30
- Product Weight (Kg): 21.5
Guaranteed Performance
- 30 Year Linear Power Warranty
- 25-Year Product Warranty
- Engineered in Italy
For more info please view the Document below
