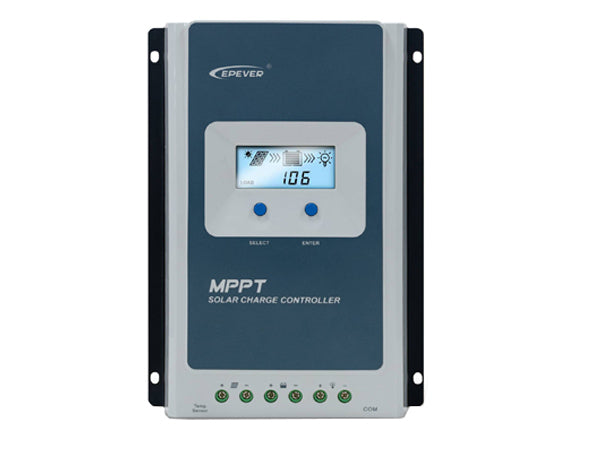

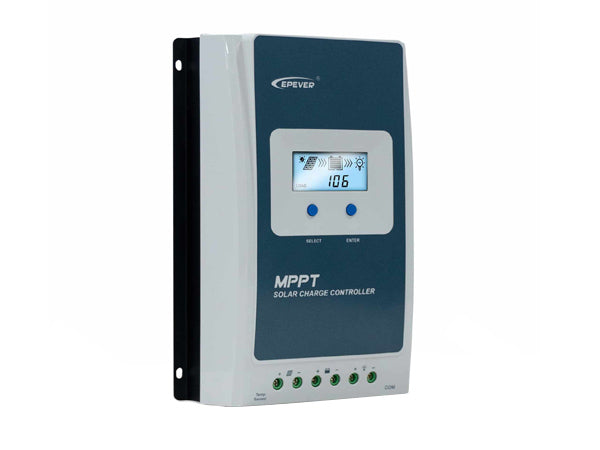

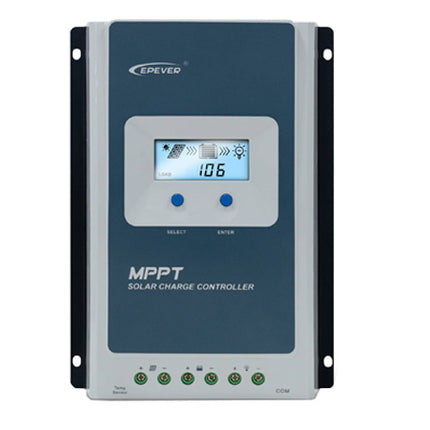

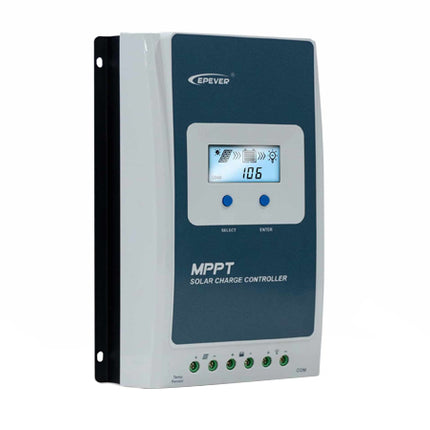

Features of the - 30A-100V MPPT Charge Controller - Tracer Series
- MPPT tracking efficiency above 99.5%
- Maximum charge conversion efficiency as high as 98%
- Support lead-acid and lithium-ion batteries
- Multiple load work modes
- Charging power and current limitation function
- High-temperature charging power derating function
- Standard Modbus communication protocol with RS485 interface
- Real-time energy statistics function
Specifications
- Nominal System Voltage: 12/24VDC/Auto
- Battery Input Voltage Range: 8V～32V
- Battery Type: Lead-Acid (Sealed/Gel/Flooded) Lithium (LiFePO4 (NiCoMn) O2)/User
- Max Rated Charging Current: 30 amps
- Max Rated Charge Power: 390W/12V - 780W/24V
- Max PV Input Voltage: 100Vdc
- Max. conversion efficiency: 98.6%
- Tracking efficiency: 99.5%
- Self Consumption: 12mA
- Grounding: Common negative grounding
- Ambient temperature range: -25℃～+60℃ (Derate above 45℃)
- Enclosure: IP20
Dimensions: 228 × 164 × 55 mm
Weight: 1.26kg
Please Download the link below for more info
