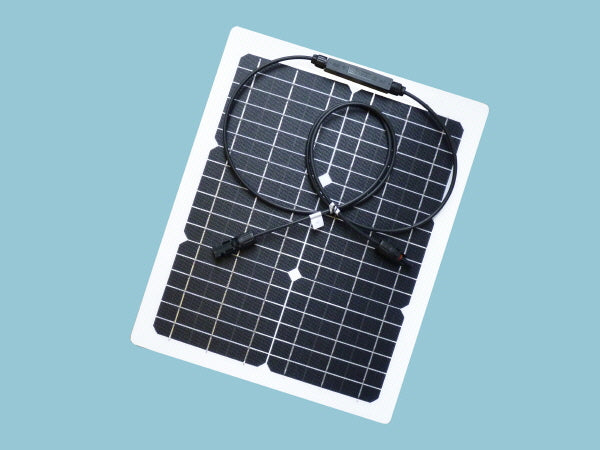

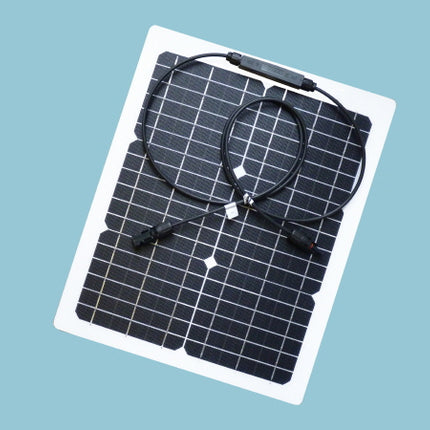

With a Sunshine Flexible ETFE 20W 12V solar panel you could expect to generate around 5.5 amps per day when used in conjunction with a PWM solar charge controller and 7 amps per day when used with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.
Solar Panel Specifications
- Maximum Power (Pmax): 20W
- Maximum Power Current (Ipm): 1.11A
- Maximum Power Voltage (Vpm): 18V
- Short Circuit Current (Isc): 1.21A
- Open Circuit Voltage (Voc): 21.6V
- Nominal Operating Cell Temp. (NOCT): -45 to 80°C
- Maximum System Voltage: DC600V
- Maximum Series Fuse: 10A
- Size: 430 x 365 x 4mm
- Weight: 700g
Features
- 3° flexibility or 3cm per 1m of panel length
- ETFE rough scratch resistant surface which can be walked on in deck shoes.
- Aluminium Substrate
- Highly efficient monocrystalline cells
- Can be conveniently placed on slightly curved solid surfaces
- Can be easily bonded using fixing adhesive (no need for drilling)
- 4mm Single Core Cable fitted with type MC4 Connectors (length 900mm)
- One Year Manufacturers Warranty
Please view Docs For More Info
