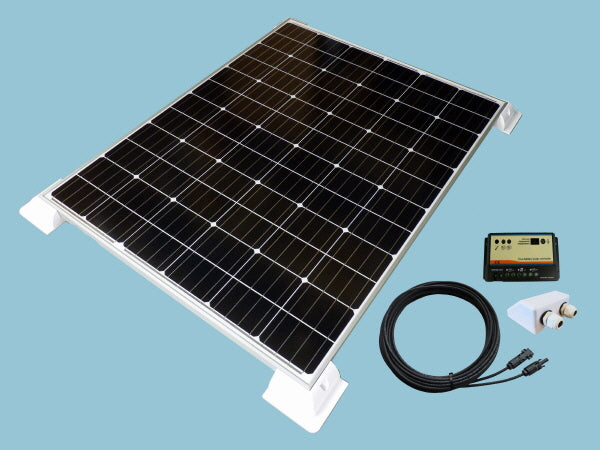

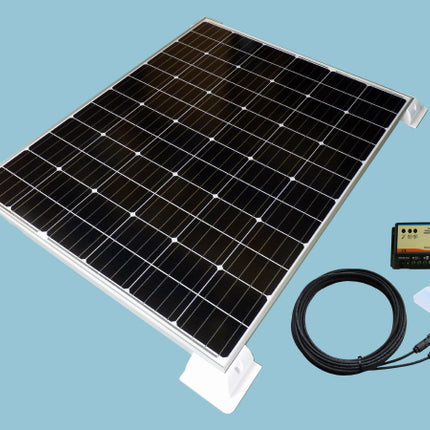

This 200W Sunshine Solar Power Caravan & Motorhome Kit offers outstanding performance and great value for money. With this 200 Watt solar power kit you could expect to generate around 56 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats etc.
his 200W Sunshine Solar Caravan Motorhome Kit includes an MPPT single battery charge controller for one battery bank as standard with the option to upgrade to an MPPT dual battery controller for optimised battery charging of two battery banks.
Solar Panel Specifications
- High Efficiency Monocrystalline Cells
- Maximum Power (Pmax): 200W
- Maximum Power Current (Ipm): 11.1A
- Maximum Power Voltage (Vpm): 18V
- Short Circuit Current (Isc): 11.9A
- Open Circuit Voltage (Voc): 21.6V
- Nominal Operating Cell Temp. (NOCT): -45 to 80°C
- Maximum System Voltage: DC1000V
- Maximum Series Fuse: 9A
- Size: 1335 x 986 x 35mm
- Weight: 14kg
Kit Contents
- 1 x Sunshine Solar Panels 200W 12V
- 1 x MPPT Single Battery Controller 20A - 12V/24V (Upgrade available)
- 1 x 6m Extension Cable & Connectors
- 2 x Set Of Plastic Corner Mounts - White or Black
- 2 x Sets Of Plastic Side Mounts - White or Black
- 1 x ABS Cable Entry Cover
Solar Performance Guarantee
- 5 Years Manufacturers Warranty
- 10 Years Warranty 90% Power Output
- 20 Years Warranty 80% Power Output
