With the SRG180 solar panel you can generate around 43 amps per day when used in conjunction with a PWM solar charge controller and around 60 amps per day with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.
Specifications
- Product Code. SRG180
- Max Power. 180W ± 3%
- Max Power Voltage. 20.9V
- Max Power Current. 8.62A
- Open Circuit Voltage. 24.5V
- Short Circuit Current. 9.04A
- Normal Operating Cell Temp. -45 to 80°C
- Max System Voltage. DC1000V
- Dimensions. 1280 x 770 x 55mm
- Weight. 11.6kg
Features
- Integrated Streamline Aluminium Roof Mounts

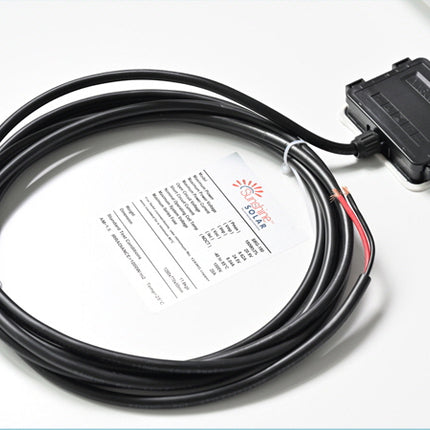

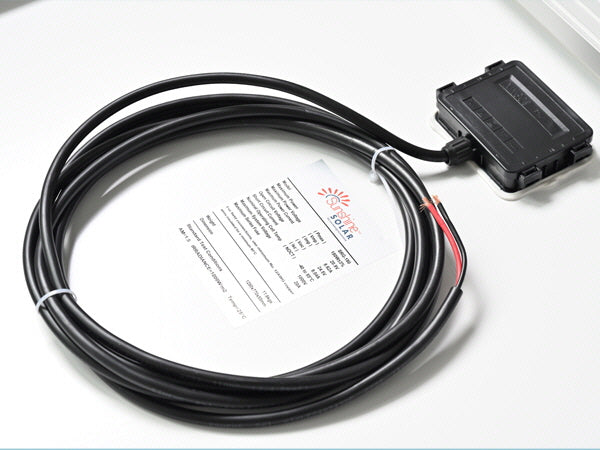

- 5m of twin-core insulated cable
- High Performance Monocrystalline Cells
- Factory fitted aluminium frame
- Multiple pieces can be connected to acquire higher power
- Suitable for charging all types of 12 volt batteries
- Fitted with bypass diodes to minimise the effect of shading
- Completely weatherproof
Guaranteed Performance
- 10 Years Warranty
- 25 Years Service Life
Suitable Solar Charge Controllers
- PWM Solar Controller 20A - 12/24V
- Dual Battery Controller 20A - 12/24V
- MPPT Solar Controller 20A - 12/24V (10% - 30% more power generation)
- Dual MPPT Solar Controller 20A - 12/24V (10% - 30% more power generation)
Please view Doc For More Info
