Description

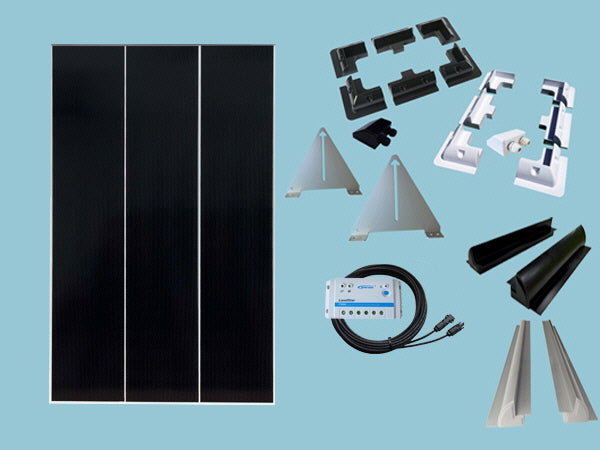

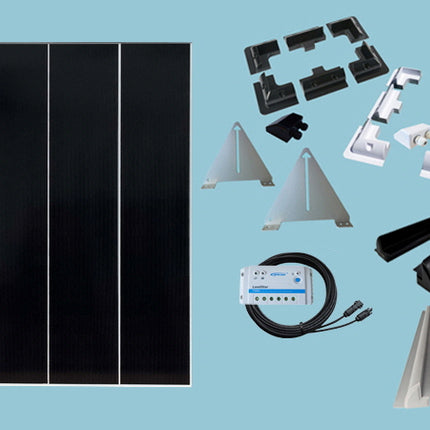

This 170W Sunshine Solar Power Caravan & Motorhome Kit offers outstanding performance and great value for money. This kit features a Slimline Solar Panel so that even with the narrowest of spaces you can still accommodate our most popular 170W Solar Panel. With the 170 Watt solar power kit you could expect to generate around 42 amps per day during the summer months supplementing the 12V leisure battery power in caravans, motorhomes, boats etc.
Specifications
- Maximum Power (Pmax): 170W
- Maximum Power Current (Ipm): 8.33A
- Maximum Power Voltage (Vpm): 20.41V
- Short Circuit Current (Isc): 8.83
- Open Circuit Voltage (Voc): 24.26V
- Nominal Operating Cell Temp. (NOCT): -45 to 80°C
- Maximum System Voltage: DC500V
- Maximum Series Fuse: 9A
- Size: 670 x 1230 x 30mm
- Weight: 8.4kg
Features
- Shingle-technology for increased stability and size reduction
- 700mm of 4mm single-core insulated cable, fitted with MC Type 4 connectors
- High Performance Monocrystalline Cells
- Factory fitted aluminium frame with pre-drilled mounting holes
- Multiple pieces can be connected to acquire higher power
- Suitable for charging all types of 12 volt batteries
- Fitted with bypass diodes to minimise the effect of shading
- Completely weatherproof
Guaranteed Performance
- 5 Years Manufacturers Warranty
- 10 Years Warranty 90% Power Output
- 25 Years Warranty 80% Power Output
Data Sheet
